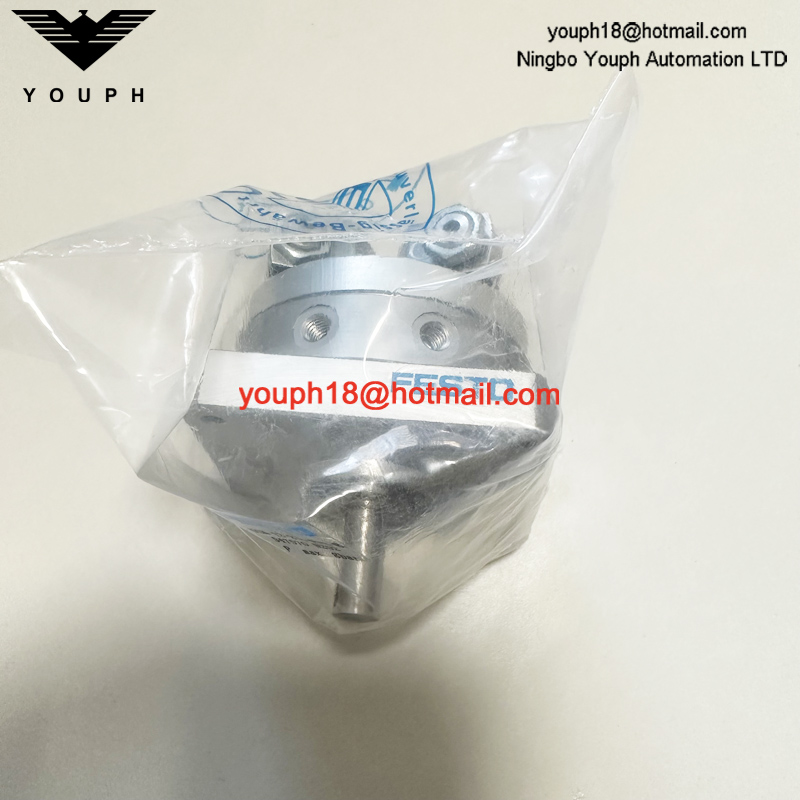

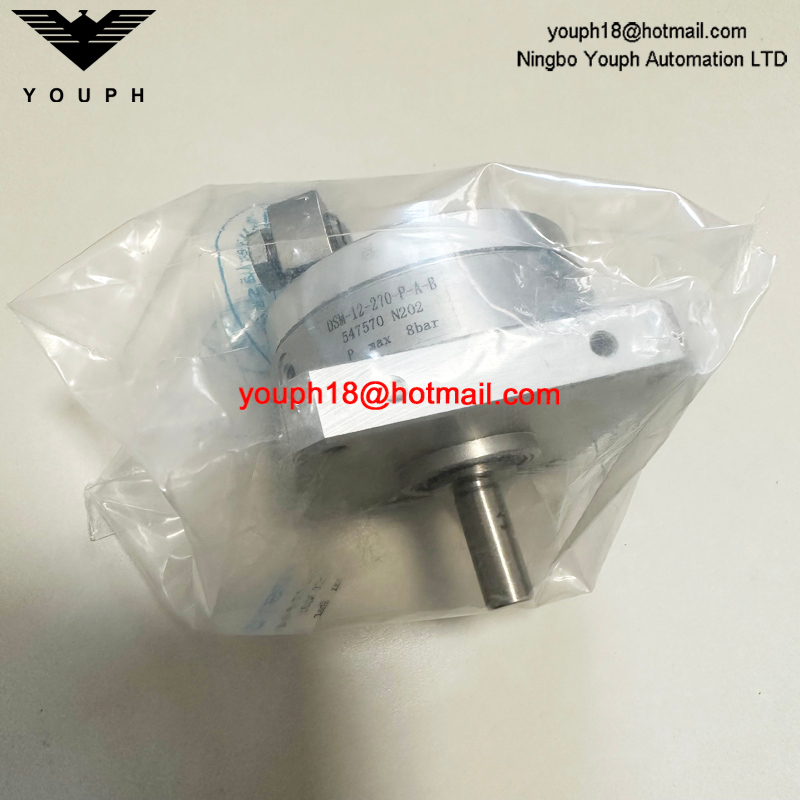

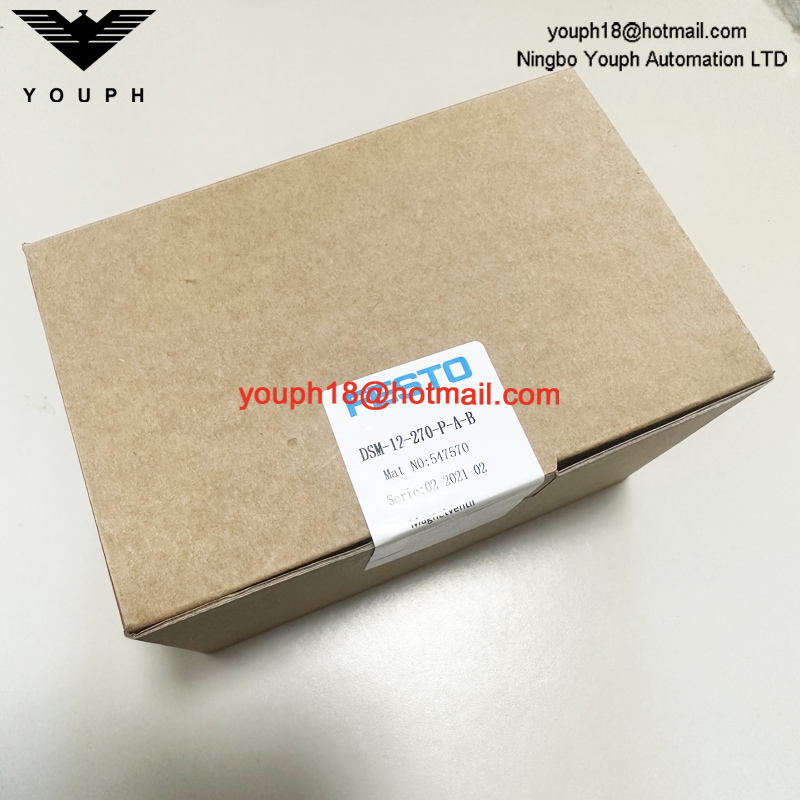

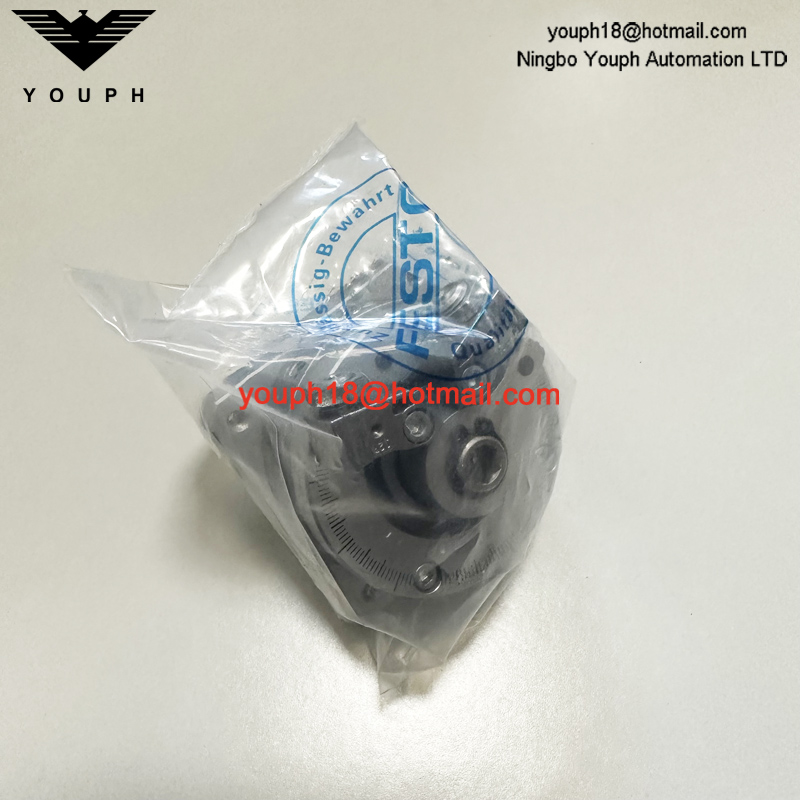

Festo DSM-12-270-P-A-B 547570 547575 547576 547577 DSM Semi-rotary drive

Festo DSM-12-270-P-A-B 547570 547575 547576 547577 DSM Semi-rotary drive

Technical DataDSM Semi-rotary drive.pdf

Size: 12

Cushioning angle: 1.8 deg

Rotation angle adjustment range: 0 deg ... 270 deg

Swivel angle: 0 deg ... 270 deg

Cushioning: Elastic cushioning rings/plates at both ends

Mounting position: optional

Fine adjustment: -6 deg

Mode of operation: Double-acting

Design: Vane

Position detection: Via proximity switch

Symbol: 00991265

Operating pressure: 0.2 MPa ... 1 MPa

Operating pressure: 2 bar ... 10 bar

Max. swivel frequency at 0.6 MPa (6 bar, 87 psi): 2 Hz

Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC: 0 - No corrosion stress

LABS (PWIS) conformity: VDMA24364-B1/B2-L

Cleanroom class: Class 6 according to ISO 14644-1

Ambient temperature: -10 °C ... 60 °C

Max. axial force: 18 N

Max. radial force: 45 N

Theoretical torque at 0.6 MPa (6 bar, 87 psi): 1.25 Nm

Permissible mass moment of inertia: 0.005 kgm²

Product weight: 275 g

Type of mounting: Via female thread

Pneumatic connection: M5

Note on materials: RoHS-compliant

Material drive shaft: Steel, Nickel-plated

Material seals: TPE-U(PU)

Material housing: Wrought aluminium alloy

Spigot shaft Order Code

Characteristics	Swivel angle	Size	Part no.	Type
Without cushioning components	270°	12	547591	DSM-12-270-A-B
		16	547592	DSM-16-270-A-B
		25	547593	DSM-25-270-A-B
		32	547594	DSM-32-270-A-B
		40	547595	DSM-40-270-A-B
		63	552083	DSM-63-270-A-B
P With elastic cushioning   components	270°	12	547570	DSM-12-270-P-A-B
		16	547574	DSM-16-270-P-A-B
		25	547578	DSM-25-270-P-A-B
		32	547582	DSM-32-270-P-A-B
		40	547586	DSM-40-270-P-A-B
		63	552079	DSM-63-270-P-A-B
P1 With adjustable, elastic   cushioning     components	246°	12	566203	DSM-12-270-P1-A-B
		16	566205	DSM-16-270-P1-A-B
		25	566207	DSM-25-270-P1-A-B
		32	566209	DSM-32-270-P1-A-B
	240°	40	566211	DSM-40- 270-P1-A-B
		63	566213	DSM-63-270-P1-A-B
CC With shock absorber	246°	12	547572	DSM-12-270-CC-A-B
		16	547576	DSM-16-270-CC-A-B
		25	547580	DSM-25-270-CC-A-B
		32	547584	DSM-32-270-CC-A-B
	240°	40	547588	DSM-40-270-CC-A-B
		63	552081	DSM-63-270-CC-A-B

Flange shaft Order Code

Characteristics	Swivel angle	Size [mm]	Part no.	Type
Without cushioning components	270°	12	547596	DSM-12-270-FW-A-B
		16	547597	DSM-16-270-FW-A-B
		25	547598	DSM-25-270-FW-A-B
		32	547599	DSM-32-270-FW-A-B
		40	547600	DSM-40-270-FW-A-B
		63	552084	DSM-63-270-FW-A-B
P With elastic cushioning   components	270°	12	547571	DSM-12-270-P-FW-A-B
		16	547575	DSM-16-270-P-FW-A-B
		25	547579	DSM-25-270-P-FW-A-B
		32	547583	DSM-32-270-P-FW-A-B
		40	547587	DSM-40-270-P-FW-A-B
		63	552080	DSM-63-270-P-FW-A-B
P1 With adjustable, elastic   cushioning components	246°	12	566204	DSM-12-270-P1-FW-A-B
		16	566206	DSM-16-270-P1-FW-A-B
		25	566208	DSM-25-270-P1-FW-A-B
		32	566210	DSM-32-270-P1-FW-A-B
	240°	40	566212	DSM-40-270-P1-FW-A-B
		63	566214	DSM-63-270-P1-FW-A-B
CC With shock absorber	246°	12	547573	DSM-12-270-CC-FW-A-B
		16	547577	DSM-16-270-CC-FW-A-B
		25	547581	DSM-25-270-CC-FW-A-B
		32	547585	DSM-32-270-CC-FW-A-B
	240°	40	547589	DSM-40-270-CC-FW-A-B
		63	552082	DSM-63-270-CC-FW-A-B
