DSM-12-270-CC-A-B 547572
FESTO

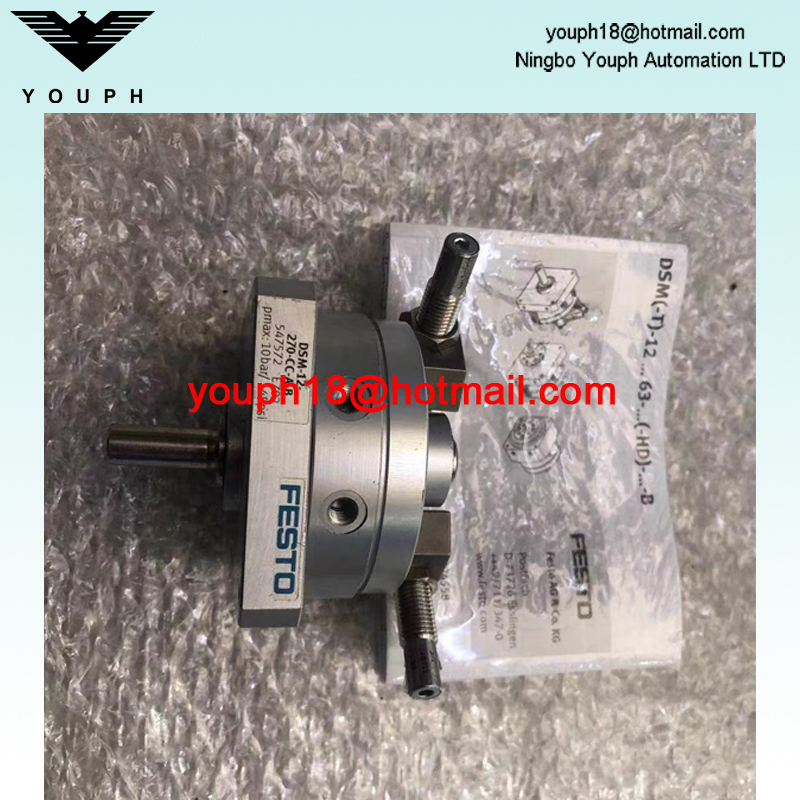

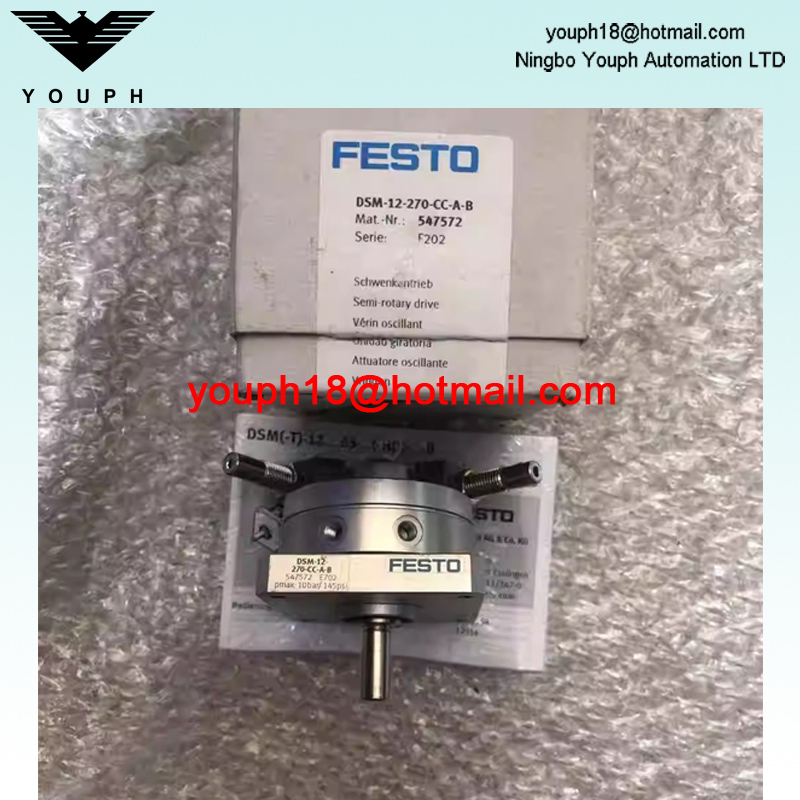

Festo DSM-12-270-CC-A-B 547572 With Shock absorber DSM Semi-rotary drive
Technical DataDSM Semi-rotary drive.pdf
Size 12
Cushioning angle 15 deg
Rotation angle adjustment range 0 deg ... 246 deg
Swivel angle 0 deg ... 246 deg
Cushioning Shock absorber at both ends
Mounting position optional
Fine adjustment -3 deg
Mode of operation Double-acting
Design Vane
Position detection Via proximity switch
Symbol 00991265
Operating pressure 0.2 MPa ... 1 MPa
Operating pressure 2 bar ... 10 bar
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi) 1.5 Hz
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC 0 - No corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10 °C ... 60 °C
Max. axial force 18 N
Max. radial force 45 N
Theoretical torque at 0.6 MPa (6 bar, 87 psi) 1.25 Nm
Permissible mass moment of inertia 0.008 kgm²
Product weight 285 g
Type of mounting Via female thread
Pneumatic connection M5
Note on materials RoHS-compliant
Material drive shaft Steel Nickel-plated
Material seals TPE-U(PU)
Material housing Wrought aluminium alloy
Spigot shaft Order Code
Characteristics | Swivel angle | Size | Part no. | Type |
Without cushioning components | 270° | 12 | 547591 | DSM-12-270-A-B |
16 | 547592 | DSM-16-270-A-B | ||
25 | 547593 | DSM-25-270-A-B | ||
32 | 547594 | DSM-32-270-A-B | ||
40 | 547595 | DSM-40-270-A-B | ||
63 | 552083 | DSM-63-270-A-B | ||
P With elastic cushioning components | 270° | 12 | 547570 | DSM-12-270-P-A-B |
16 | 547574 | DSM-16-270-P-A-B | ||
25 | 547578 | DSM-25-270-P-A-B | ||
32 | 547582 | DSM-32-270-P-A-B | ||
40 | 547586 | DSM-40-270-P-A-B | ||
63 | 552079 | DSM-63-270-P-A-B | ||
P1 With adjustable, elastic cushioning components | 246° | 12 | 566203 | DSM-12-270-P1-A-B |
16 | 566205 | DSM-16-270-P1-A-B | ||
25 | 566207 | DSM-25-270-P1-A-B | ||
32 | 566209 | DSM-32-270-P1-A-B | ||
240° | 40 | 566211 | DSM-40- 270-P1-A-B | |
63 | 566213 | DSM-63-270-P1-A-B | ||
CC With shock absorber | 246° | 12 | 547572 | DSM-12-270-CC-A-B |
16 | 547576 | DSM-16-270-CC-A-B | ||
25 | 547580 | DSM-25-270-CC-A-B | ||
32 | 547584 | DSM-32-270-CC-A-B | ||
240° | 40 | 547588 | DSM-40-270-CC-A-B | |
63 | 552081 | DSM-63-270-CC-A-B |
Flange shaft Order Code
Characteristics | Swivel angle | Size [mm] | Part no. | Type |
Without cushioning components | 270° | 12 | 547596 | DSM-12-270-FW-A-B |
16 | 547597 | DSM-16-270-FW-A-B | ||
25 | 547598 | DSM-25-270-FW-A-B | ||
32 | 547599 | DSM-32-270-FW-A-B | ||
40 | 547600 | DSM-40-270-FW-A-B | ||
63 | 552084 | DSM-63-270-FW-A-B | ||
P With elastic cushioning components | 270° | 12 | 547571 | DSM-12-270-P-FW-A-B |
16 | 547575 | DSM-16-270-P-FW-A-B | ||
25 | 547579 | DSM-25-270-P-FW-A-B | ||
32 | 547583 | DSM-32-270-P-FW-A-B | ||
40 | 547587 | DSM-40-270-P-FW-A-B | ||
63 | 552080 | DSM-63-270-P-FW-A-B | ||
P1 With adjustable, elastic cushioning components | 246° | 12 | 566204 | DSM-12-270-P1-FW-A-B |
16 | 566206 | DSM-16-270-P1-FW-A-B | ||
25 | 566208 | DSM-25-270-P1-FW-A-B | ||
32 | 566210 | DSM-32-270-P1-FW-A-B | ||
240° | 40 | 566212 | DSM-40-270-P1-FW-A-B | |
63 | 566214 | DSM-63-270-P1-FW-A-B | ||
CC With shock absorber | 246° | 12 | 547573 | DSM-12-270-CC-FW-A-B |
16 | 547577 | DSM-16-270-CC-FW-A-B | ||
25 | 547581 | DSM-25-270-CC-FW-A-B | ||
32 | 547585 | DSM-32-270-CC-FW-A-B | ||
240° | 40 | 547589 | DSM-40-270-CC-FW-A-B | |
63 | 552082 | DSM-63-270-CC-FW-A-B |
