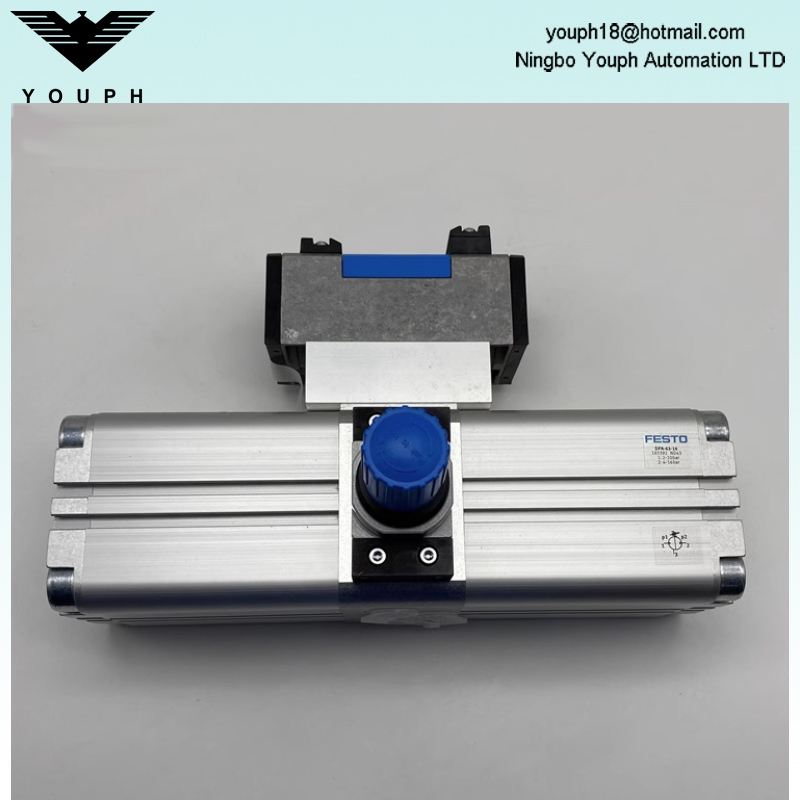

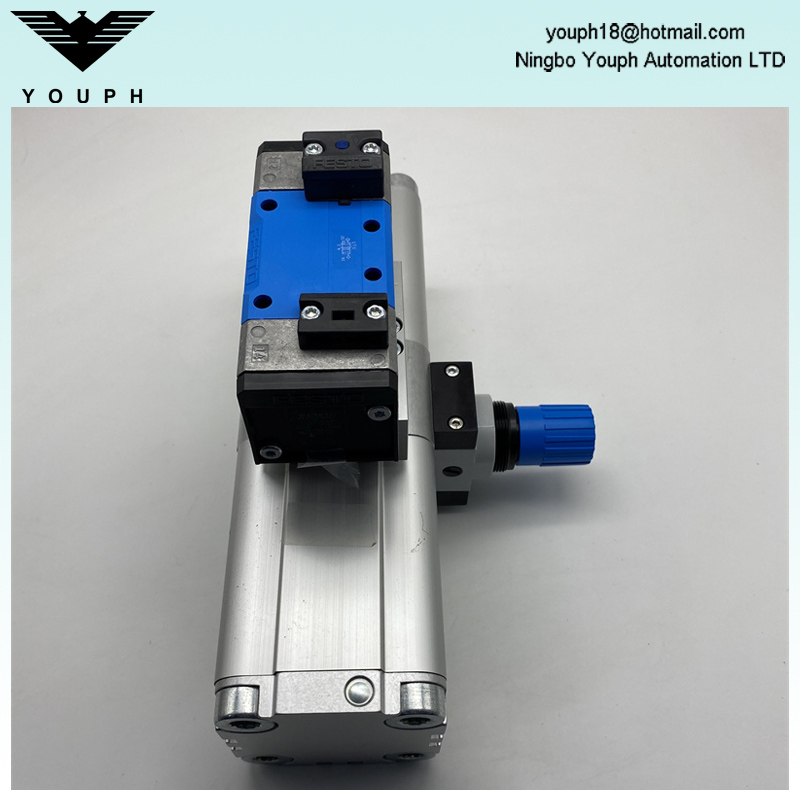

Festo DPA-63-16 193392 DPA-63-D 549397 DPA Pressure booster

Festo DPA-63-16 193392 DPA-63-D 549397 DPA Pressure booster

• Piston diameter63 mm

• Mounting positionoptional

• DesignTwin-piston pressure booster

• Symbol00991432

• Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8

• Output pressure 20.4 MPa ... 1.6 MPa

• Output pressure 24 bar ... 16 bar

• Output pressure 258 psi ... 232 psi

• Operating pressure0.2 MPa ... 1 MPa

• Operating pressure2 bar ... 10 bar

• Operating pressure29 psi ... 145 psi

• Pressure regulation range0.4 MPa ... 1.6 MPa

• Pressure regulation range4 bar ... 16 bar

• Pressure regulation range58 psi ... 232 psi

• Inlet pressure 12 bar ... 10 bar

• Inlet pressure 10.2 MPa ... 1 MPa

• Inlet pressure 129 psi ... 145 psi

• Note on pressure regulation rangeIf the controller spring is tensioned to the maximum, the maximum output pressure can be exceeded by 40%.

• Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]

• Note on operating and pilot mediumLubricated operation not possible

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Storage temperature5 °C ... 60 °C

• Ambient temperature5 °C ... 60 °C

• Product weight6000 g

• Type of mountingVia female thread

• Pneumatic connection, port 1G3/8

• Pneumatic connection, port 2G3/8

• Pneumatic connection, port 3G3/8

• Note on materialsRoHS-compliant

Ordering Code
