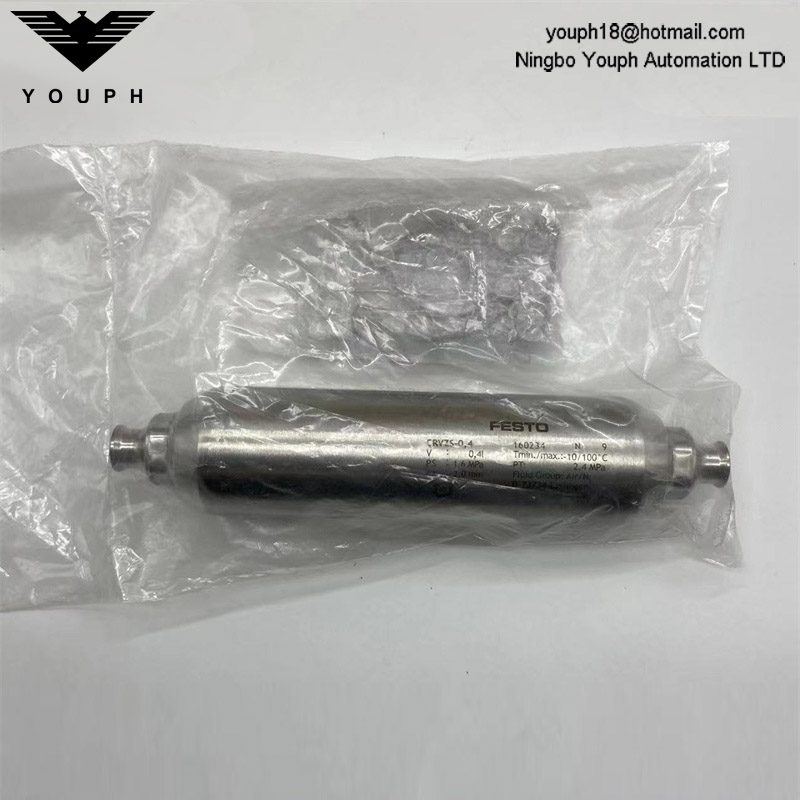

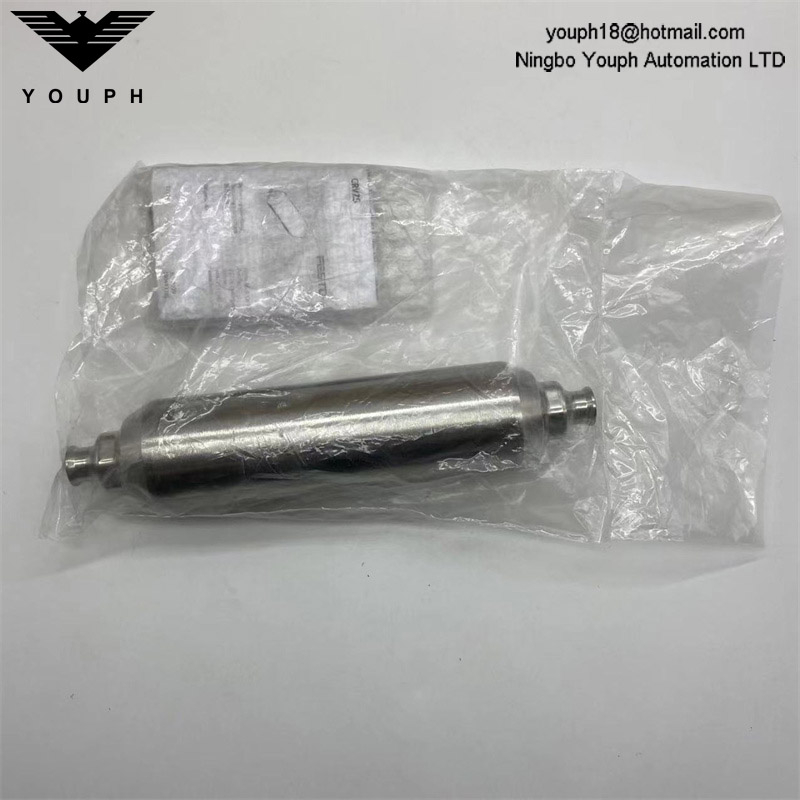

Festo CRVZS-0.4 160234 G1/4 0.4L High-alloy stainless steel SS Air reservoir

Festo CRVZS-0.4 160234 G1/4 0.4L High-alloy stainless steel SS Air reservoir

Material air reservoir: High-alloy stainless steel

• Symbol: 00991528

• Operating pressure: -0.095 MPa ... 1.6 MPa

• Operating pressure: -0.95 bar ... 16 bar

• Operating pressure: -13.78 psi ... 232 psi

• Approval: CRN German Technical Control Board (TÜV)

• Certificate issuing authority: TSSACRN0H17477.5C

• Operating medium: Compressed air to ISO 8573-1:2010 [-:-:-] Nitrogen

• Corrosion resistance class CRC: 3 - high corrosion stress

• LABS (PWIS) conformity: VDMA24364-B1/B2-L

• Suitable for use with food: See supplementary material information

• Media temperature: -10 °C ... 100 °C

• Ambient temperature: -10 °C ... 100 °C

• Max. tightening torque for connecting thread: 23 Nm

• Product weight: 543 g

• Type of mounting: Via fixing clips

• Pneumatic connection: G1/4

• Note on materials: RoHS-compliant

• Material air reservoir: High-alloy stainless steel

• Material fixing clips: High-alloy stainless steel
