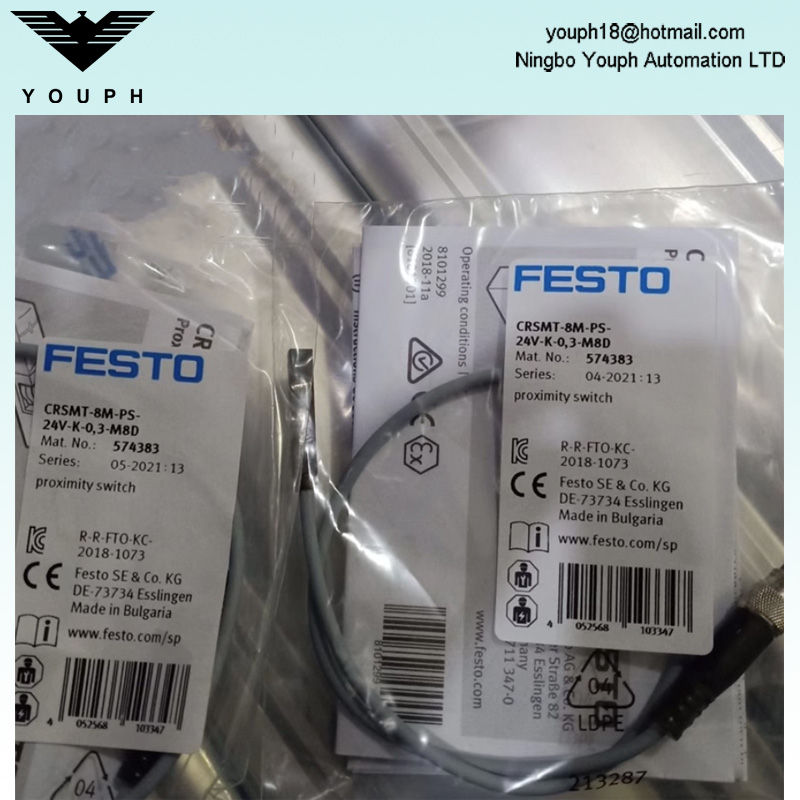

Festo CRSMT-8M-PS-24V-K-0,3-M8D-EX2 574383 CRSMT PNP Proximity sensor Position Switch

Festo CRSMT-8M-PS-24V-K-0,3-M8D-EX2 574383 CRSMT PNP Proximity sensor Position Switch

• DesignFor T-slot

• Based on standardEN 60947-5-2

• Symbol00991153

• ApprovalRCM trademark

• CE mark (see declaration of conformity)To EU EMC Directive To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive

• CE marking (see declaration of conformity)To UK instructions for EMC To UK EX instructions To UK RoHS instructions

• Explosion protectionZone 2 (ATEX) Zone 2 (UKEX) Zone 22 (ATEX) Zone 22 (UKEX)

• ATEX category gasII 3G

• Explosion ignition protection type for gasEx ec IIC T4 Gc X

• ATEX category dustII 3D

• Explosion ignition protection type for dustEx tc IIIC T120°C Dc X

• Explosion protection certification outside the EUEPL Dc (GB) EPL Gc (GB)

• Explosion ambient temperature-40°C <= Ta <= +85°C

• Special characteristicsResistant to cooling lubricants Alkali resistant Acid resistant

• Note on materialsRoHS-compliant Free of halogen

• Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"

• Measured variablePosition

• Measuring principleMagneto-resistive

• Ambient temperature-40 °C ... 85 °C

• Repetition accuracy0.2 mm

• Switching outputPNP

• Switching element functionN/O contact

• Switch-on time≤1 ms

• Switch-off time≤1 ms

• Max. switching frequency180 Hz

• Max. output current100 mA

• Max. output current using mounting kits100 mA

• Max. switching capacity DC2.8 W

• Max. switching capacity DC using mounting kits2.8 W

• Voltage drop<1.5 V

• Inductive protective circuitAdapted to MZ, MY, ME coils

• Min. load current0 mA

• Off-state current<0.05 mA

• Short circuit current ratingyes

• Overload protectionAvailable

• Rated operational voltage DC24 V

• Operational voltage range DC5 V ... 30 V

• Residual ripple10 %

• Reverse polarity protectionFor all electrical connections

• Electrical connection 1, connection typeCable with plug

• Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

• Electrical connection 1, number of connections/cores3

• Electrical connection 1, type of mountingScrew-type lock

• Electrical connection 1, connection pattern00991155

• Connection outlet orientationIn-line

• Material electrical contactBrass, nickel-plated and gold-plated

• Material connector housingPP

• Test conditions cableBending strength: to Festo standard Torsional resistance: > 300,000 cycles, ± 270°/0.1 m Energy chain: > 5 million cycles, bending radius 75 mm

• Cable length0.3 m

• Cable characteristicStandard/suitable for energy chains

• Cable sheath colourgrey

• Material cable sheathTPE-O

• Material insulating sheathPP

• Type of mountingScrew-clamped Insertable in the slot from above

• Tightening torque0.1 Nm ... 0.6 Nm

• Max. tightening torque0.6 Nm

• Mounting positionoptional

• Product weight16.1 g

• Housing colourBlack

• Material housingPA PP High-alloy stainless steel

• Material union nutNickel-plated brass

• Switching status indicationYellow LED

• Function reserve indicationOrange LED

• Ambient temperature with moving cable-20 °C ... 85 °C

• Degree of protectionIP65 IP68 IP69K

• Immunity to magnetic fieldsDesign insensitive to permanent magnetic fields < Bon

• LABS (PWIS) conformityVDMA24364-B2-L

• Suitable for use with foodSee supplementary material information
