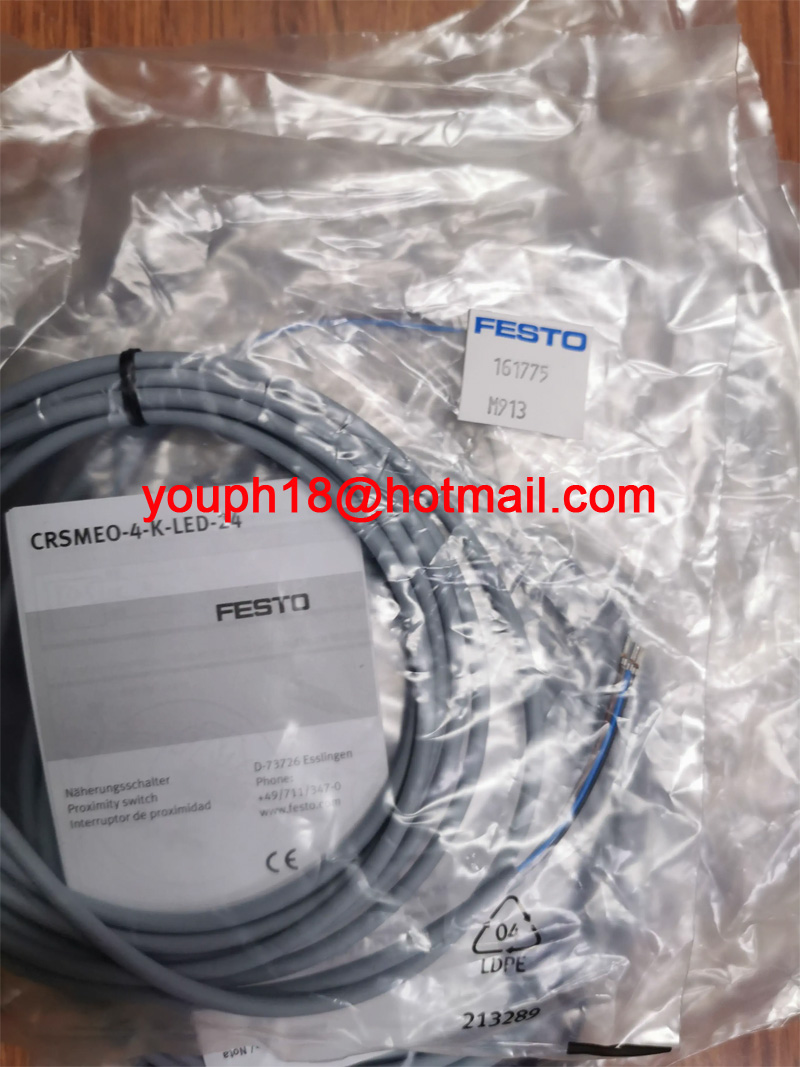

Festo CRSMEO-4-K-LED-24 161775 Proximity sensor Position Switch

Festo CRSMEO-4-K-LED-24 161775 Proximity sensor Position Switch

• Design: Round

• Symbol: 00991145

• Approval: RCM trademark

• CE mark (see declaration of conformity): To EU EMC Directive In accordance with EU RoHS Directive

• CE marking (see declaration of conformity): To UK instructions for EMC To UK RoHS instructions

• Note on materials: RoHS-compliant

• Measured variable: Position

• Measuring principle: Magnetic reed

• Ambient temperature: -20 °C ... 60 °C

• Repetition accuracy: 0.2 mm

• Switching output: Contacting, bipolar

• Switching element function: N/O contact

• Switch-on time: ≤0.5 ms

• Switch-off time: 0.03 ms

• Max. switching frequency: 800 Hz

• Max. output current: 500 mA

• Max. switching capacity DC: 10 W

• Inductive protective circuit: Adapted to MZ, MY, ME coils

• Short circuit current rating: no

• Rated operational voltage DC: 24 V

• Operational voltage range DC: 12 V ... 30 V

• Reverse polarity protection: no

• Electrical connection 1, connection type: Cable

• Electrical connection 1, connector system: Open end

• Electrical connection 1, number of connections/cores: 3

• Connection outlet orientation: In-line

• Cable length: 2.5 m

• Cable sheath colour: grey

• Material cable sheath: TPE-O

• Type of mounting: With accessories

• Product weight: 70 g

• Housing colour: Black

• Material housing: PP

• Switching status indication: Yellow LED

• Ambient temperature with moving cable: -5 °C ... 60 °C

• Degree of protection: IP67

• LABS (PWIS) conformity: VDMA24364-B2-L
