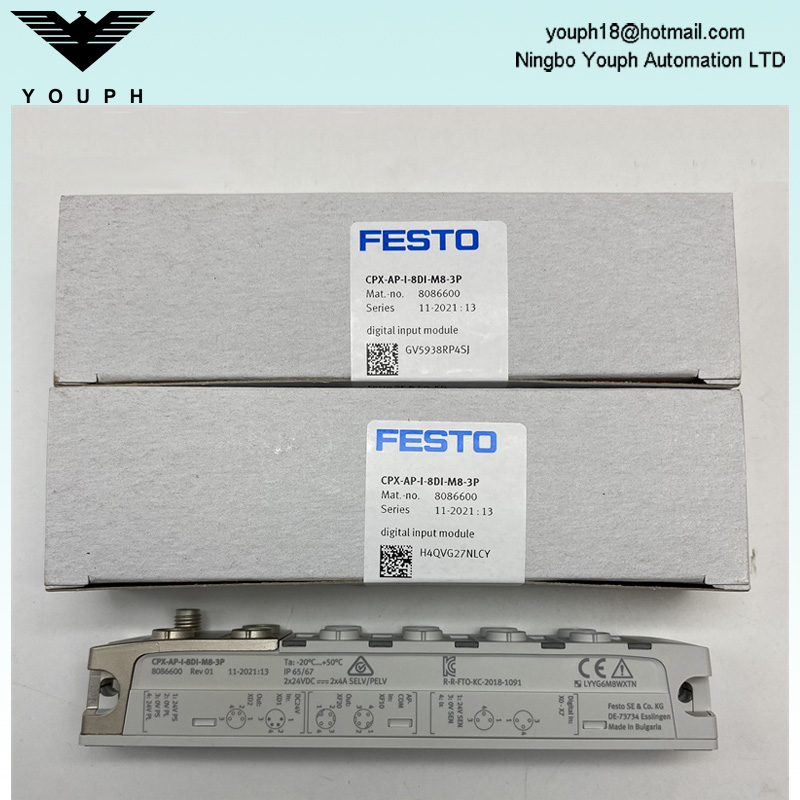

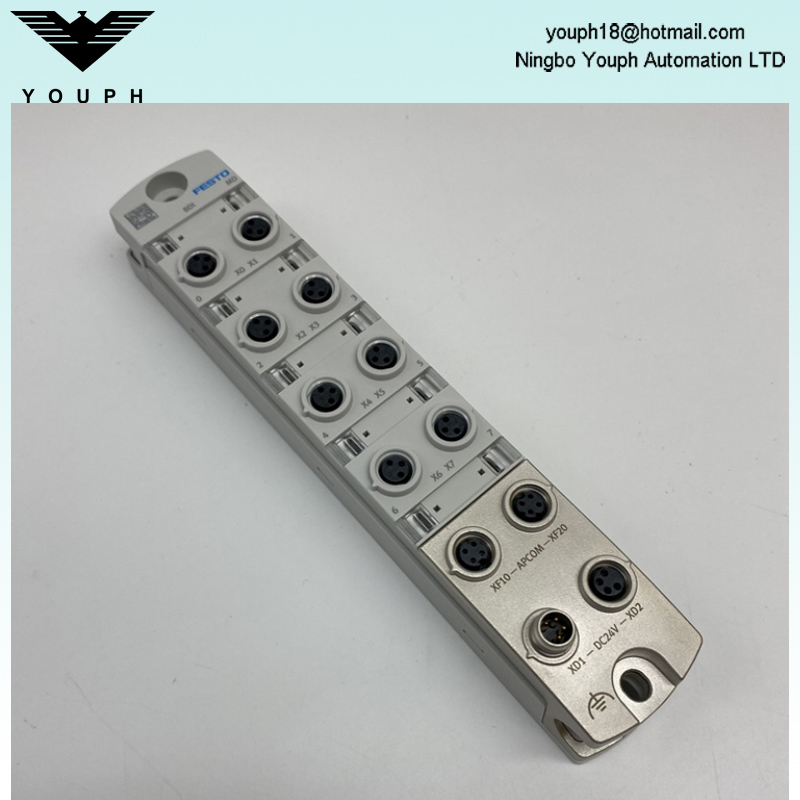

Festo CPX-AP-I-4DI-M8-3P 8086605 CPX-AP-I-8DI-M8-3P 8086600 CPX Digital input module

Festo CPX-AP-I-4DI-M8-3P 8086605 CPX-AP-I-8DI-M8-3P 8086600 CPX Digital input module

• Dimensions (W x L x H)30 x 170 x 35 mm

• Type of mountingOn H-rail via accessories With through-hole

• Product weight126 g

• Ambient temperature-20 °C ... 50 °C

• Storage temperature-40 °C ... 70 °C

• Relative air humidity5 - 95% Non-condensing

• Degree of protectionIP65 IP67

• Note on degree of protectionUnused connections sealed

• Corrosion resistance class CRC1 - Low corrosion stress

• Max. cable length30 m inputs 50 m system communication

• Note on max. cable lengthPower supply according to nominal voltage

• LABS (PWIS) conformityVDMA24364-B2-L

• Cleanroom classElement installed statically, no meaningful evaluation possible according to ISO 14644-1

• CE mark (see declaration of conformity)To EU EMC Directive

• CE marking (see declaration of conformity)To UK instructions for EMC

• KC markKC-EMV

• ApprovalRCM trademark c UL us listed (OL)

• Certificate issuing authorityUL E239998

• Note on materialsRoHS-compliant

• Material housingPA PC Die-cast zinc, nickel-plated

• Material o-ringFPM

• Diagnostics via LEDDiagnostics per module Status per channel

• Diagnostics per internal communicationShort circuit/overload in sensor supply Electronics/sensors overvoltage Electronics/sensors undervoltage

• Communication interface, functionSystem communication XF10 IN / XF20 OUT

• Communication interface, connection type2x socket

• Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114

• Communication interface, number of pins/wires4

• Communication interface, protocolAP

• Communication interface, shieldingyes

• Power supply, functionIncoming electronics/sensors and load

• Power supply, connection typePlugs

• power supply, connection systemM8x1, A-coded to EN 61076-2-104

• Power supply, number of pins/wires4

• Power transmission, functionOutgoing electronics/sensors and load

• Power transmission, connection typeSocket

• Power transmission, connection technologyM8x1, A-coded to EN 61076-2-104

• Power transmission, number of pins/wires4

• Note regarding operating voltageSELV/PELV fixed power supplies required Note voltage drop

• Nominal DC operating voltage, electronics/sensors24 V

• Permissible voltage fluctuations for electronics/sensors± 25%

• Max. power supply2 x 4 A (external fuse required)

• Intrinsic current consumption at nominal operating voltage for electronics/sensorsTypically 32 mA

• Power failure bridging10 ms

• Reverse polarity protectionyes

• Electrical connection input, functionDigital input

• Electrical connection input, connection type8x socket

• Electrical connection input, connector systemM8x1, A-coded to EN 61076-2-104

• Electrical connection input, number of connections/cores3

• Number of inputs8

• Characteristic for inputsTo IEC 61131-2, type 3

• Switching levelSignal 0: <= 5 V Signal 1: >= 11 V

• Switching logic for inputsPNP (positive switching) 2-wire sensors to IEC 61131-2 3-wire sensors to IEC 61131-2

• Input debounce time0.1 ms 3 ms 10 ms 20 ms

• Fuse protection of inputs (short circuit)Internal electronic fuse per module

• Max. residual current of inputs per module1.8 A

• Electrical isolation of inputs between channelsno

• Electrical isolation of inputs between channel - internal communicationyes
