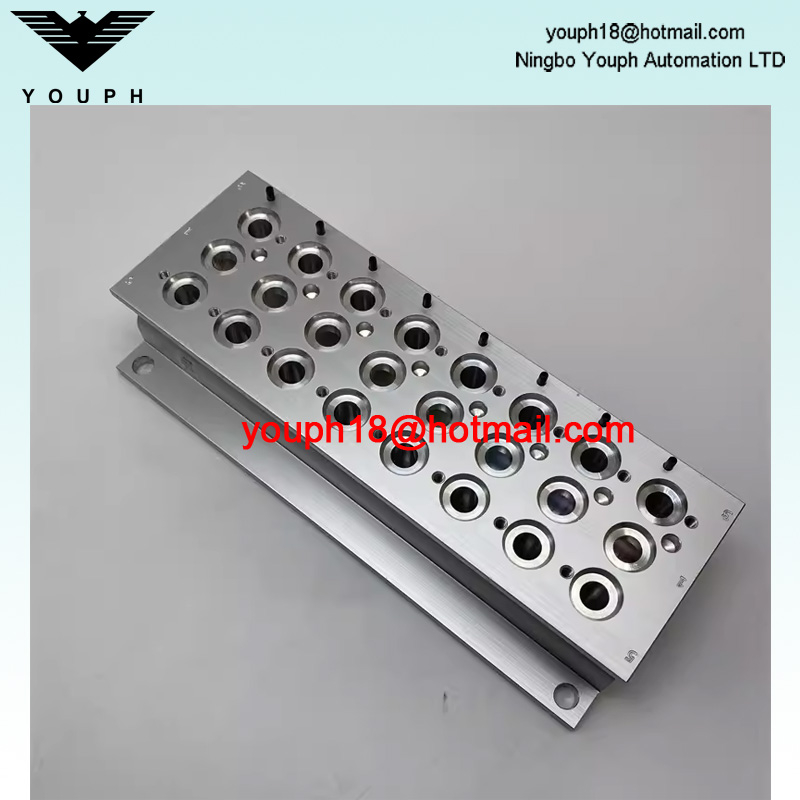

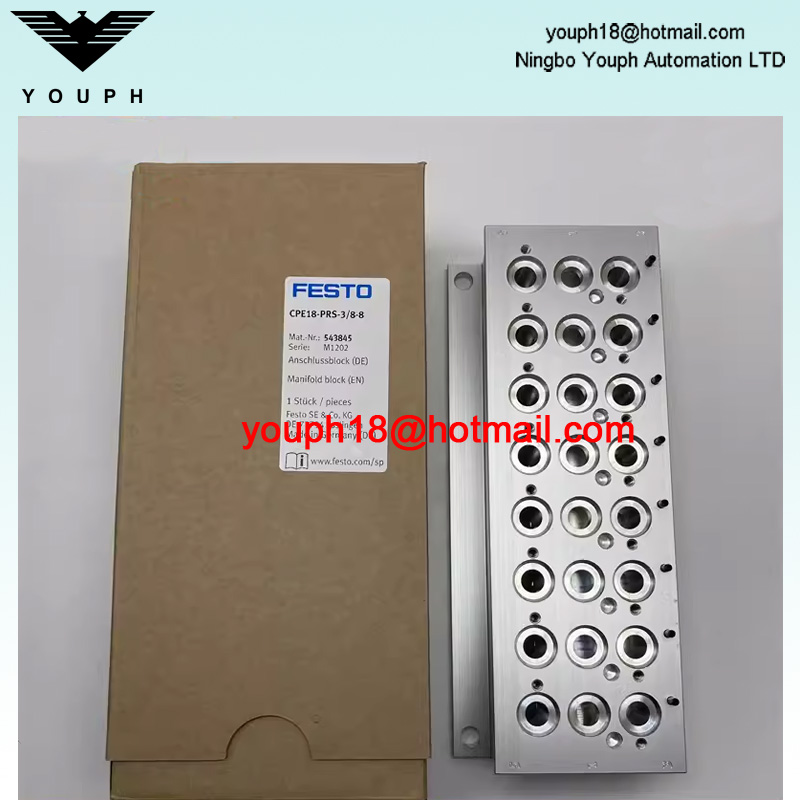

Festo CPE18-PRS-3/8-8 543845 8 Valves positions Manifold block

Festo CPE18-PRS-3/8-8 543845 8 Valves positions Manifold block

• Grid dimension26 mm

• Mounting positionoptional

• Max. number of valve positions8

• Max. number of pressure zones2

• Burst pressure5 MPa

• Burst pressure50 bar

• Burst pressure725 psi

• Operating pressure-0.09 MPa ... 1 MPa

• Operating pressure-0.9 bar ... 10 bar

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Media temperature-5 °C ... 50 °C

• Ambient temperature-5 °C ... 50 °C

• Max. tightening torque for valve mounting2 Nm

• Product weight1128 g

• Type of mounting in-line valve manifoldWith through-hole

• Mounting method for valveVia female thread

• Pneumatic connection, port 1G3/8

• Pneumatic connection, port 3G3/8

• Pneumatic connection, port 5G3/8

• Note on materialsRoHS-compliant

• Material manifold railWrought aluminium alloy
