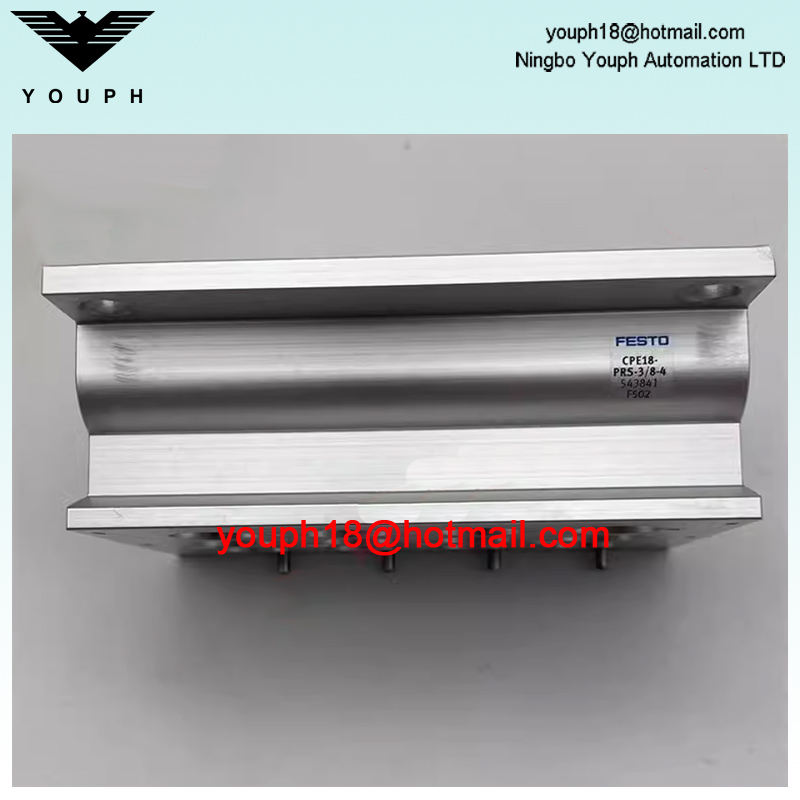

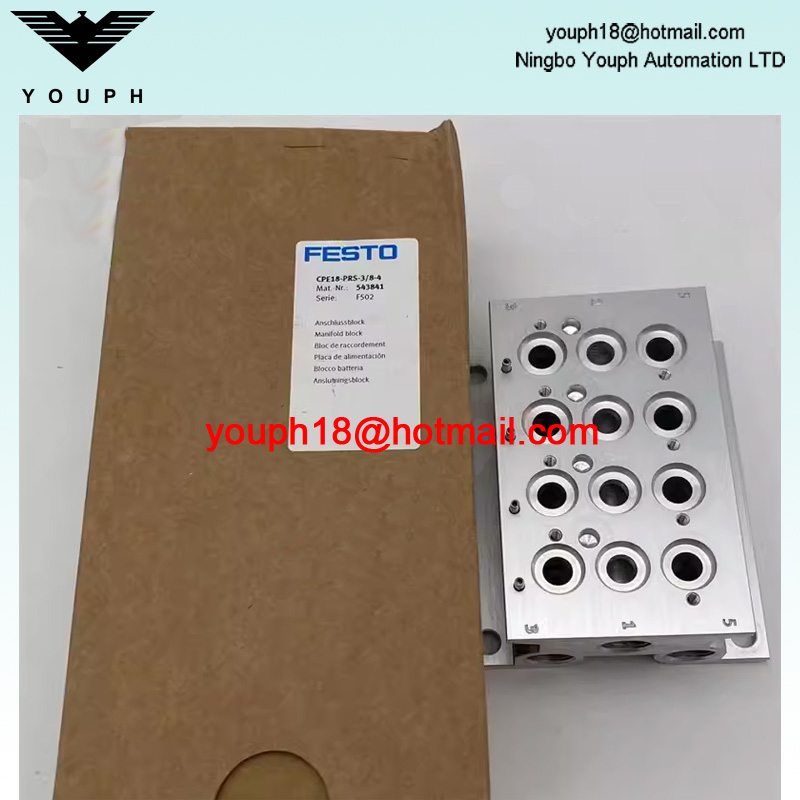

Festo CPE18-PRS-3/8-4 543841 4 Valves Manifold block

Festo CPE18-PRS-3/8-4 543841 4 Valves Manifold block

• Grid dimension: 26 mm

• Mounting position: optional

• Max. number of valve positions: 4

• Max. number of pressure zones: 2

• Burst pressure: 5 MPa

• Burst pressure: 50 bar

• Burst pressure: 725 psi

• Operating pressure: -0.09 MPa ... 1 MPa

• Operating pressure: -0.9 bar ... 10 bar

• Corrosion resistance class CRC: 2 - Moderate corrosion stress

• LABS (PWIS) conformity: VDMA24364-B1/B2-L

• Media temperature: -5 °C ... 50 °C

• Ambient temperature: -5 °C ... 50 °C

• Max. tightening torque for valve mounting: 2 Nm

• Product weight: 611 g

• Type of mounting in-line valve manifold: With through-hole

• Mounting method for valve: Via female thread

• Pneumatic connection, port 1: G3/8

• Pneumatic connection, port 3: G3/8

• Pneumatic connection, port 5: G3/8

• Note on materials: RoHS-compliant

• Material manifold rail: Wrought aluminium alloy
