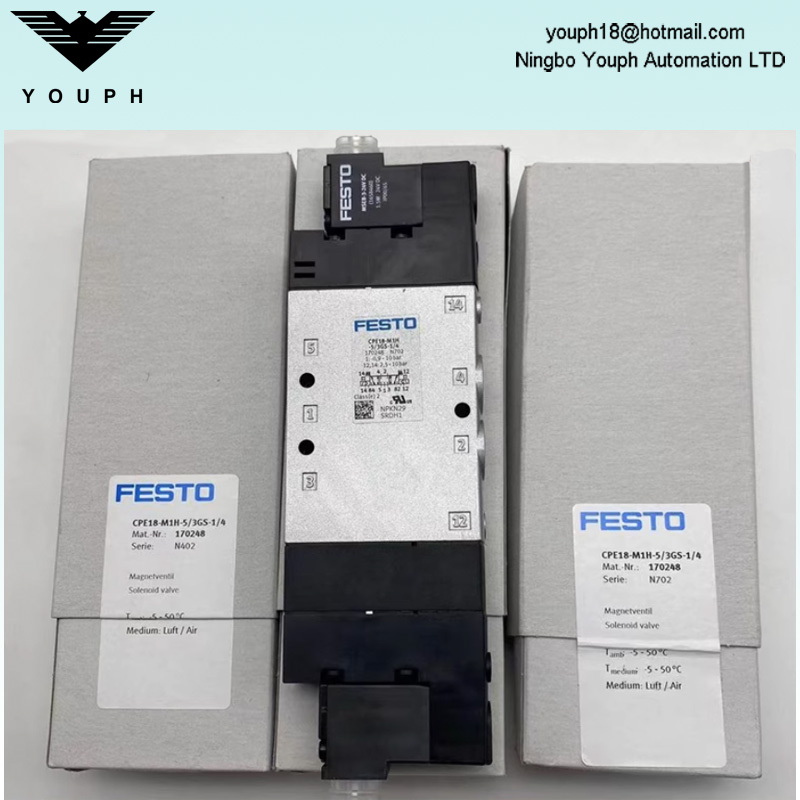

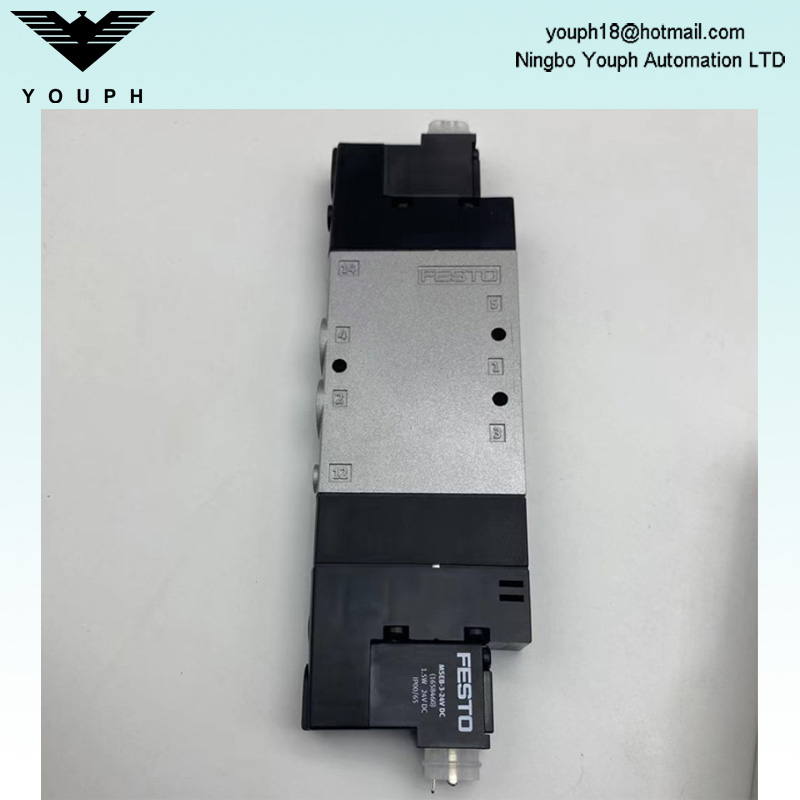

Festo CPE18-M1H-5/3GS-1/4 170248 CPE18 5/3 closed Electric Valve

Festo CPE18-M1H-5/3GS-1/4 170248 CPE18 5/3 closed Electric Valve

• Valve function5/3 closed

• Type of actuationElectric

• Construction width18 mm

• Standard nominal flow rate (standardised to DIN 1343)1450 l/min

• pneumatic working portG1/4

• Operating voltage24V DC

• Operating pressure-0.09 MPa ... 1 MPa

• Operating pressure-0.9 bar ... 10 bar

• DesignPiston gate valve

• Type of resetMechanical spring

• Approvalc UL us - Recognized (OL)

• Maritime classificationSee certificate

• Certificate issuing authorityDNV-TAA000032X UL MH19482

• Degree of protectionIP65 With plug socket To IEC 60529

• Nominal size8 mm

• Exhaust-air functionWith flow control option

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideDetenting via accessory Non-detenting

• Type of pilotingPilot actuated

• Pilot air supplyExternal

• Flow directionReversible

• Symbol00991020

• Valve position codeInscription label holder

• lapOverlap

• Pilot pressure0.25 MPa ... 1 MPa

• Pilot pressure2.5 bar ... 10 bar

• Switching time off38 ms

• Switching time on20 ms

• Duty cycle100%

• Max. positive test pulse with 0 signal3300 µs

• Max. negative test pulse with 1 signal3100 µs

• Characteristic coil data24 V DC: 1.5 W

• Permissible voltage fluctuations-15%/+10%

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Media temperature-5 °C ... 50 °C

• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Ambient temperature-5 °C ... 50 °C

• Product weight280 g

• Electrical connectionType C

• Type of mountingWith through-hole

• Pilot exhaust port 82M5

• Pilot exhaust port 84M5

• Pilot air port 12M5

• Pilot air port 14M5

• Pneumatic connection, port 1G1/4

• Pneumatic connection, port 2G1/4

• Pneumatic connection, port 3G1/4

• Pneumatic connection, port 4G1/4

• Pneumatic connection, port 5G1/4

• Note on materialsRoHS-compliant

• Material sealsNBR

• Material housingDie-cast aluminium
