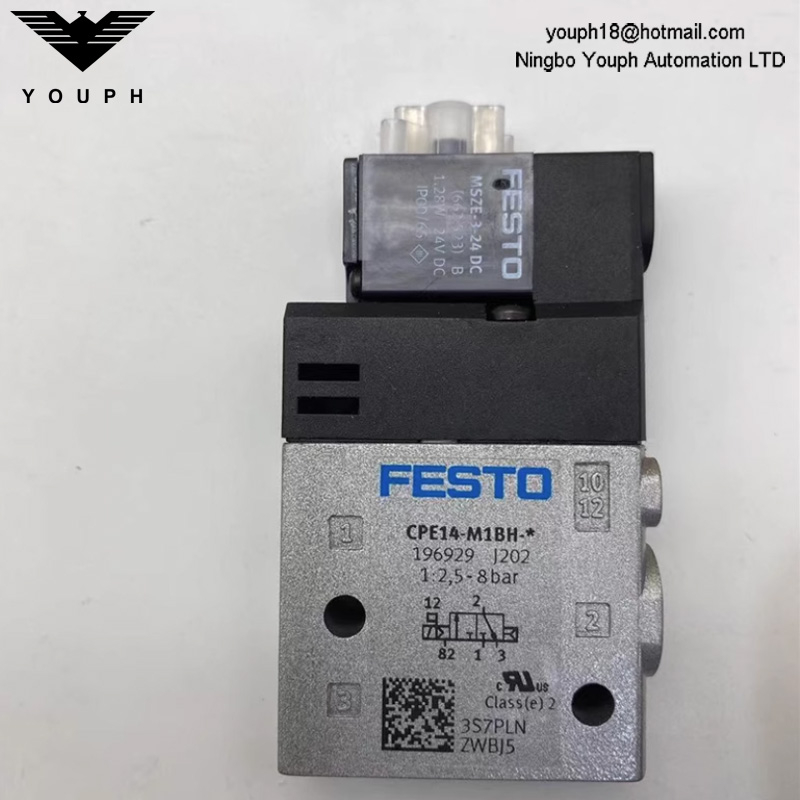

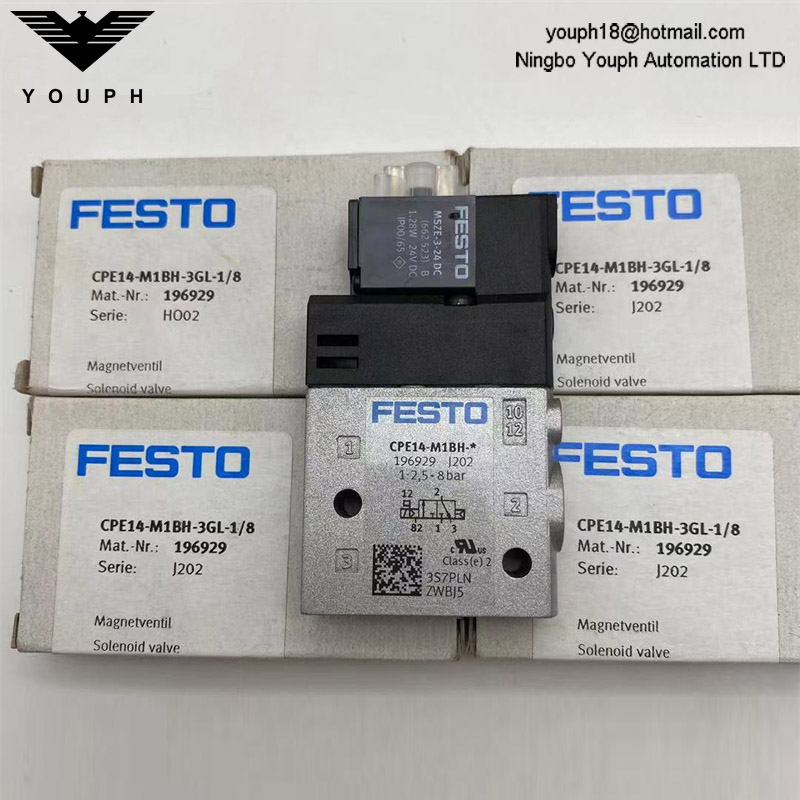

Festo CPE14-M1BH-3GL-1/8 196929 Solenoid valve

Festo CPE14-M1BH-3GL-1/8 196929 Solenoid valve

Valve function: 3/2-way, closed, monostable

Standard nominal flow rate (standardised to DIN 1343): 900 l/min

Pneumatic connection, port 1: G1/8

Type of actuation: Electric

• Valve function: 3/2-way, closed, monostable

• Type of actuation: Electric

• Construction width: 14 mm

• Standard nominal flow rate (standardised to DIN 1343): 900 l/min

• pneumatic working port: G1/8

• Operating voltage: 24V DC

• Operating pressure: 0.25 MPa ... 0.8 MPa

• Operating pressure: 2.5 bar ... 8 bar

• Design: Piston gate valve

• Type of reset: Pneumatic spring

• Approval: c UL us - Recognized (OL)

• Maritime classification: See certificate

• Certificate issuing authority: DNV-TAA000032X UL MH19482

• Degree of protection: IP65 With plug socket To IEC 60529

• Nominal size: 6 mm

• Sealing principle: Soft

• Mounting position: optional

• Manual override: Detenting via accessory Non-detenting

• Type of piloting: Pilot actuated

• Pilot air supply: Internal

• Flow directionNon-reversible

• Symbol: 00991655

• Valve position code: Inscription label holder

• lap: Overlap

• Switching time off: 27 ms

• Switching time on: 16 ms

• Duty cycle: 100% in conjunction with holding current reduction

• Max. positive test pulse with 0 signal: 1200 µs

• Max. negative test pulse with 1 signal: 900 µs

• Characteristic coil data: 24 V DC: 1.28 W

• Permissible voltage fluctuations: -15%/+10%

• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)

• Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

• Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

• Corrosion resistance class CRC: 2 - Moderate corrosion stress

• LABS (PWIS) conformity: VDMA24364-B1/B2-L

• Media temperature: -5 °C ... 50 °C

• Ambient temperature: -5 °C ... 50 °C

• Product weight: 60 g

• Electrical connection: 2-pin

• Type of mounting: With through-hole

• Pilot exhaust port 82: M3

• Pilot air port 12: M3

• Pneumatic connection, port 1: G1/8

• Pneumatic connection, port 2: G1/8

• Pneumatic connection, port 3: G1/8

• Note on materials: RoHS-compliant

• Material seals: NBR

• Material housing: Die-cast aluminium
