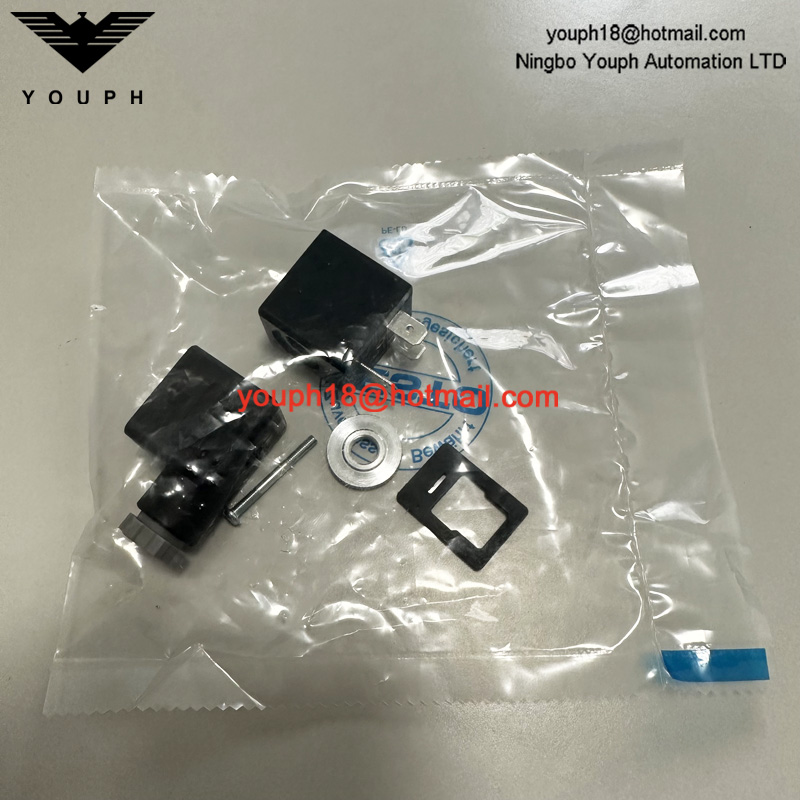

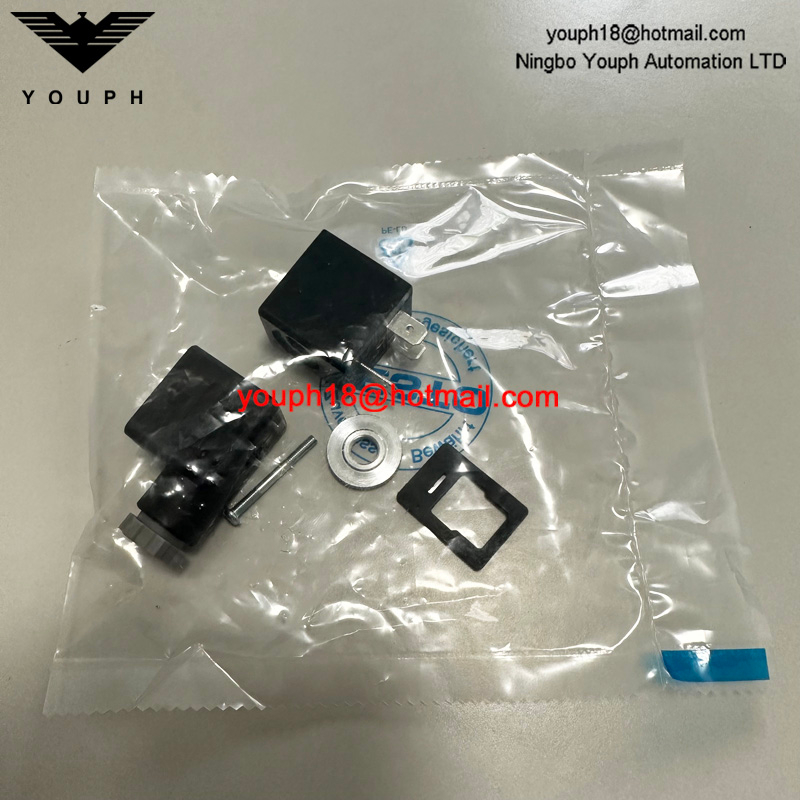

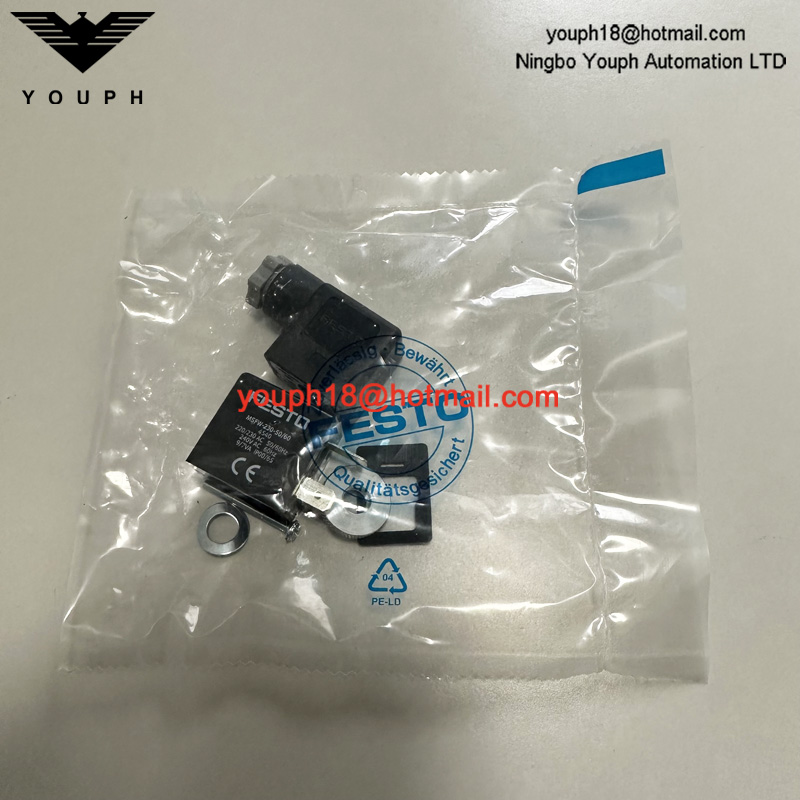

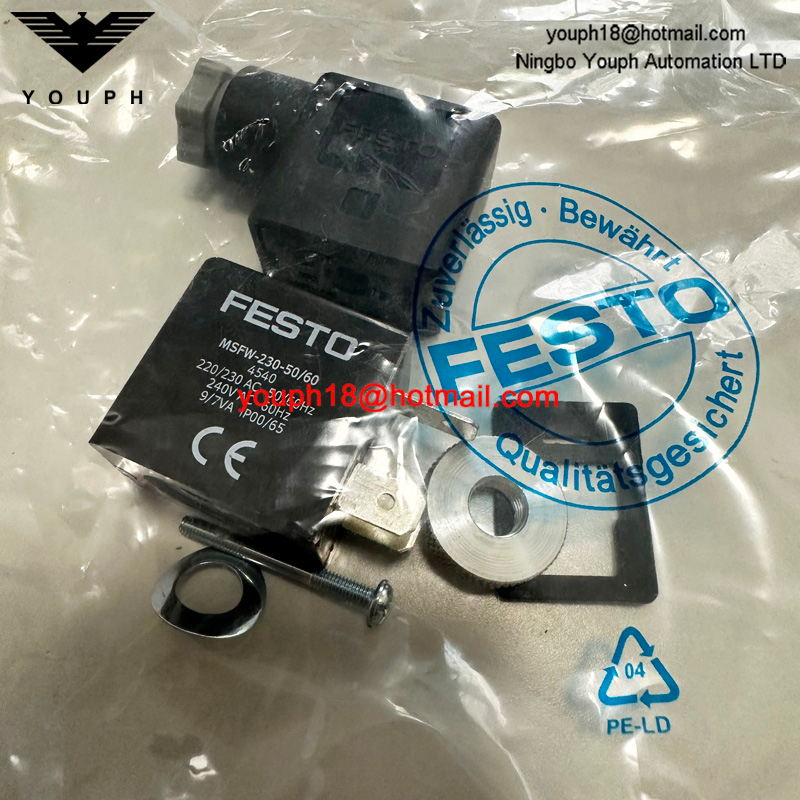

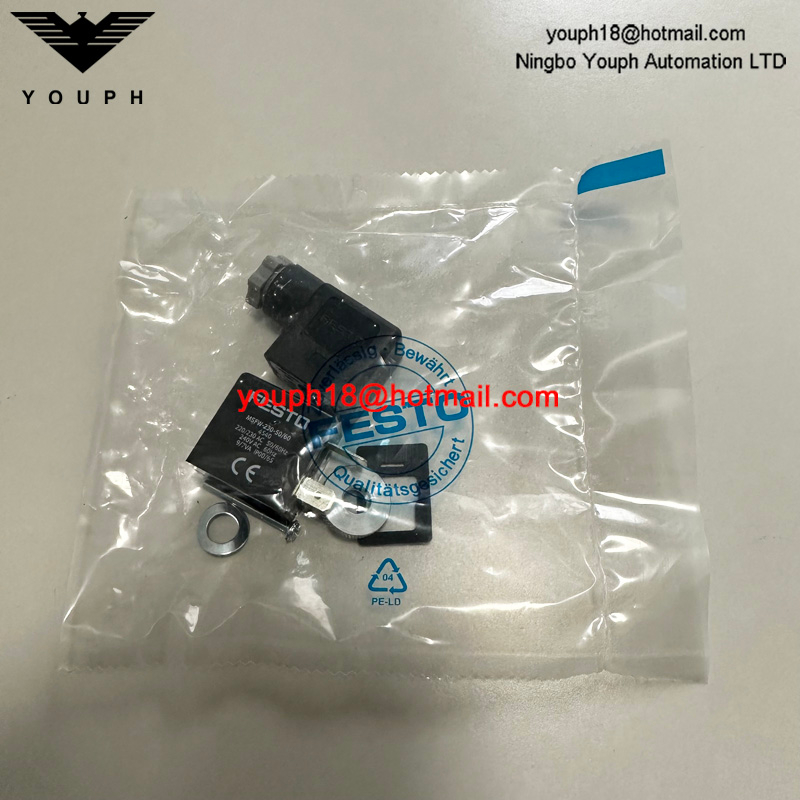

FESTO MSFW-230-50/60 4540 230V AC 50/60 Hz Tiger Valve MFH-5-1/4 Solenoid Coil

FESTO MSFW-230-50/60 4540 230V AC 50/60 Hz Tiger Valve MFH-5-1/4 Solenoid Coil

Apply to: JMFH-5-1/8-B , MFH-5-1/8-B , MFH-5-1/4-B , MFH-5-1/8 , MFH-5-1/4 , MFH-3-1/4

Mounting position: optional

Switching position indicator: no

Min. pick-up time: 10 ms

Duty cycle: 100%

Power factor (cos phi): 0.7

Characteristic coil data: 230 V AC: 50/60 Hz, pick-up power 9.0 VA, holding power 7.0 VA

Permissible frequency fluctuations: +/- 5%

Permissible voltage fluctuations: +/- 10 %

LABS (PWIS) conformity: VDMA24364-C1-L

Degree of protection: IP65

Ambient temperature: -5 °C ... 40 °C

Max. tightening torque for socket: 0.4 Nm

Product weight: 55 g

Electrical connection: 3-pin

Plug pins with connection pattern to Festo standard for MSSD-F

Type of mounting: Via knurled nut

Note on materials: RoHS-compliant

Material solenoid coil: Duroplast Copper Steel

Material winding: Copper
