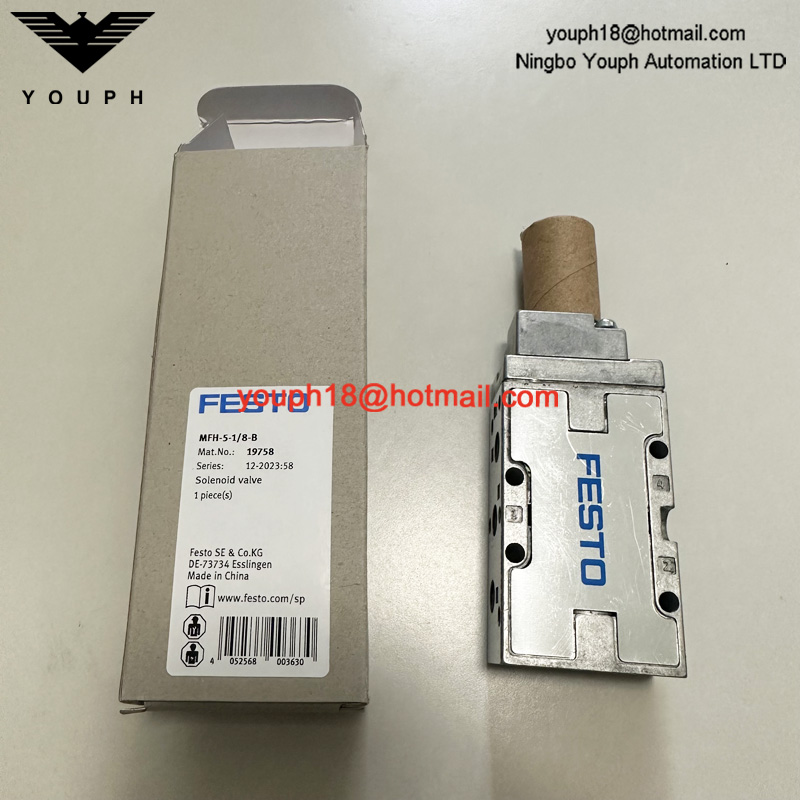

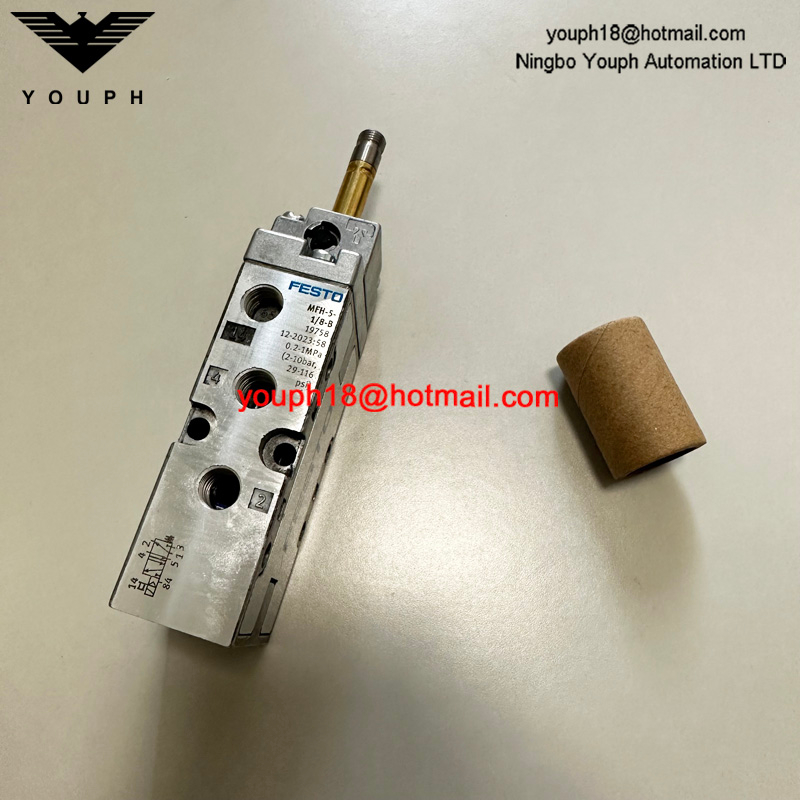

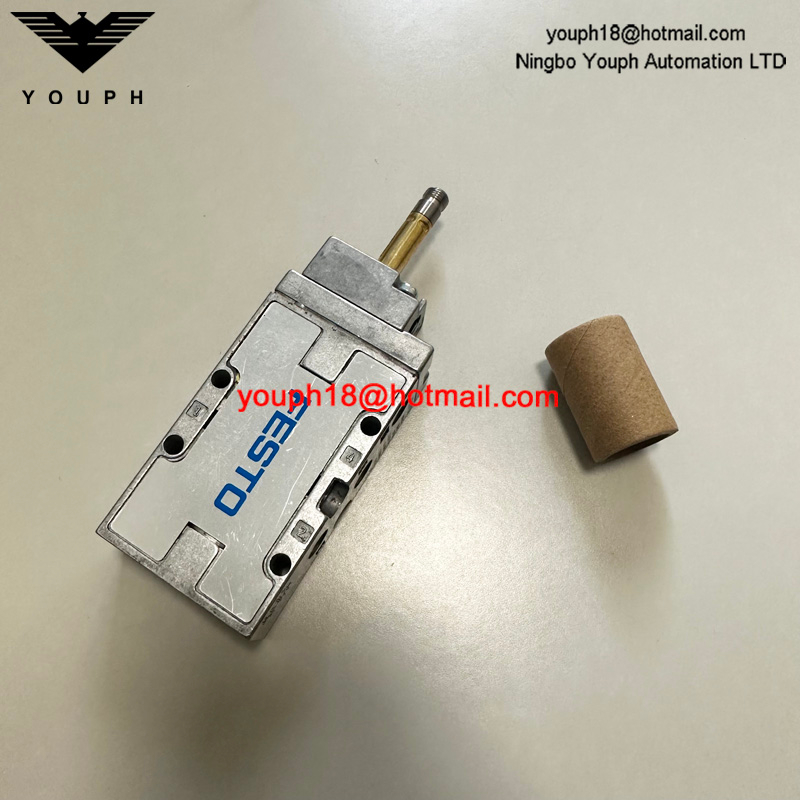

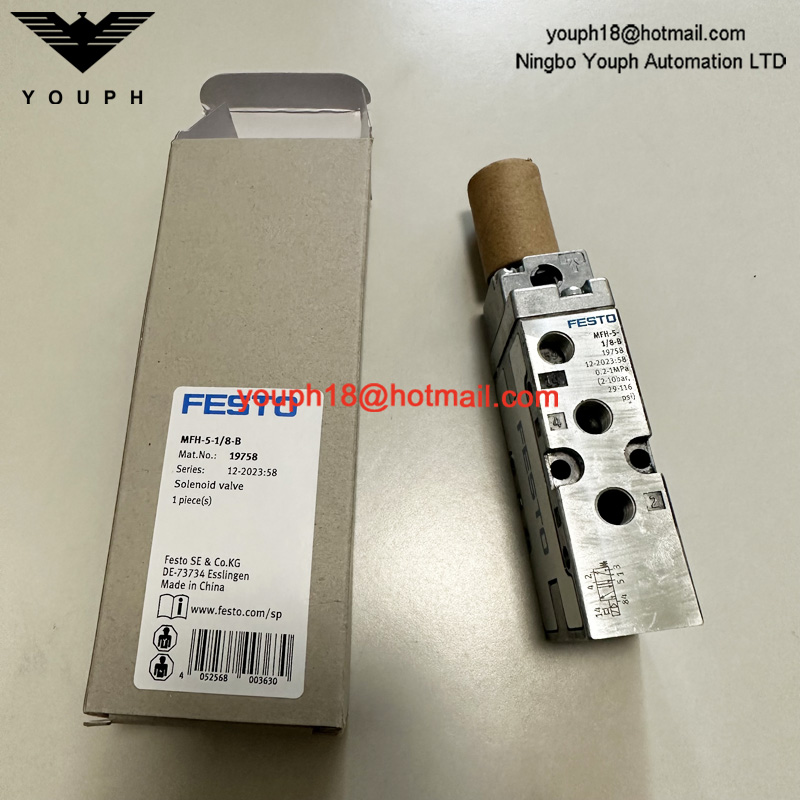

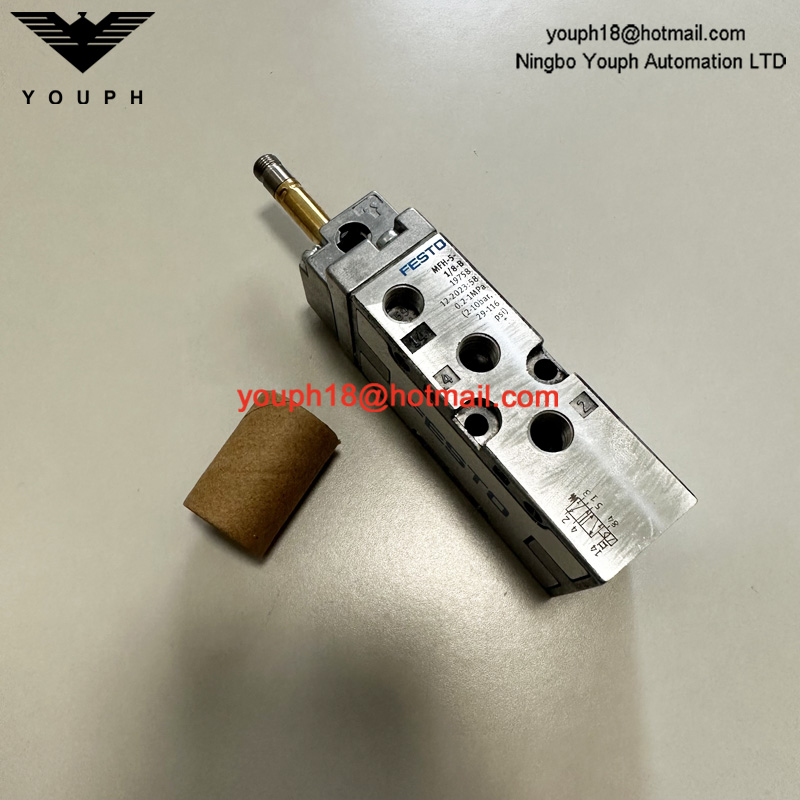

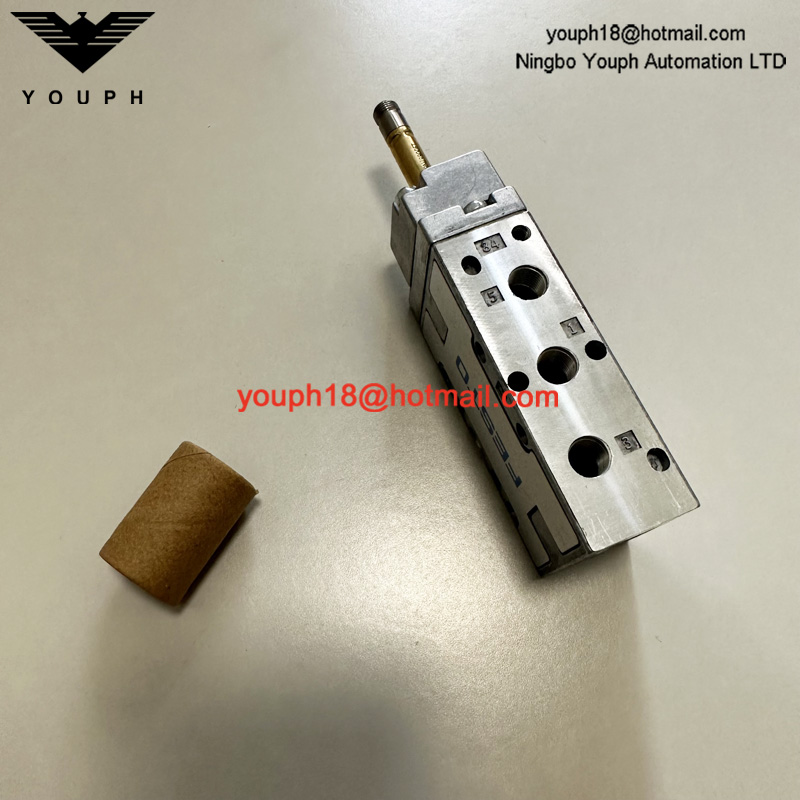

FESTO MFH-5-1/8-B 19758 G1/8 5/2-way Tiger valve 2000 Solenoid valve

FESTO MFH-5-1/8-B 19758 G1/8 5/2-way Tiger valve 2000 Solenoid valve

Valve function: 5/2-way, monostable

Type of actuation: Electric

Construction width: 26 mm

Standard nominal flow rate (standardised to DIN 1343): 750 l/min

pneumatic working port: G1/8

Operating voltage: Via solenoid coil, must be ordered separately

Operating pressure: 0.2 MPa ... 1 MPa

Operating pressure: 2 bar ... 10 bar

Design: Poppet seat

Type of reset: Mechanical spring

Approval: c UL us - Recognized (OL)

Degree of protection: IP65

Nominal size: 5 mm

Sealing principle: Soft

Mounting position: optional

Manual override: Non-detenting

Type of piloting: Pilot actuated

Pilot air supply: Internal

Flow direction: Non-reversible

Symbol: 00991035

lap: Underlap

b valve: 0.34

C value: 3 l/sbar

Max. switching frequency: 3 Hz

Switching time off: 30 ms

Switching time on: 10 ms

Max. positive test pulse with 0 signal: 2200 μs

Max. negative test pulse with 1 signal: 3700 μs

Characteristic coil data: See solenoid coil, to be ordered separately

Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC: 1 - Low corrosion stress

LABS (PWIS) conformity: VDMA24364-B1/B2-L

Storage temperature: -40 °C ... 60 °C

Media temperature: -10 °C ... 60 °C

Ambient temperature: -5 °C ... 40 °C

Product weight: 220 g

Electrical connection: Via F coil, to be ordered separately

Type of mounting: Either: On manifold rail With through-hole

Pilot exhaust port 84: M5

Pneumatic connection, port 1: G1/8

Pneumatic connection, port 2: G1/8

Pneumatic connection, port 3: G1/8

Pneumatic connection, port 4: G1/8

Pneumatic connection, port 5: G1/8

Note on materials: RoHS-compliant

Material seals: NBR

Material housing: Die-cast aluminium

Dimension
