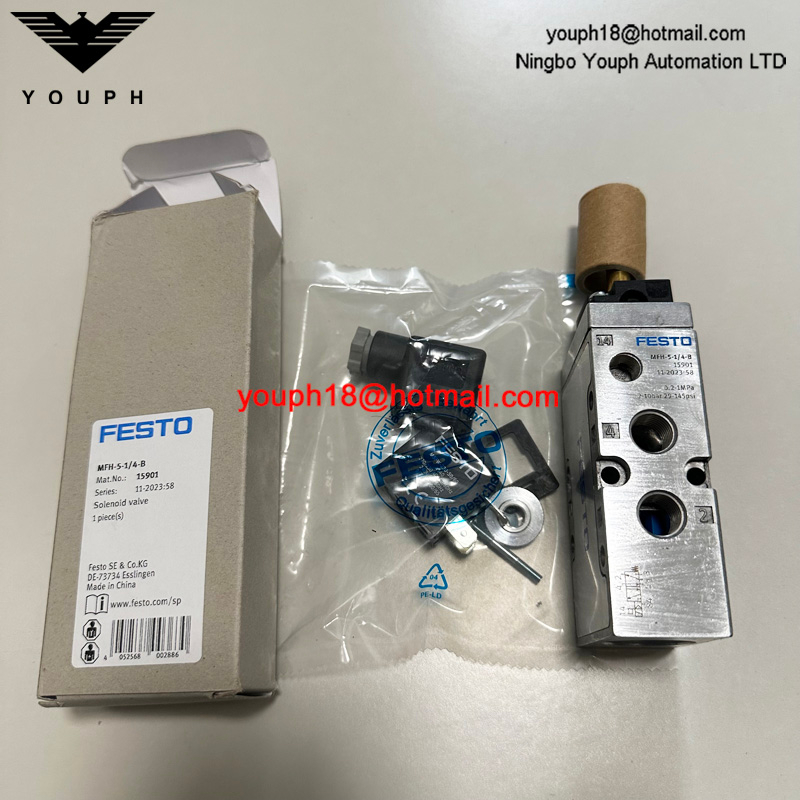

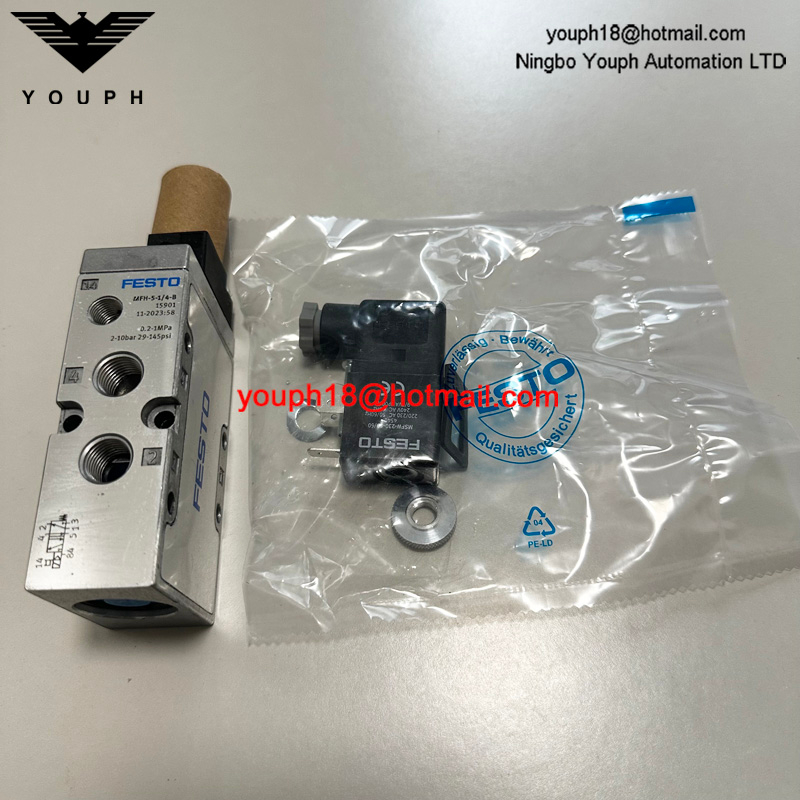

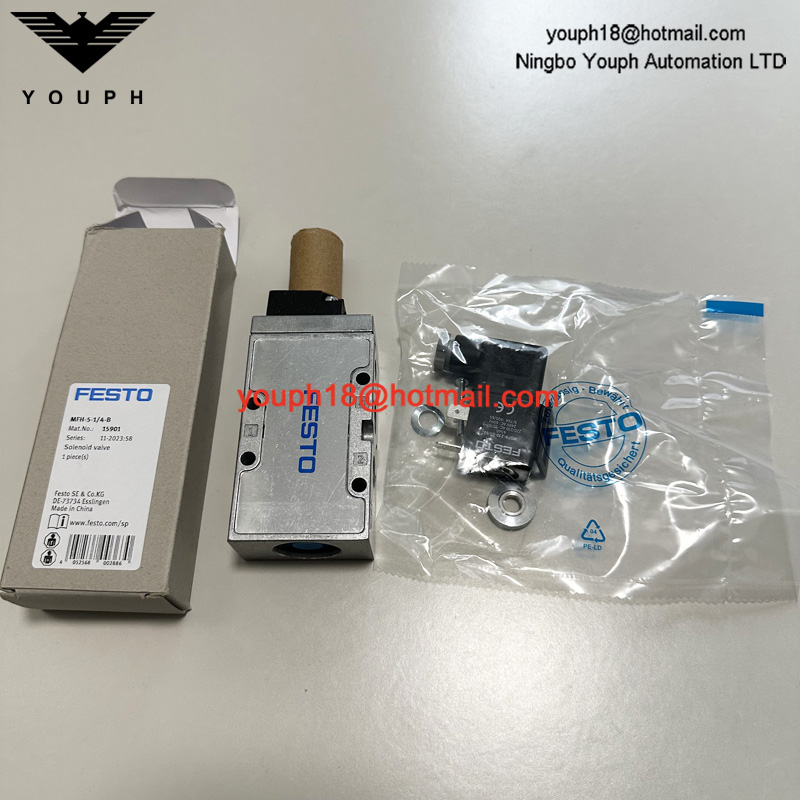

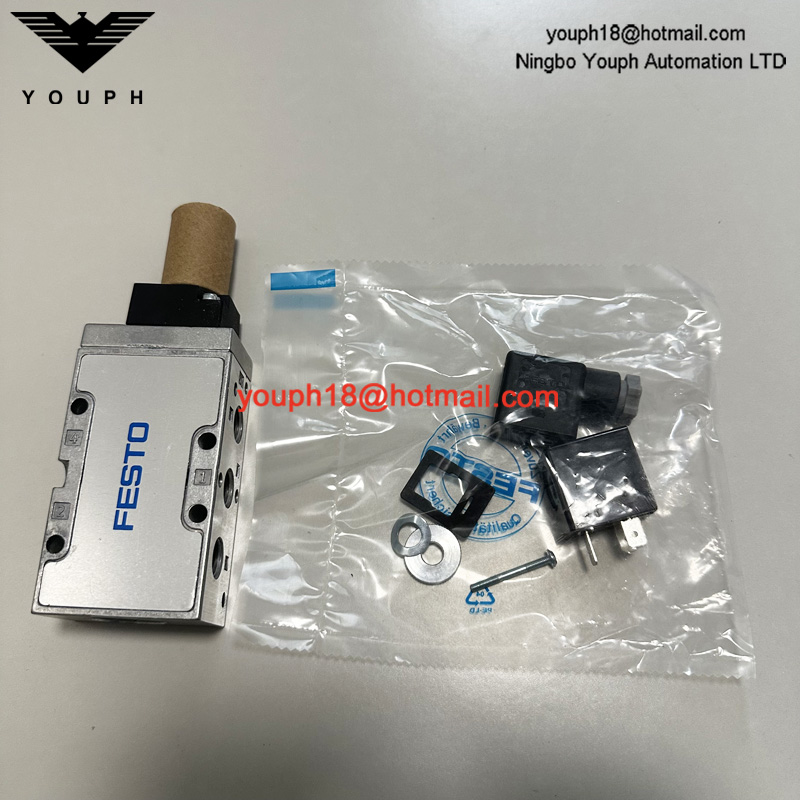

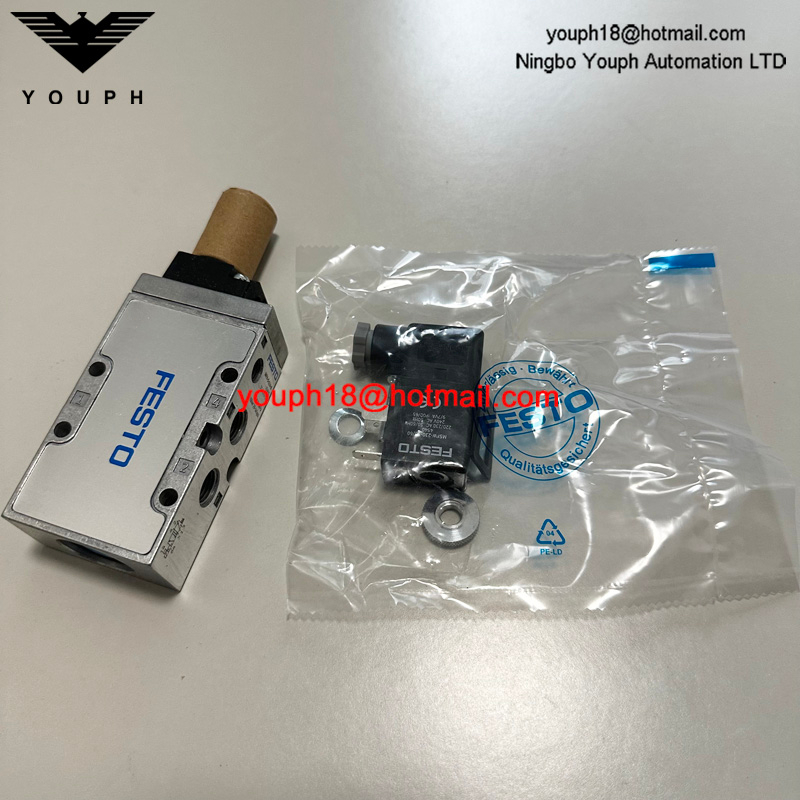

FESTO MFH-5-1/4-B 15901 With Solenoid coil 5/2-way Tiger 2000 Pneumatic valve

FESTO MFH-5-1/4-B 15901 With Solenoid coil 5/2-way Tiger 2000 Pneumatic valve

Valve function: 5/2-way, monostable

Type of actuation: Electric

Construction width: 32 mm

Standard nominal flow rate (standardised to DIN 1343): 1300 l/min

pneumatic working port: G1/4

Operating voltage: Via solenoid coil, must be ordered separately

Operating pressure: 0.2 MPa ... 1 MPa

Operating pressure: 2 bar ... 10 bar

Design: Poppet seat

Type of reset: Mechanical spring

Approval: c UL us - Recognized (OL)

Degree of protection: IP65

Nominal size: 7 mm

Grid dimension: 33 mm

Exhaust-air function: With flow control option

Sealing principle: Soft

Mounting position: optional

Manual override: Detenting

Type of piloting: Pilot actuated

Flow direction: Non-reversible

Symbol: 00991035

lap: Underlap

C value: 5.5l/sbar

Max. switching frequency: 3 Hz

Switching time off: 36 ms

Switching time on: 12 ms

Max. positive test pulse with 0 signal: 2200 μs

Max. negative test pulse with 1 signal: 3700 μs

Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC: 1 - Low corrosion stress

LABS (PWIS) conformity: VDMA24364-B1/B2-L

Storage temperature: -40 °C ... 60 °C

Media temperature: -10 °C ... 60 °C

Ambient temperature: -5 °C ... 40 °C

Product weight: 300 g

Electrical connection: Via F coil, to be ordered separately

Type of mounting: Either: On manifold rail With through-hole

Pilot exhaust port 84: M5

Pneumatic connection, port 1: G1/4

Pneumatic connection, port 2: G1/4

Pneumatic connection, port 3: G1/4

Pneumatic connection, port 4: G1/4

Pneumatic connection, port 5: G1/4

Note on materials: RoHS-compliant

Material seals: NBR

Material housing: Die-cast aluminium

Dimension
