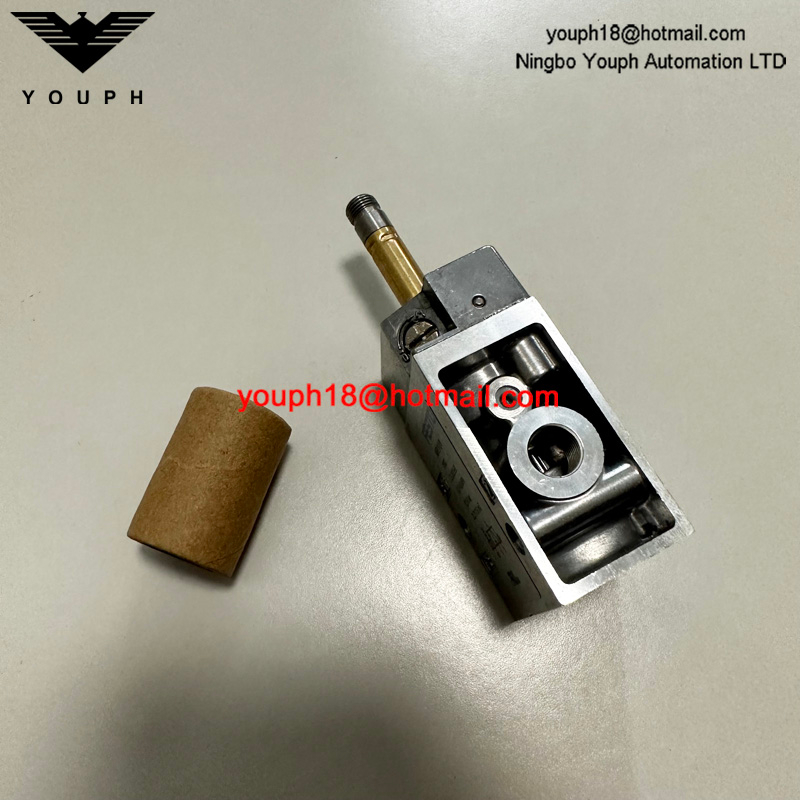

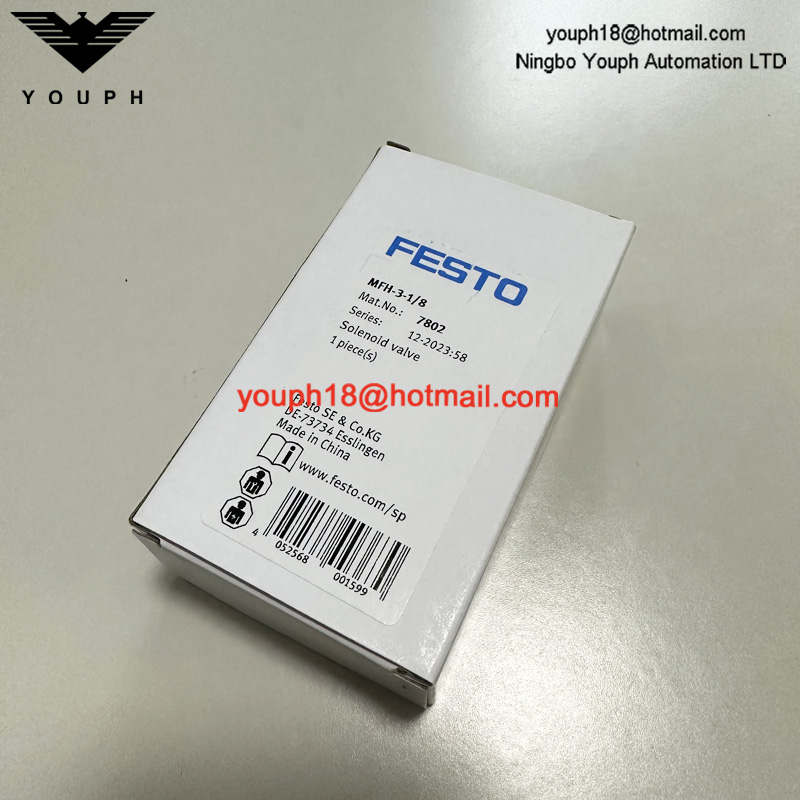

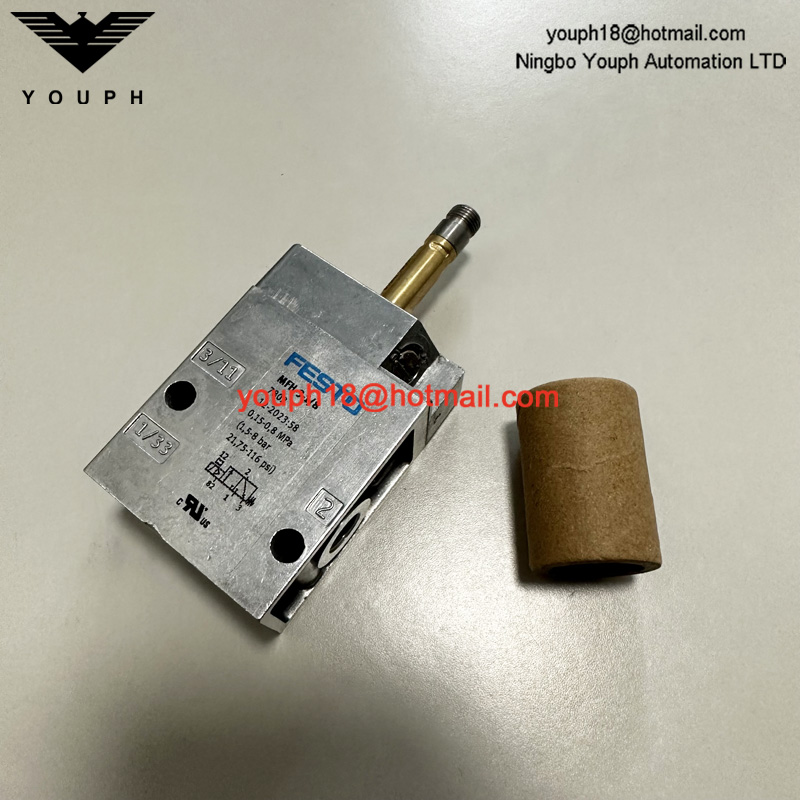

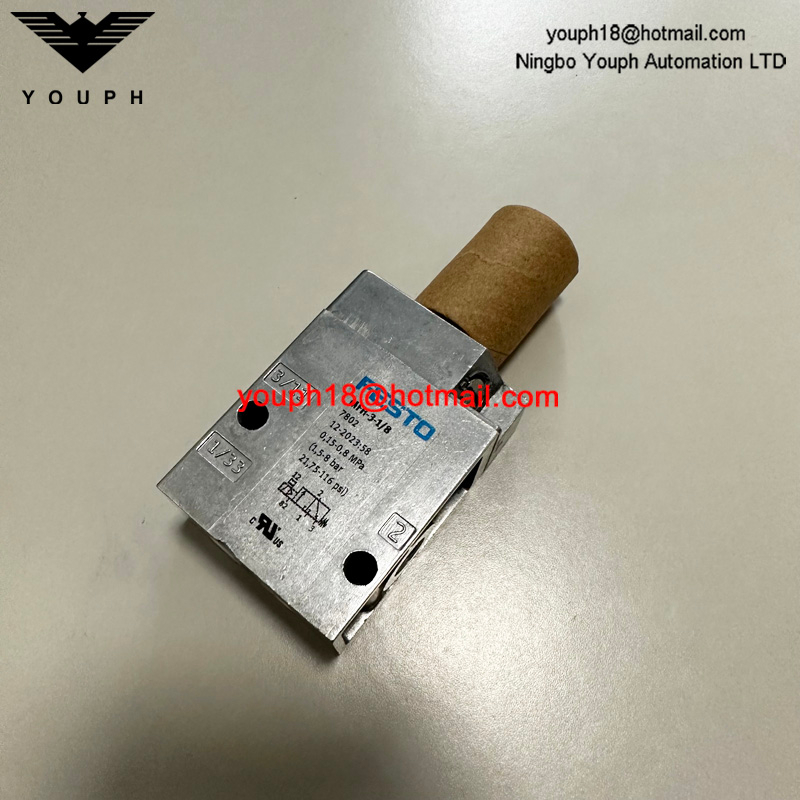

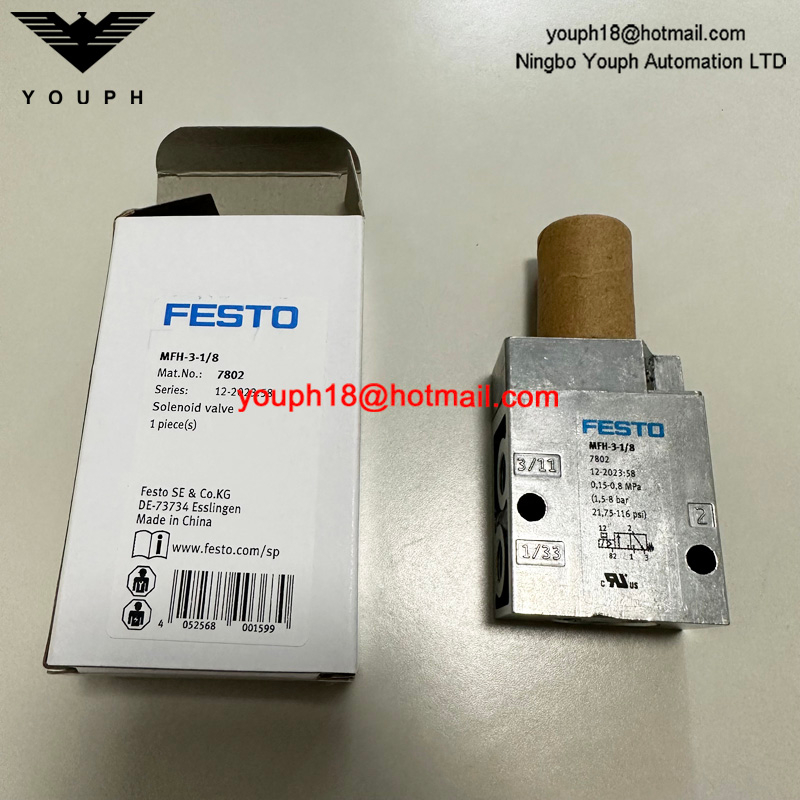

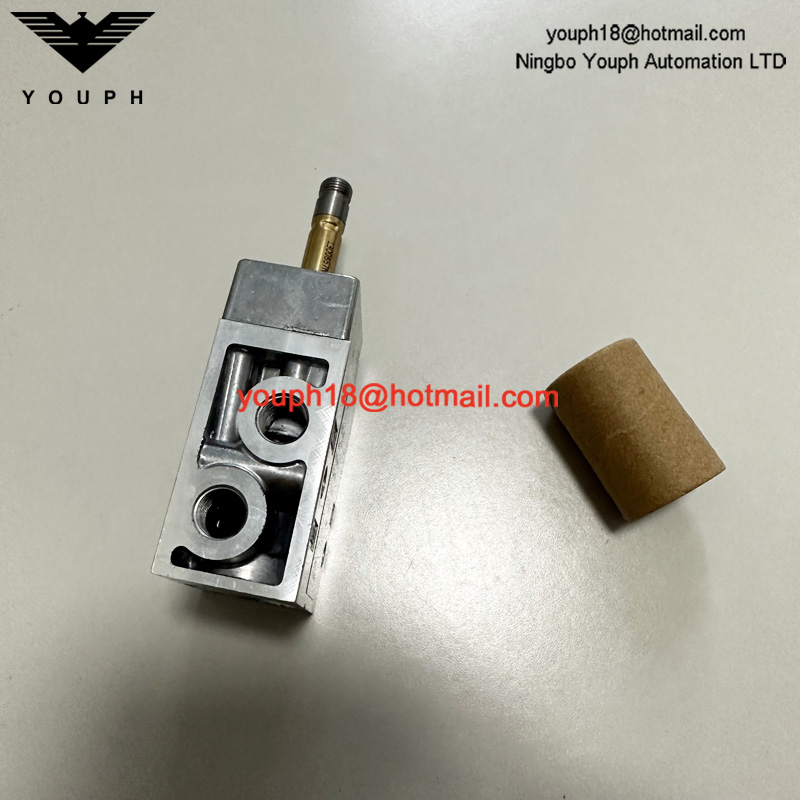

FESTO MFH-3-1/8 7802 G1/8" 3/2 Way Tiger Classic Solenoid Valve

FESTO MFH-3-1/8 7802 G1/8" 3/2 Way Tiger Classic Solenoid Valve

Flow rate: 500 ... 7500 l/min

Voltage:

12, 24, 42, 48 V DC

24, 42, 48, 110, 230, 240 V AC

Valve function: 3/2-way, closed, monostable

Type of actuation: Electric

Construction width: 26 mm

Standard nominal flow rate (standardised to DIN 1343): 500 l/min

pneumatic working port: G1/8

Operating voltage: Via solenoid coil, must be ordered separately

Operating pressure: 0.15 MPa ... 0.8 MPa

Operating pressure: 1.5 bar ... 8 bar

Design: Poppet seat

Type of reset: Mechanical spring

Approval: c UL us - Recognized (OL)

Degree of protection: IP65

Nominal size: 5 mm

Grid dimension: 27 mm

Exhaust-air function: With flow control option

Sealing principle: Soft

Mounting position: optional

Manual override: Detenting

Type of piloting: Pilot actuated

Flow direction: Non-reversible

Symbol: 00991041

lap: Underlap

Switching time off: 29 ms

Switching time on: 9 ms

Max. positive test pulse with 0 signal: 2200 μs

Max. negative test pulse with 1 signal: 3700 μs

Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC: 1 - Low corrosion stress

LABS (PWIS) conformity: VDMA24364-B1/B2-L

Storage temperature: -20 °C ... 60 °C

Media temperature: -10 °C ... 60 °C

Ambient temperature: -5 °C ... 40 °C

Product weight: 240 g

Electrical connection: Via F coil, to be ordered separately

Type of mounting: Either: On manifold rail With through-hole

Pilot exhaust port 82: M5

Pneumatic connection, port 1: G1/8

Pneumatic connection, port 2: G1/8

Pneumatic connection, port 3: G1/8

Note on materials: RoHS-compliant

Material seals: NBR

Material housing: Die-cast aluminium

General technical data

Pneumatic   connection	G1/8	G1/4	G1/2	G3/4
Valve function	3/2 way, single solenoid
Design	Poppet seat
Overlap	Negative overlap
Sealing principle	Soft
Actuation type	Electrical
Reset method	Mechanical spring
Type of control	Piloted
Pilot air supply	Internal or external
Flow direction	Non-reversible (reversible/reversible with   restrictions with external pilot air supply)
Exhaust function	Can be throttled
Manual override	Detenting
Type of mounting	Via through-hole or on manifold rail/manifold block)
Mounting position	Any
Electrical connection	Via F solenoid coil, to be ordered separately
Port for venting hole	M5 (only ATEX types)
Pilot exhaust air port 82/84	M5
Pilot air port 12	M5	M5	G1/8	G1/8
b value	-	-	0.3	-
Nominal width (mm)	5	7	14	19
Standard nominal flow rate (l/min)	500	800	3700	7500
Product weight (g)	220	340	1100	1260
