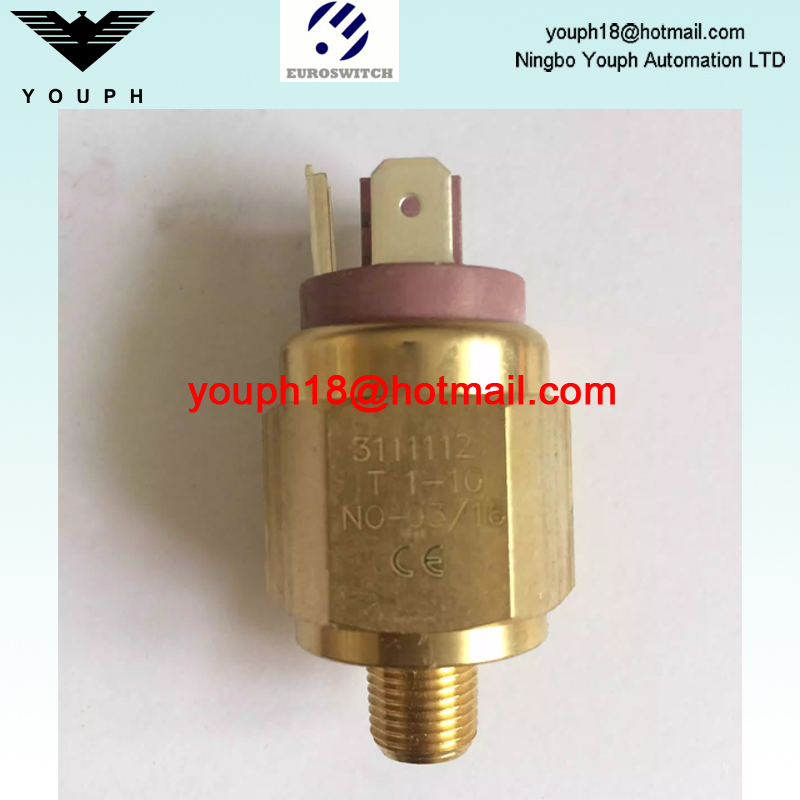

Euroswitch 3111112 3110211 31 Series Textile machine tool Diaphragm pressure switch

Euroswitch 3111112 3110211 31 Series Textile machine tool Diaphragm pressure switch

EUROSWITCH 31 31V DIAPHRAGM PRESSURE SWITCH datasheet.pdf

EUROSWITCH 31 31V DIAPHRAGM PRESSURE SWITCH introduction.pdf

Introduction

Sensitive element: Diaphragms

Setting range: 0,1 - 50 bar

Contact type: N.O. / N.C.

Contact rating: 0,5 A / 250 Vac

Electrical connection: Faston 6,3x0,8 / Serrafilo

Certifications: ATEX

Industrial and automotive applications often require that a previously set pressure value be converted into an electric signal, which is used to either start off a machine cycle or signal a specific situation. (e.g. system leaks, alarms, etc. These operations are generally controlled by devices that are tuned according to the application and are referred to as PRES-SURE SWITCHES and VACUUM SWITCHES.

Maximum working pressure

The maximum pulsating pressure to which the sensor can be subjected without causing any kind of electro-mechanical damage, while maintaining the original technical specifications.

Settings

Pressure switches must not be used as safety components.

For an accurate reading of the switching point, a maximum pressure variation of 1 bar/s is required on SPST pressure switches. Pressure variation for SPDT pressure switches depends on the setting point and model and may range from min.0.1 bar/s to max. 15 bar/s. Please contact Euroswitch for further information. The maximum permissible pressure variation rate is 1,000 bar/s.

Euroswitch makes pressure switches with either adjustable and fixed setting. In models with adjustable setting, you merely need to turn the adjusting screw to set the desired pressure, taking care not to compress the spring fully. Rotate clockwise to increase the pressure. Then lock the screw with sealant. Pressure switches with adjustable setting can be factory-set to the pressure required by the customer. This value indicates the switching point at increasing pressure. On request, the setting can be done at decreasing pressure. The setting is made with minimum electric load in the contact circuit The stated tolerance is guaranteed for a brand-new product operating at room temperature.

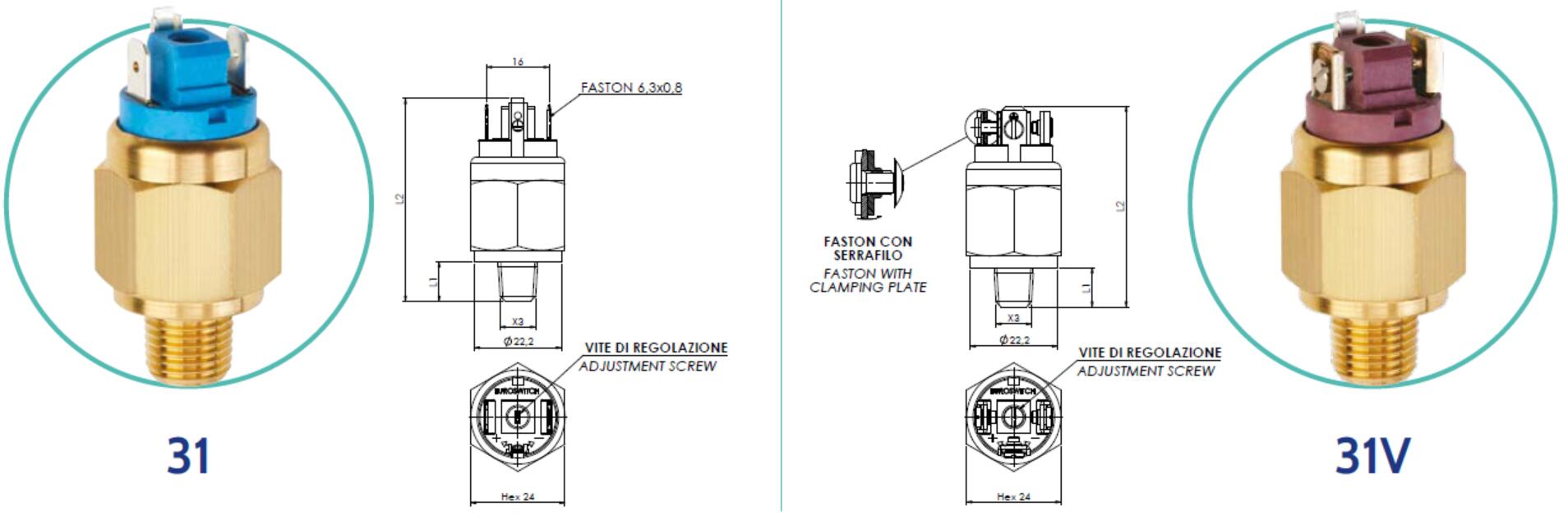

Dimension

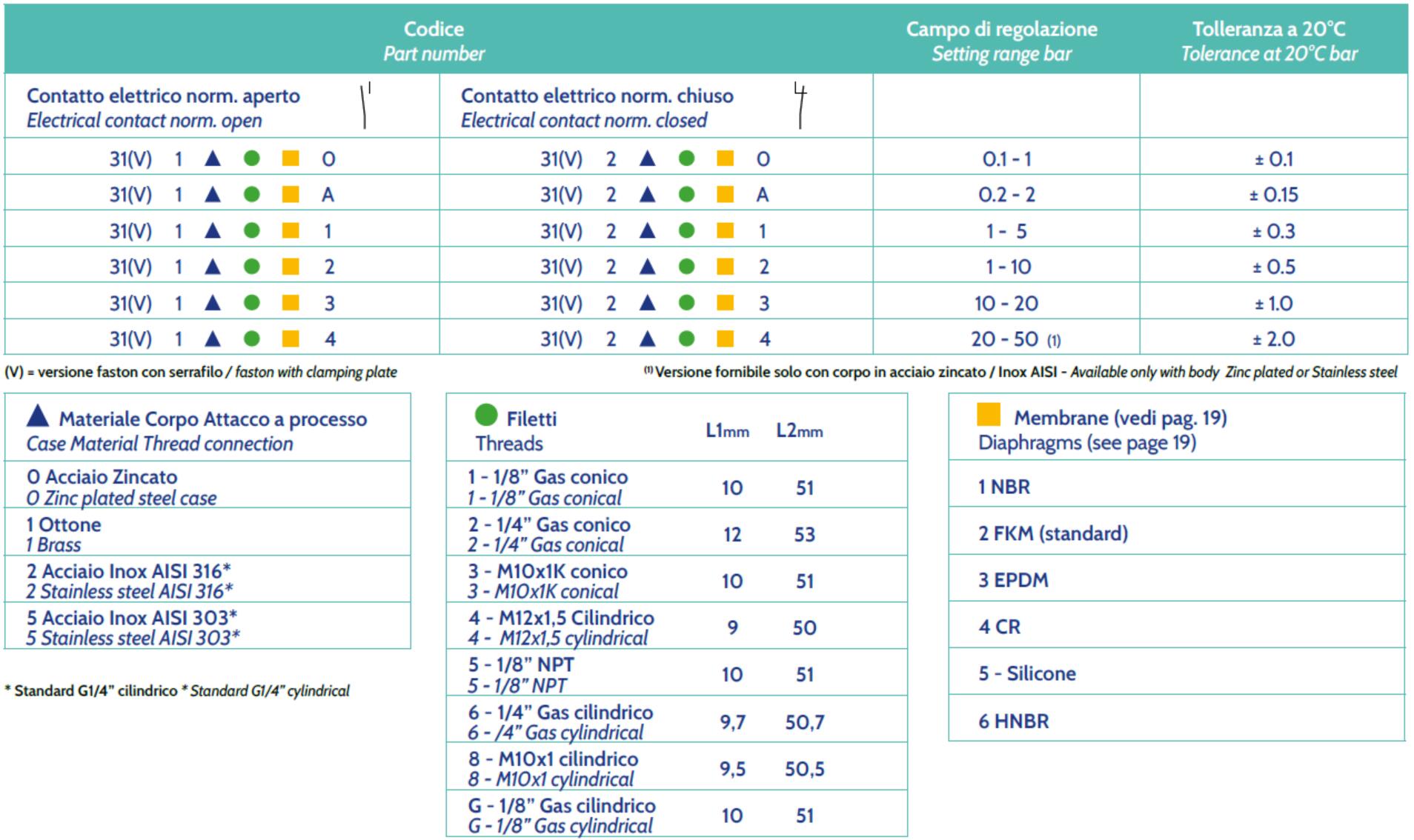

Order Code

Specification
