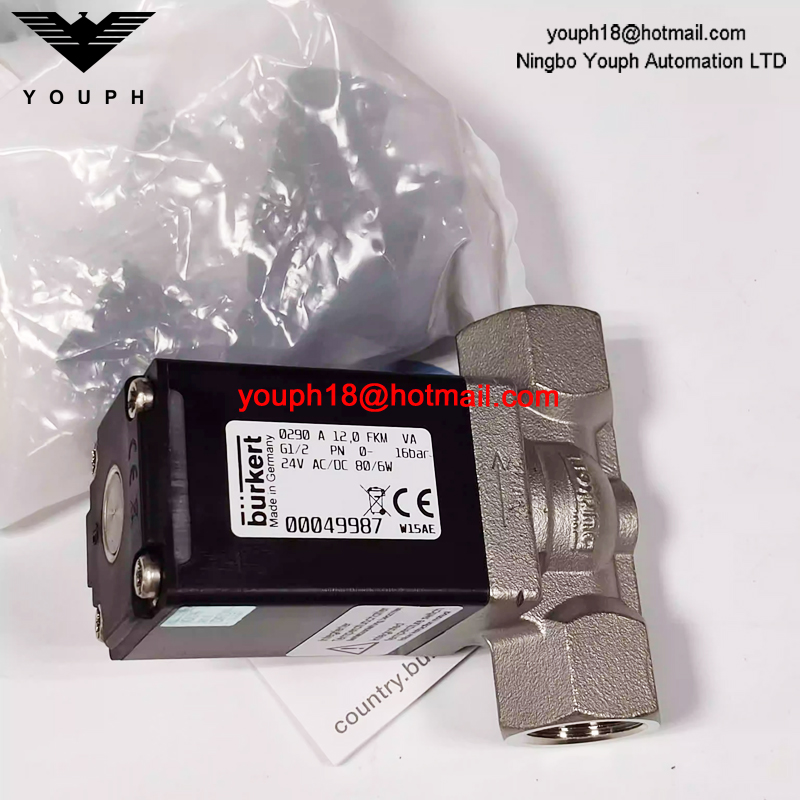

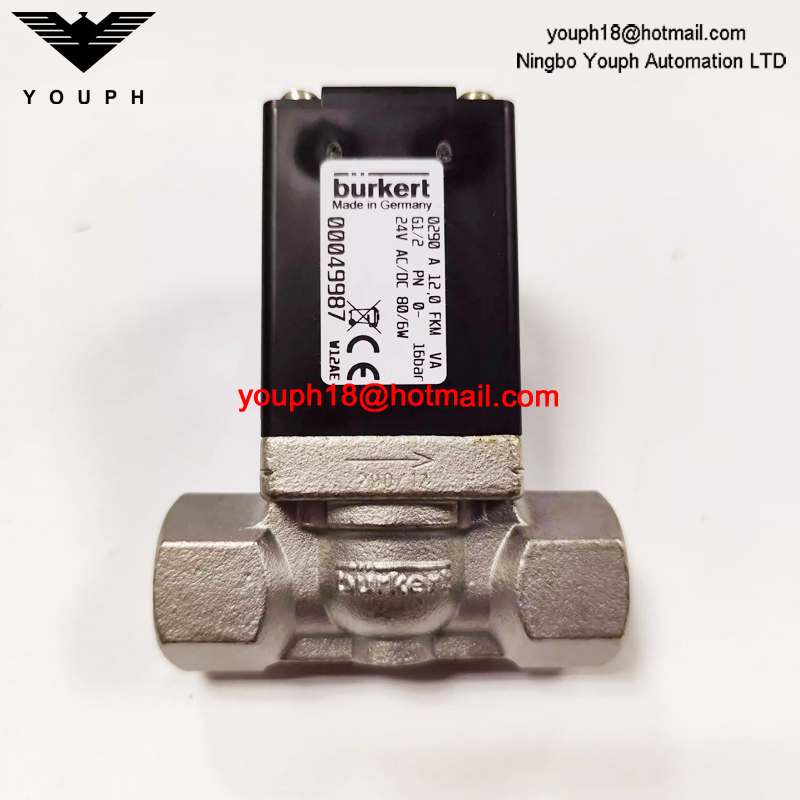

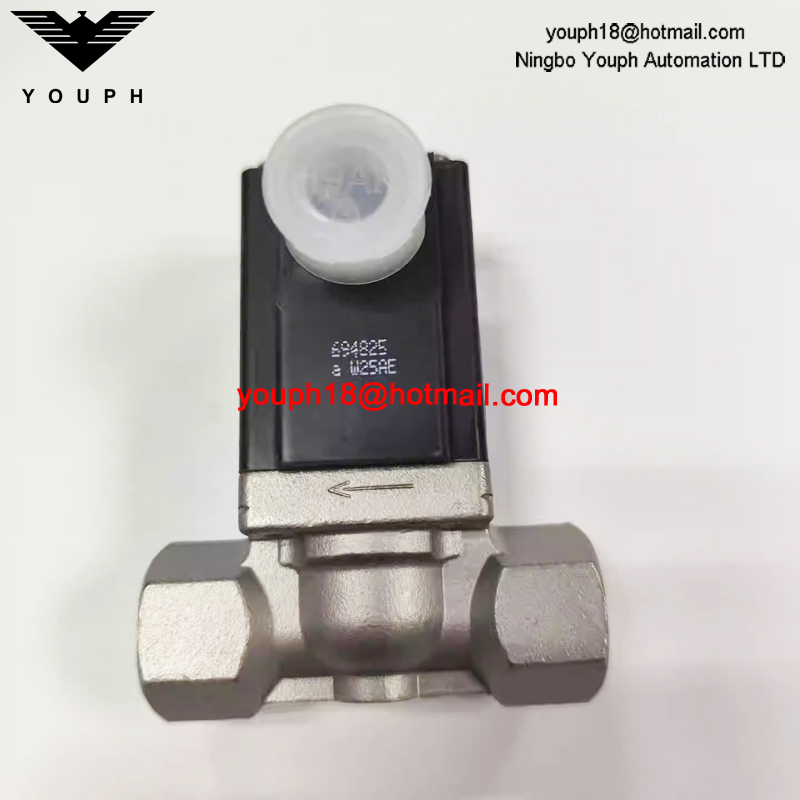

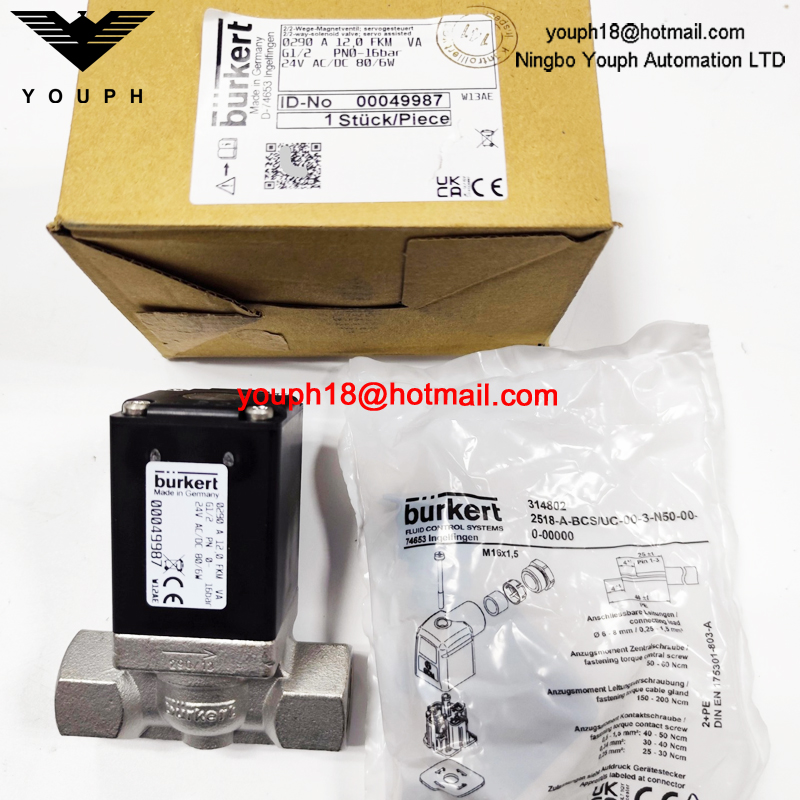

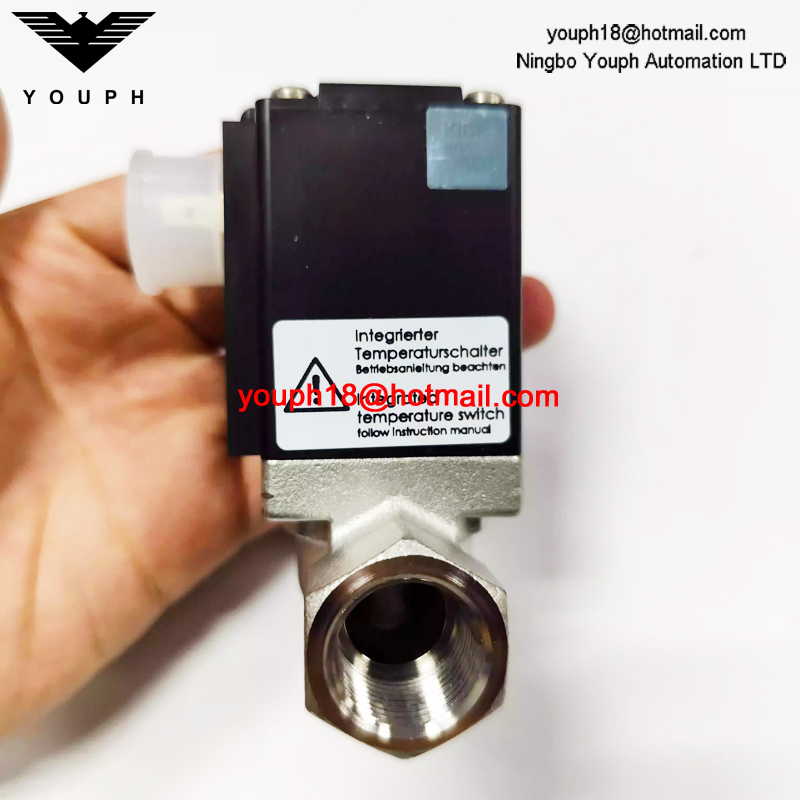

Burkert 00049987 0290 A Series G1/2" FKM Diaphragm Servo-controlled Stainless Steel Solenoid Valve

Burkert 00049987 0290 A Series G1/2" FKM Diaphragm Servo-controlled Stainless Steel Solenoid Valve

24V AC/DC 80/6W

Servo-assisted 2/2-way diaphragm valve

• Vibration-proof, block screwed coil system

• Energy-saving power reduction for all DC variants

• Fix-coupled diaphragm opens without differential pressure

• Servo-assisted diaphragm valve up to DN 50

Type description

Valve 0290 is a servo-assisted diaphragm valve. The valve opens without differential pressure. The opening process is facilitated by the fix-coupling of the diaphragm to the magnetic core. The integrated ‘soft-kick’ function ensures gentle opening. Various diaphragm materials are available depending on the actual application. The range includes variants with a stainless steel body. The solenoid coils are moulded with an epoxy that has a high level of chemical resistance. Kick and drop electronics are moulded into all DC solenoid variants for reduced electrical power consumption.

General technical data

Material specifications

Type label

Brass body ordering chart

Stainless steel body ordering chart

Dimensions
