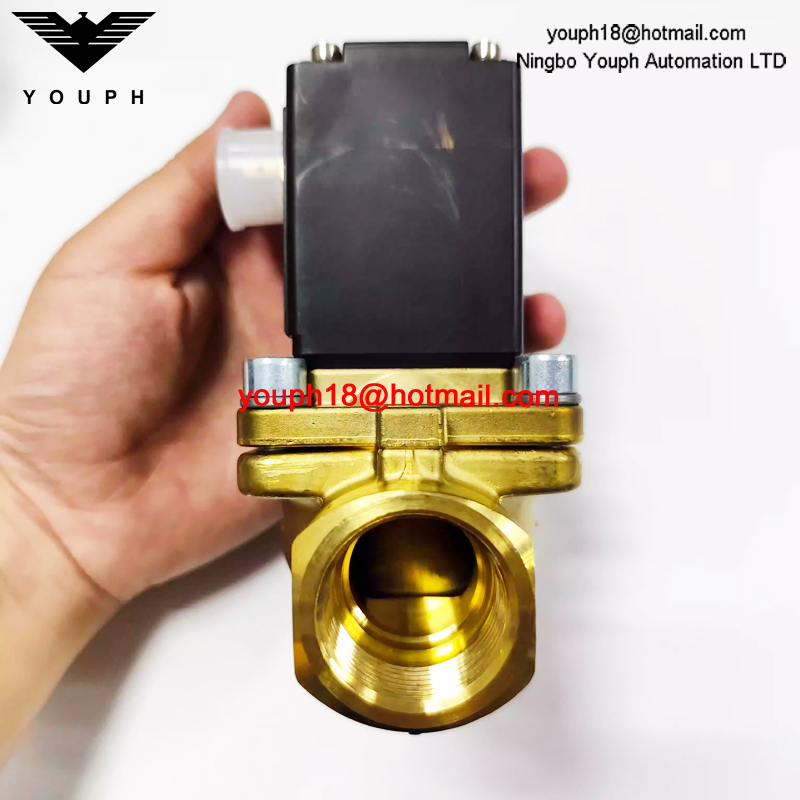

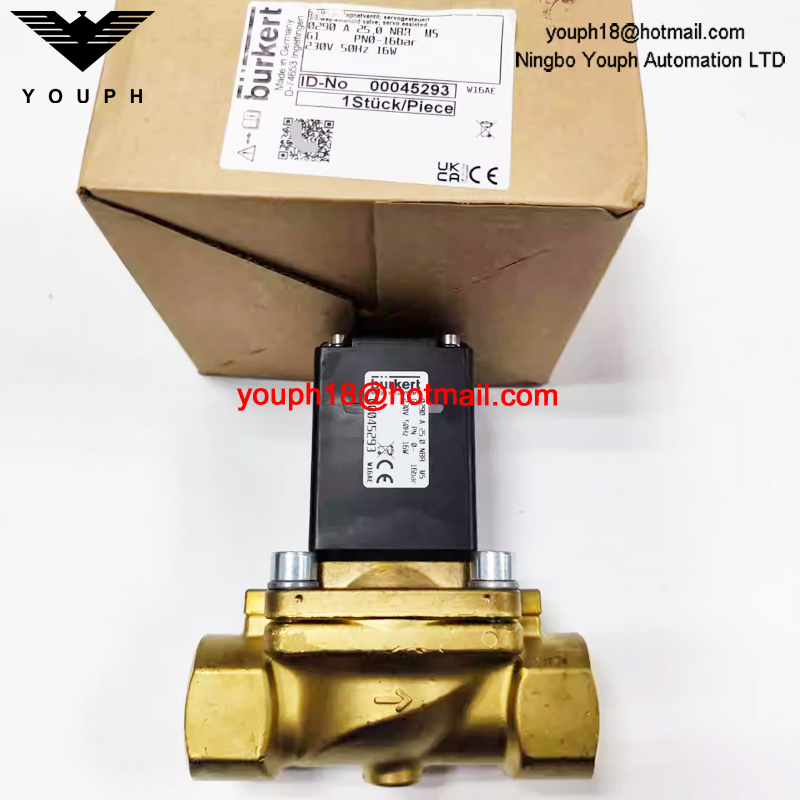

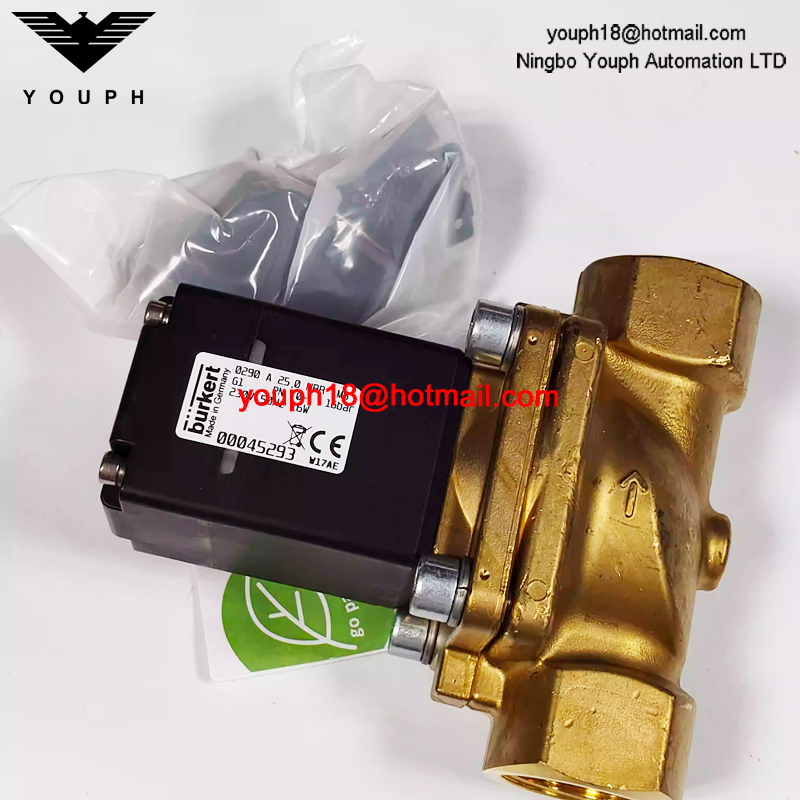

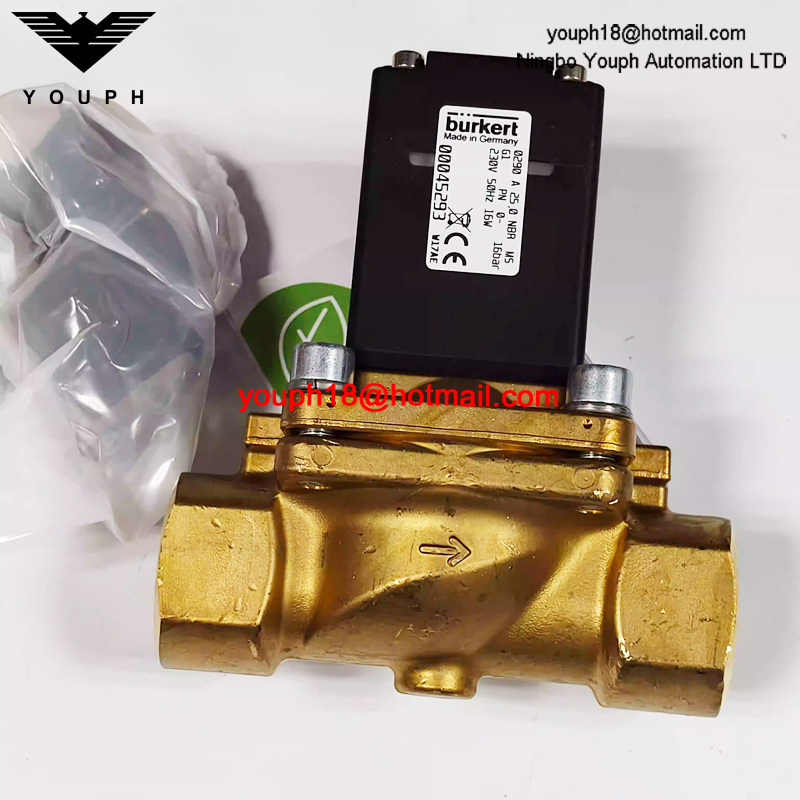

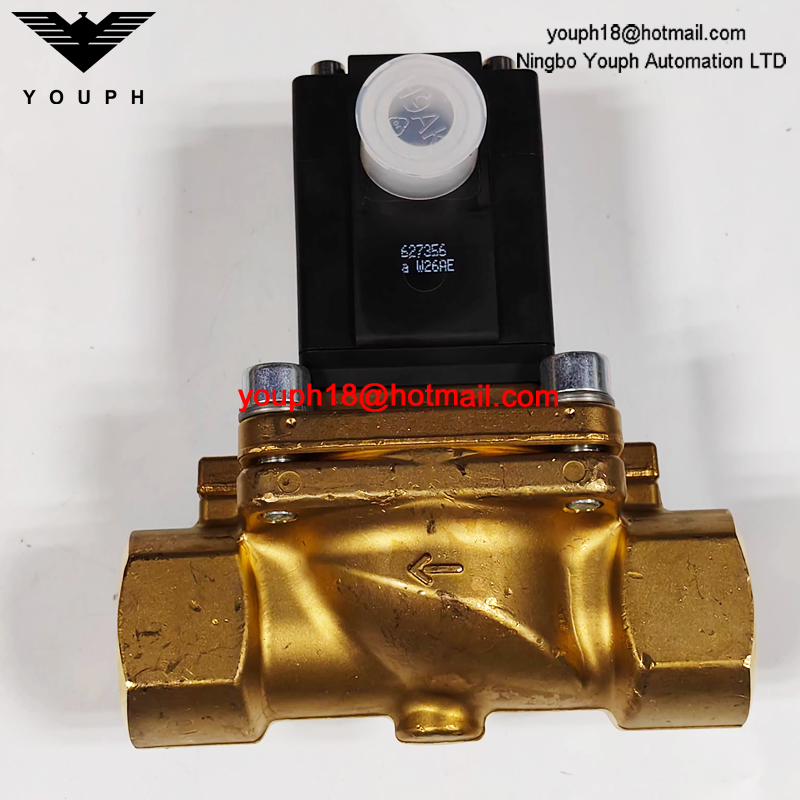

Burkert 00045293 0290 A 25,0 NBR MS 230V 50Hz 16W G1" Servo-controlled Solenoid Valve

Burkert 00045293 0290 A 25,0 NBR MS 230V 50Hz 16W G1" Servo-controlled Solenoid Valve

Type description

Valve 0290 is a servo-assisted diaphragm valve. The valve opens without differential pressure. The opening process is facilitated by the fix-coupling of the diaphragm to the magnetic core. The integrated ‘soft-kick’ function ensures gentle opening. Various diaphragm materials are available depending on the actual application. The range includes variants with a stainless steel body. The solenoid coils are moulded with an epoxy that has a high level of chemical resistance. Kick and drop electronics are moulded into all DC solenoid variants for reduced electrical power consumption.

Servo-assisted 2/2-way diaphragm valve

• Vibration-proof, block screwed coil system

• Energy-saving power reduction for all DC variants

• Fix-coupled diaphragm opens without differential pressure

• Servo-assisted diaphragm valve up to DN 50

General technical data

Material specifications

Type label

Brass body ordering chart

Stainless steel body ordering chart

Dimensions
