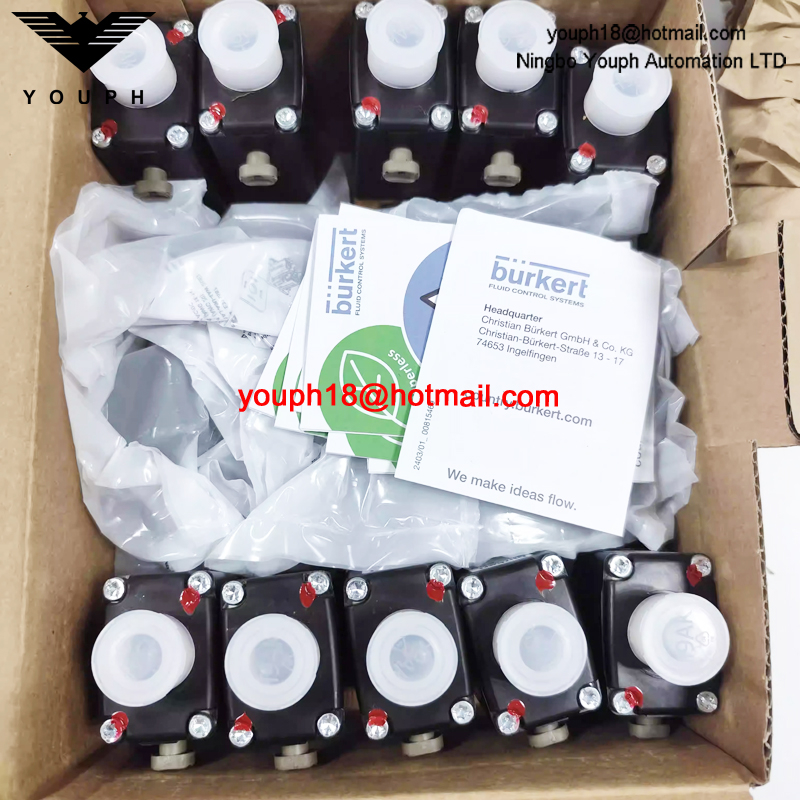

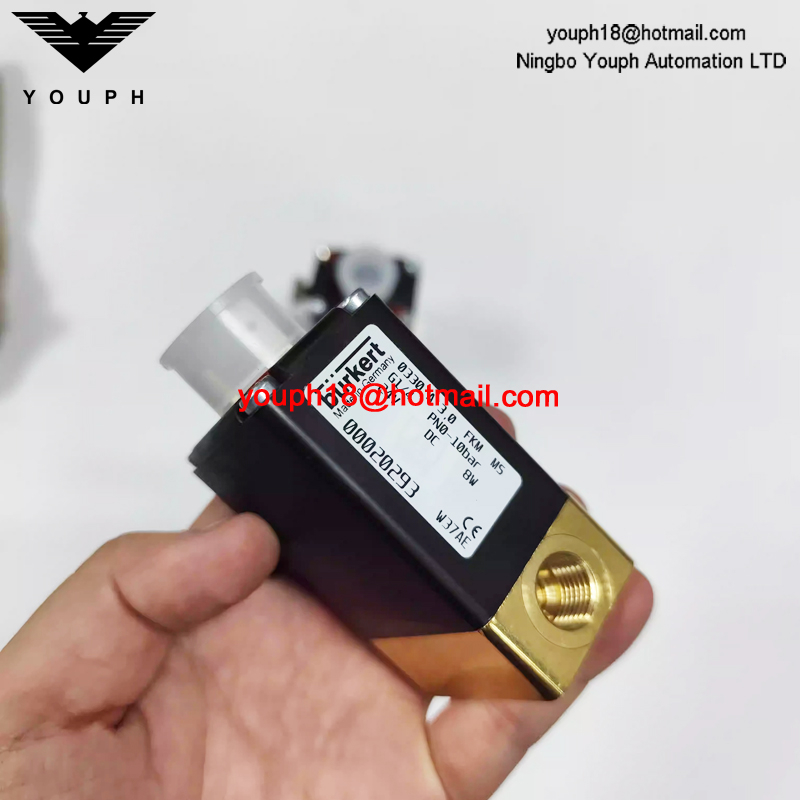

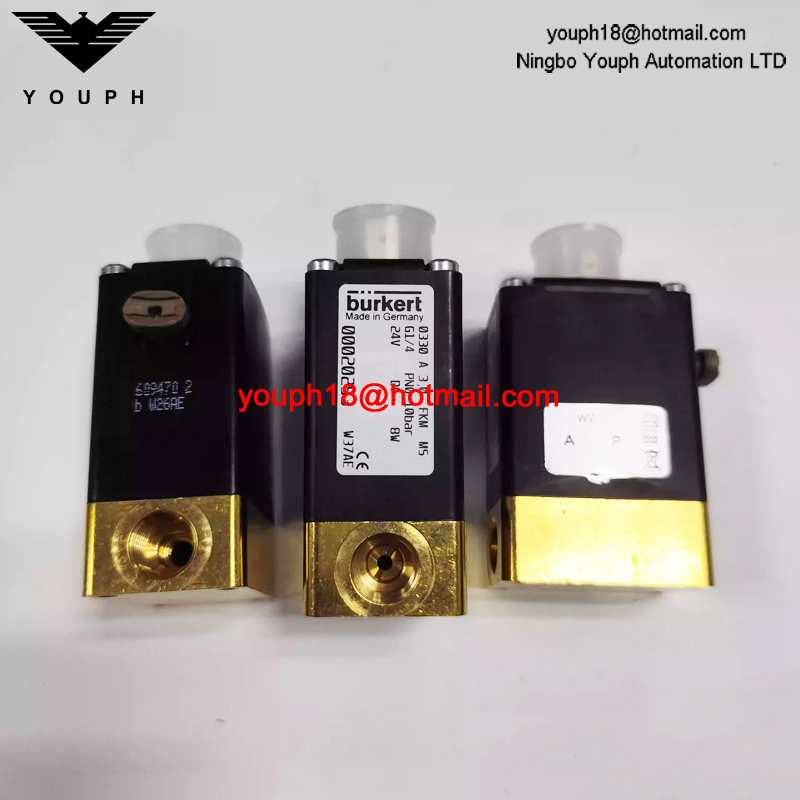

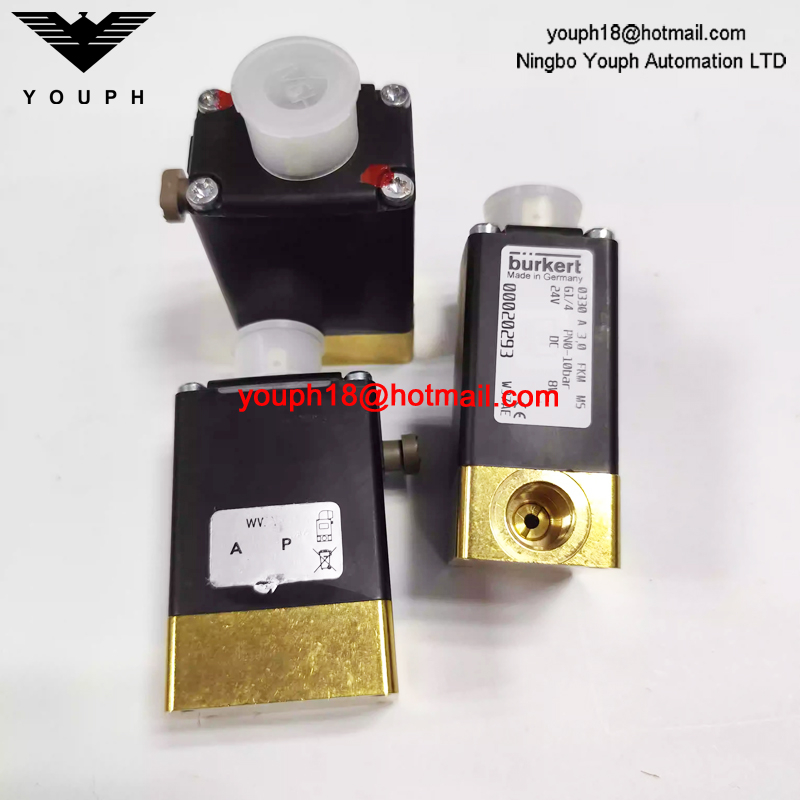

Burkert 00020293 0330A Series FKM Diaphragm 2/2-way Direct-acting Normally Closed Solenoid Valve

Burkert 00020293 0330A Series FKM Diaphragm 2/2-way Direct-acting Normally Closed Solenoid Valve

Direct-acting 2/2 or 3/2-way pivoted armature valve

• Direct-acting, media-separated valve up to nominal diameter DN 5

• Maintenance-free pivoted armature technology

• Vibration-proof, block screwed coil system

• Service-friendly, robust manual override

• Explosion-proof variants

Type description

The 0330 valve is a direct-acting, media-separated pivoted armature valve. It is available as a 2/2 and 3/2-way variant. As a 3/2-way variant, it can be used as a distributor or mixing valve. Various diaphragm materials and circuit functions are available depending on the actual application. The housing range consists of brass, stainless steel, PEEK and polypropylene. The solenoid coils are moulded with a chemically resistant epoxy. Since the coil system is separated from the medium by a diaphragm, the valve is especially suitable for critical media such as aggressive acids and alkalis. The 0330 is equipped with manual override for start-up and testing. To reduce energy demands, all the coils can be delivered with electronic power reduction or as an impulse variant. The switching status can be indicated via position feedback as a binary or NAMUR signal.

General technical data

Circuit functions

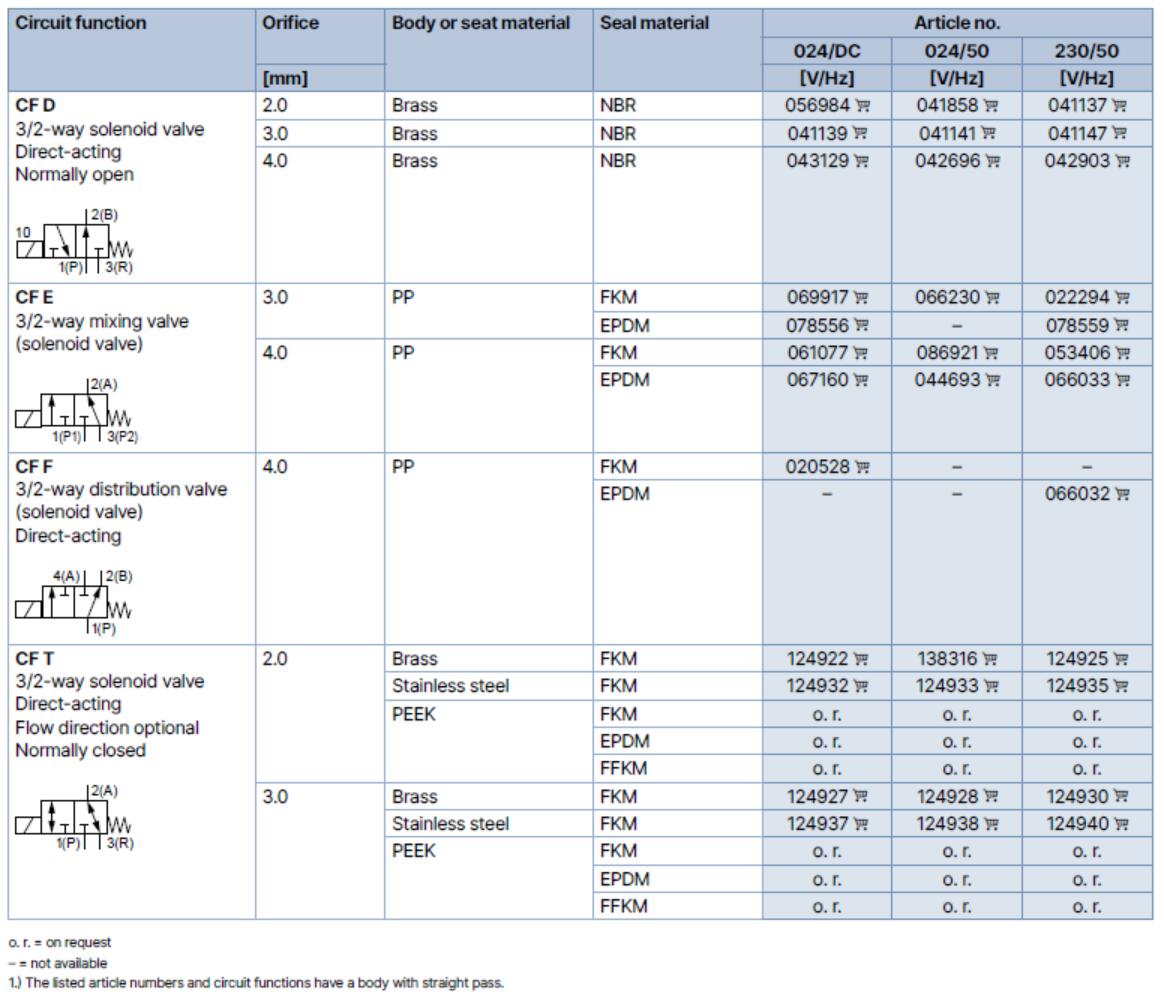

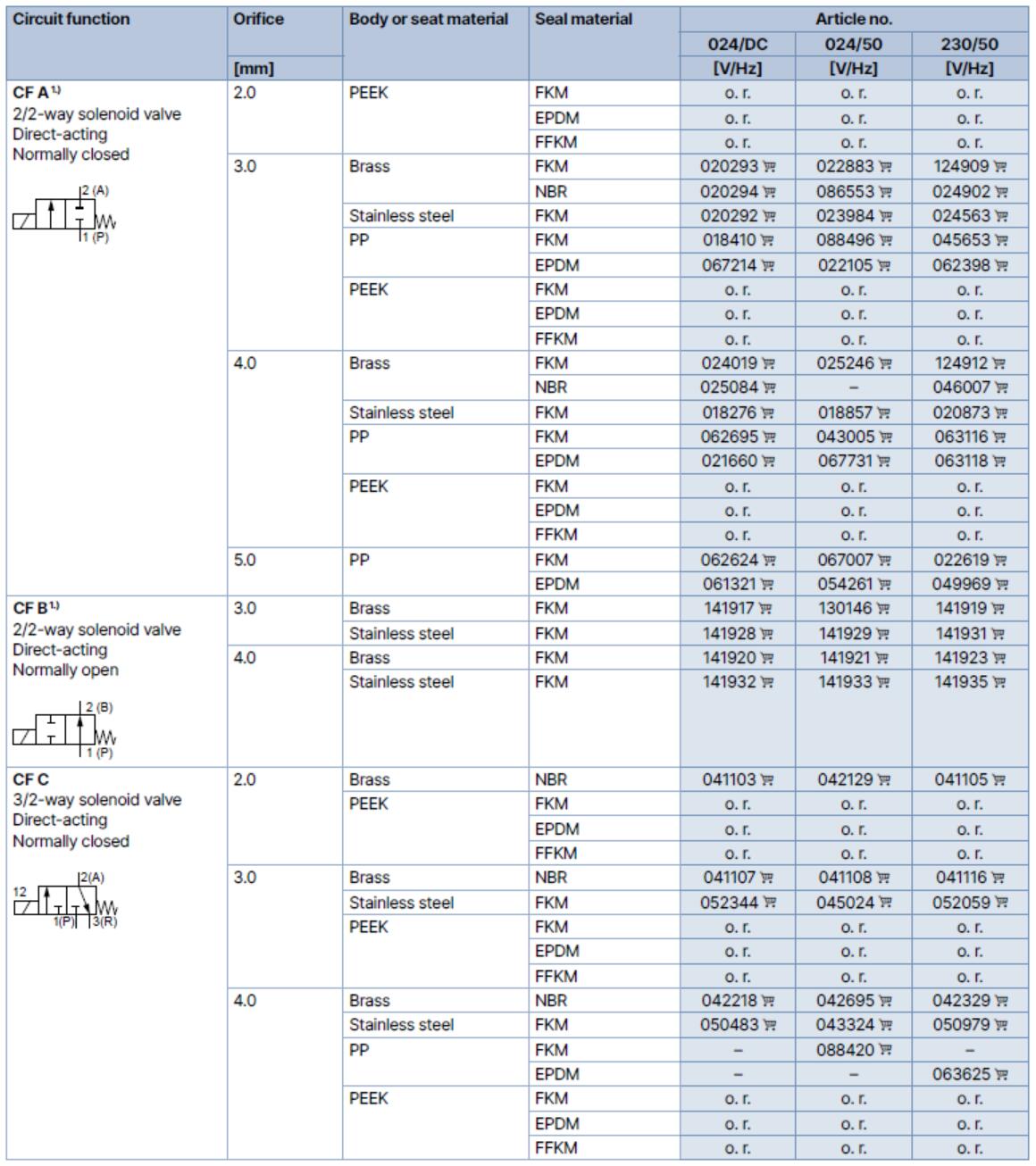

Ordering chart

Dimension for metal body

Dimension for plastic body
