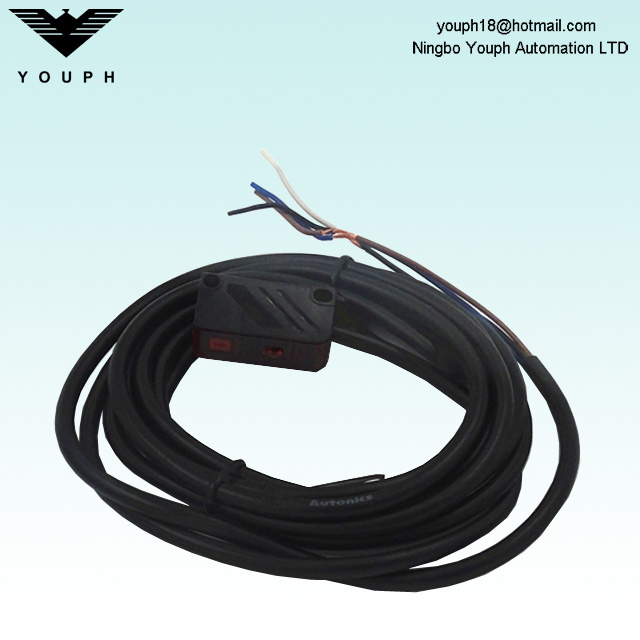

Autonics BY500-TDT Through-beam Small Emitter Receiver Synchronizing Photo Sensor

Autonics BY500-TDT Through-beam Small Emitter Receiver Synchronizing Photo Sensor

Features

BY Series

Small and Amplifier Built-in type

Small emitter / receiver synchronizing type

Photoelectric Sensor

1. Small size: W12×H16×D30mm

2. Minimizing malfunction by extraneous light by synchronizing emitter and receiver

3. Reverse power polarity and overcurrent protection circuit

4. Fast response speed: Max. 1ms

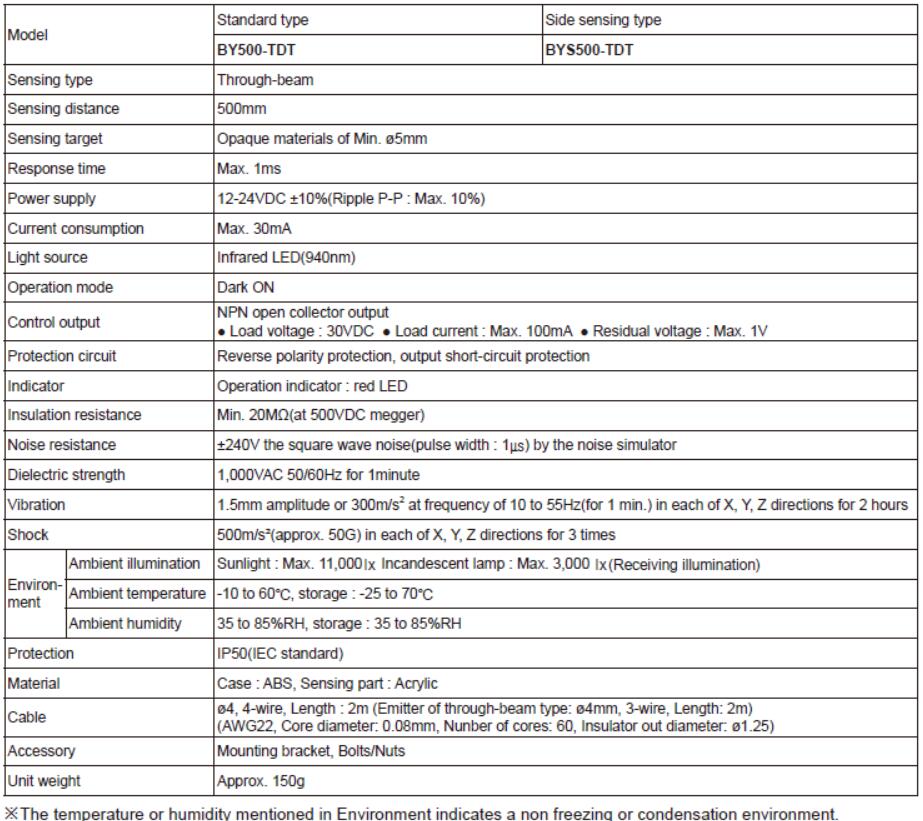

Specification

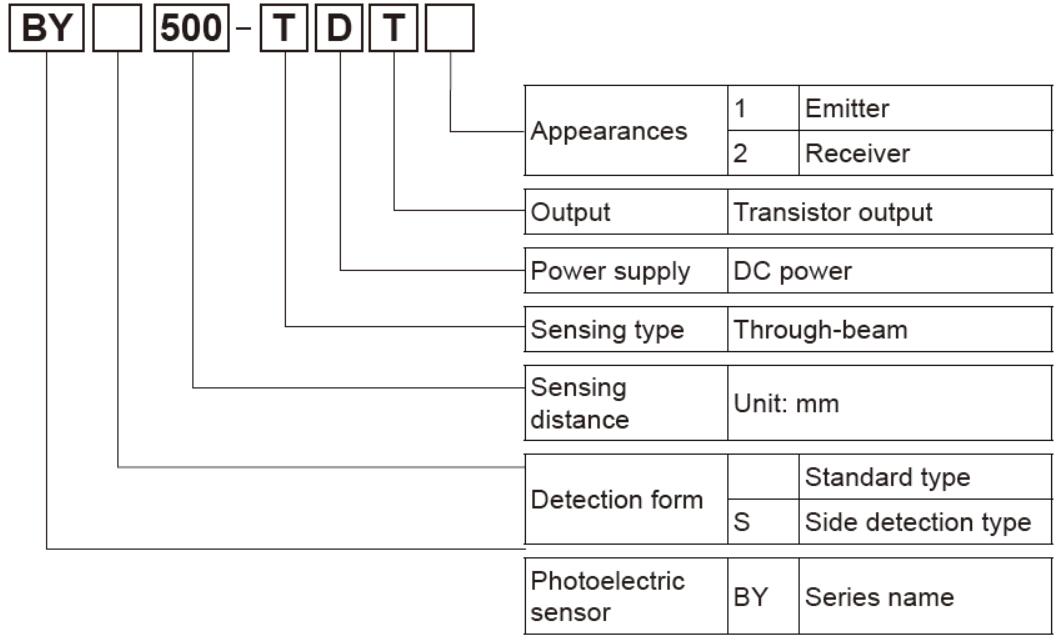

Order Code

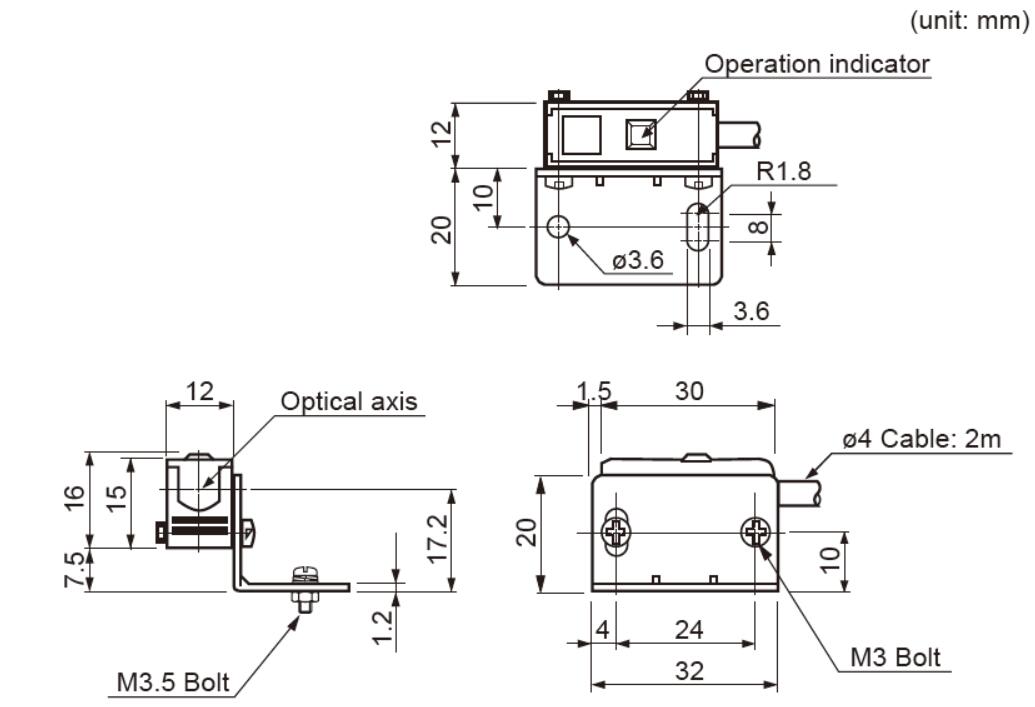

Dimension
