| Quantity: | |
|---|---|
BW40-20
Autonics

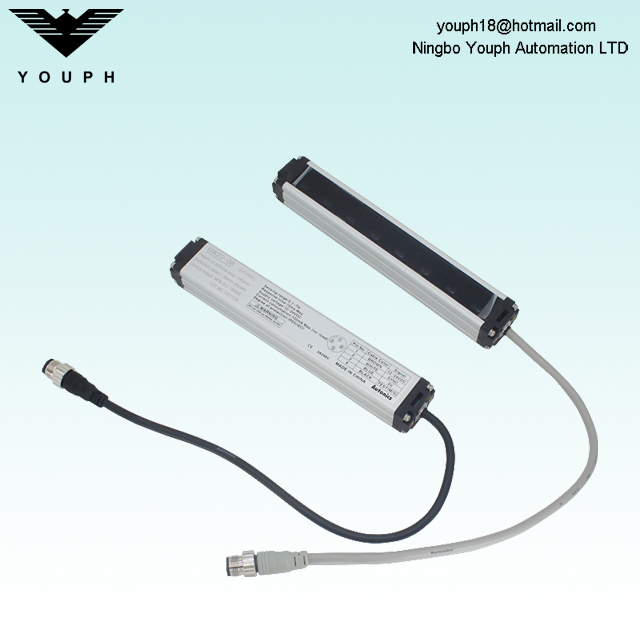

Autonics BW40-04 06 08 10 12 14 16 18 20 22 24 Emitter Receiver Transmitted beam Area Sensor
Features
BW Series
Through-beam type
Transmitted beam type
Area Sensor
1. Long sensing distance up to 7M
2. IP65 rated waterproof structure (IEC standard)
3. Increased sensing stability by minimizing the non sensing area
4. Easy identification of the side, front and long distance with high luminance twin operation indicators
5. Includes self-diagnosis function, mutual inter ference provention function, external diagnosis function.
6. Polished design & slim size (W28.6X H22.6XLOmm)
7. 22 types of products (Optical axis : 20/40mm, Sensing height : 120~ 940mm)
Specification
| Model | NPN open collector output | BW20-08 BW20-20 BW20-32 BW20-44 BW20-12 BW20-24 BW20-36 BW20-48 BW20-16 BW20-28 BW20-40 | BW40-04 BW40-10 BW40-16 BW40-22 BW40-06 BW40-12 BW40-18 BW40-24 BW40-08 BW40-14 BW40-20 |
| PNP open collector output | BW20-08P BW20-20P BW20-32P BW20-44P BW20-12P BW20-24P BW20-36P BW20-48P BW20-16P BW20-28P BW20-40P | BW40-04P BW40-10P BW40-16P BW40-22P BW40-06P BW40-12P BW40-18P BW40-24P BW40-08P BW40-14P BW40-20P | |
| Sensing method | Through-beam type | ||
| Sensing distance | 0.1 to 7m | ||
| Min. sensing target | Opaque material of min. Ø30mm | Opaque material of min. Ø50mm | |
| Optical axis pitch | 20mm | 40mm | |
| Number of optical axes | 8 to 48 | 4 to 24 | |
| Sensing height | 140 to 940mm | 120 to 920mm | |
| Response time | Max. 10ms | ||
| Power supply | 12-24VDCᜡ ±10% (ripple P-P: max. ±10%) | ||
| Current consumption | Emitter: max. 120mA, Receiver: max. 120mA | ||
| Weight | BW20-48: Approx. 2.1KG(approx. 1.4KG) | BW40-24: Approx. 2.1KG(approx. 1.4KG) | |

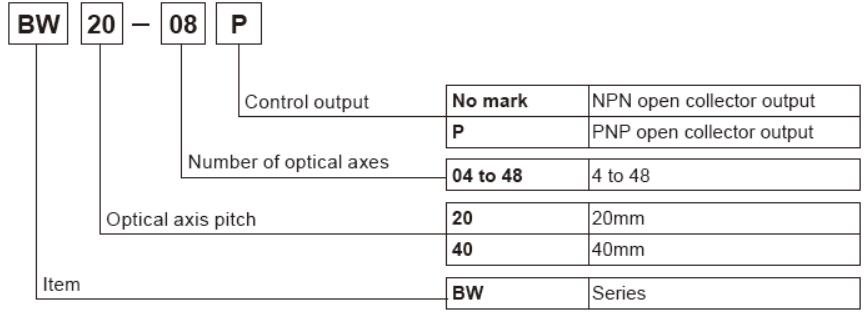

Order Code

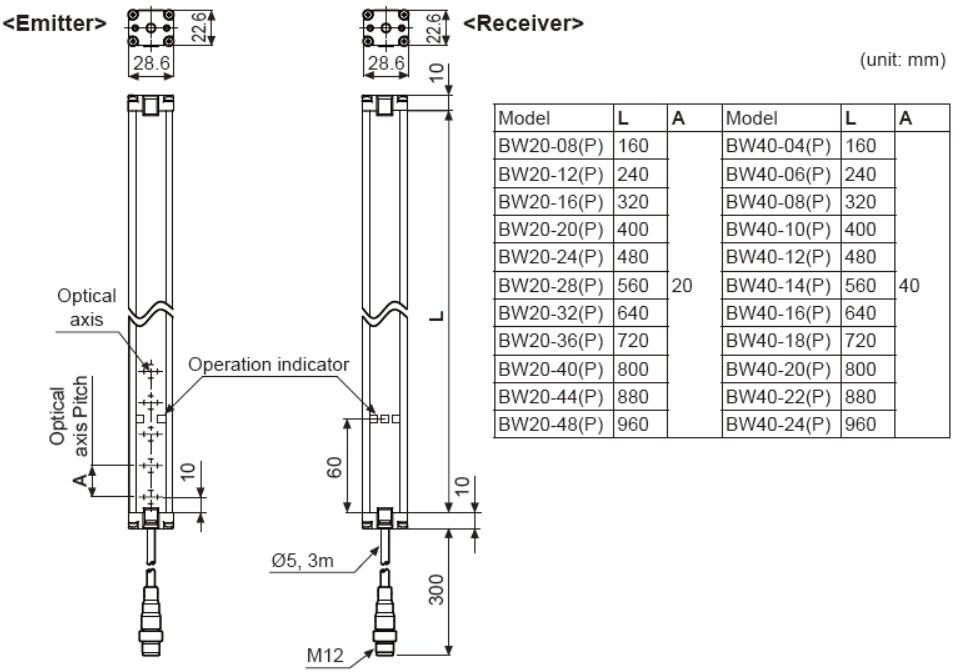

Dimension
Autonics BW40-04 06 08 10 12 14 16 18 20 22 24 Emitter Receiver Transmitted beam Area Sensor
Features
BW Series
Through-beam type
Transmitted beam type
Area Sensor
1. Long sensing distance up to 7M
2. IP65 rated waterproof structure (IEC standard)
3. Increased sensing stability by minimizing the non sensing area
4. Easy identification of the side, front and long distance with high luminance twin operation indicators
5. Includes self-diagnosis function, mutual inter ference provention function, external diagnosis function.
6. Polished design & slim size (W28.6X H22.6XLOmm)
7. 22 types of products (Optical axis : 20/40mm, Sensing height : 120~ 940mm)
Specification
| Model | NPN open collector output | BW20-08 BW20-20 BW20-32 BW20-44 BW20-12 BW20-24 BW20-36 BW20-48 BW20-16 BW20-28 BW20-40 | BW40-04 BW40-10 BW40-16 BW40-22 BW40-06 BW40-12 BW40-18 BW40-24 BW40-08 BW40-14 BW40-20 |
| PNP open collector output | BW20-08P BW20-20P BW20-32P BW20-44P BW20-12P BW20-24P BW20-36P BW20-48P BW20-16P BW20-28P BW20-40P | BW40-04P BW40-10P BW40-16P BW40-22P BW40-06P BW40-12P BW40-18P BW40-24P BW40-08P BW40-14P BW40-20P | |
| Sensing method | Through-beam type | ||
| Sensing distance | 0.1 to 7m | ||
| Min. sensing target | Opaque material of min. Ø30mm | Opaque material of min. Ø50mm | |
| Optical axis pitch | 20mm | 40mm | |
| Number of optical axes | 8 to 48 | 4 to 24 | |
| Sensing height | 140 to 940mm | 120 to 920mm | |
| Response time | Max. 10ms | ||
| Power supply | 12-24VDCᜡ ±10% (ripple P-P: max. ±10%) | ||
| Current consumption | Emitter: max. 120mA, Receiver: max. 120mA | ||
| Weight | BW20-48: Approx. 2.1KG(approx. 1.4KG) | BW40-24: Approx. 2.1KG(approx. 1.4KG) | |
Order Code
Dimension
