| Quantity: | |
|---|---|
BW20-08
Autonics

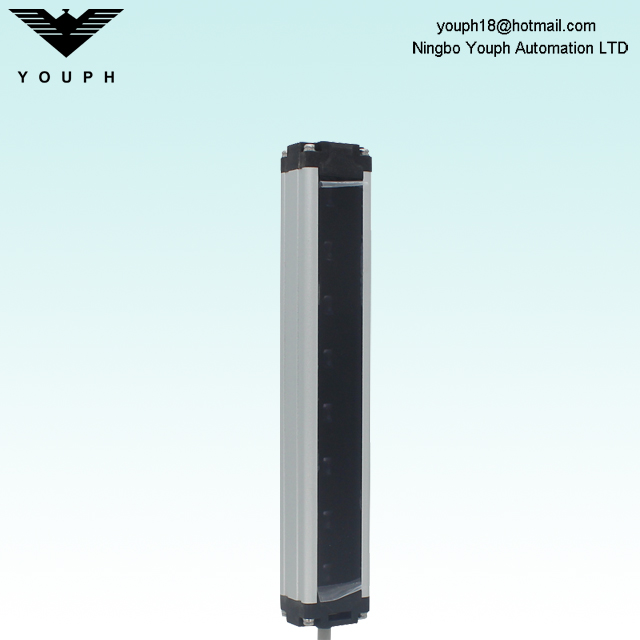

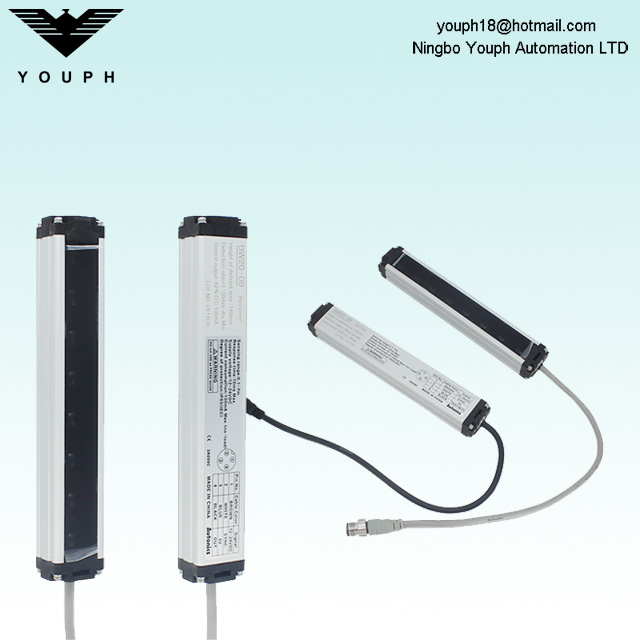

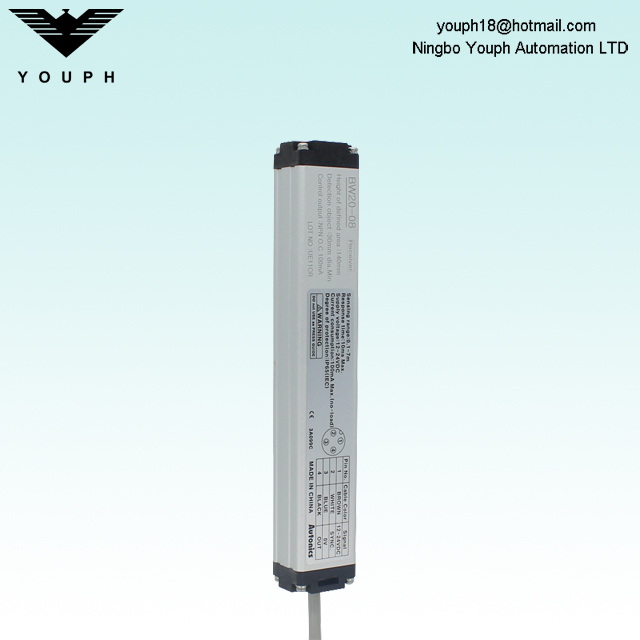

Autonics BW20-08 12 16 20 24 28 32 36 40 44 48 Emitter Receiver Through-beam Area Sensor
Features
BW Series
Transmitted beam type
Through-beam type
Area Sensor
Features
1. Long sensing distance up to 7M
2. 22 types of products (Optical axis : 20/40mm, Sensing height : 120~ 940mm)
3. Increased sensing stability by minimizing the non sensing area
4. Easy identification of the side, front and long distance with high luminance twin operation indicators
5. Includes self-diagnosis function, mutual inter ference provention function, external diagnosis function.
6. Polished design & slim size (W28.6X H22.6XLOmm)
7. IP65 rated waterproof structure (IEC standard)
Specification
| Model | NPN open collector output | BW20-08 BW20-20 BW20-32 BW20-44 BW20-12 BW20-24 BW20-36 BW20-48 BW20-16 BW20-28 BW20-40 | BW40-04 BW40-10 BW40-16 BW40-22 BW40-06 BW40-12 BW40-18 BW40-24 BW40-08 BW40-14 BW40-20 |
| PNP open collector output | BW20-08P BW20-20P BW20-32P BW20-44P BW20-12P BW20-24P BW20-36P BW20-48P BW20-16P BW20-28P BW20-40P | BW40-04P BW40-10P BW40-16P BW40-22P BW40-06P BW40-12P BW40-18P BW40-24P BW40-08P BW40-14P BW40-20P | |
| Sensing method | Through-beam type | ||
| Sensing distance | 0.1 to 7m | ||
| Min. sensing target | Opaque material of min. Ø30mm | Opaque material of min. Ø50mm | |
| Optical axis pitch | 20mm | 40mm | |
| Number of optical axes | 8 to 48 | 4 to 24 | |
| Sensing height | 140 to 940mm | 120 to 920mm | |
| Response time | Max. 10ms | ||
| Power supply | 12-24VDCᜡ ±10% (ripple P-P: max. ±10%) | ||
| Current consumption | Emitter: max. 120mA, Receiver: max. 120mA | ||
| Weight | BW20-48: Approx. 2.1KG(approx. 1.4KG) | BW40-24: Approx. 2.1KG(approx. 1.4KG) | |
Order Code
Dimension
