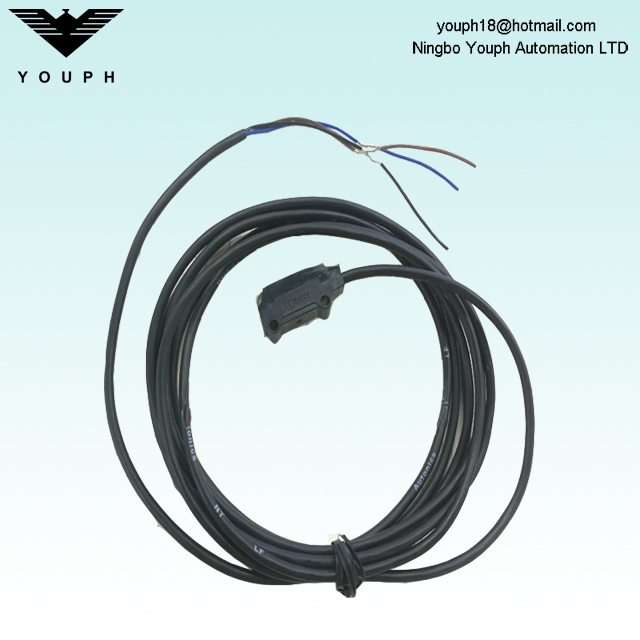

Autonics BTS200-MDTL BTS1M-MDTL-P Retroreflective BTS Series Photoelectric Sensor

BTS Series
Amplifier Built-in Type
Ultra-compact Photoelectric Sensor

Power supply: 12-24VDC

Autonics BTS200-MDTL BTS1M-MDTL-P Retroreflective BTS Series Photoelectric Sensor

Features

BTS Series

Ultra-compact and Amplifier Built-in Type

Ultra-compact Photoelectric Sensor

1. Ultra-slim width of only 7.2mm

- W7.2×H18.6×L9.5mm (through-beam type)

- W7.2×H24.6×L10.8mm

(retroreflective type, convergent reflective type)

2. Detection methods and minimum target size

- Through-beam type (BTS1M): Ø2mm

- Retroreflective type (BTS200): Ø2mm (at distance 100mm)

- Convergent reflective type (BTS15/BTS30): Ø0.15mm (at distance 10mm)

Detecting distance may vary by environmental factors

3. Maximum detection distance: 1m (through-beam type)

4. Stainless steel 304 mounting brackets

5. IP67 protection structure (IEC standard)

6. Stability indicator (red LED) and operation indicator (green LED)

Specification

Model	NPN	BTS1M-TDTL	BTS1M-TDTD	BTS200-MDTL	BTS200-MDTD	BTS30M-LDTL	BTS30M-LDTD	BTS15M-LDTL	BTS15M-LDTD
	PNP	BTS1M-TDTL-P	BTS1M-TDTD-P	BTS200-MDTL-P	BTS200-MDTD-P	BTS30M-LDTL-P	BTS30M-LDTD-P	BTS15M-LDTL-P	BTS15M-LDTD-P
Sensing type		Through-beam type		Retroreflective type		Convergent reflective type
Sensing distance		1m		10 to 200mm		5 to 30mm		5 to 15mm
Sensing target		Opaque material of max. Ø2mm		Opaque material of max. Ø27mm		Opaque material, Translucent materials
Min. sensing target		Opaque material of Ø2mm		Opaque material of Ø2mm		Ø0.15mm (sensing distance 10mm)

Order Code

Order Code

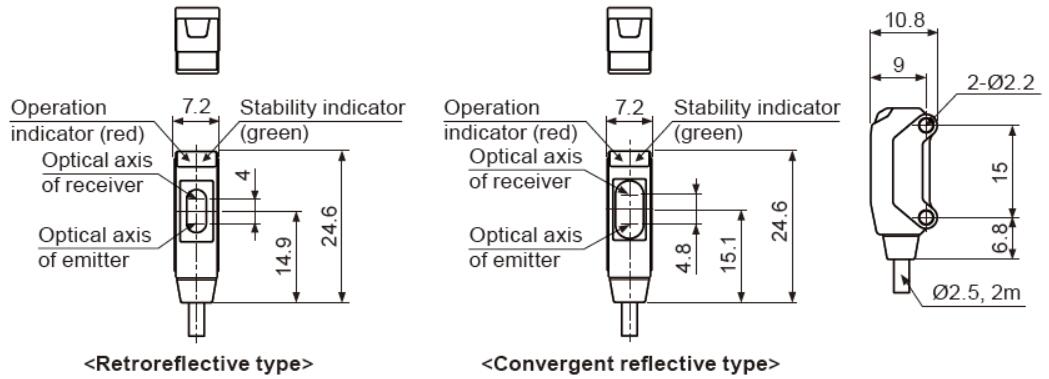

Dimension
