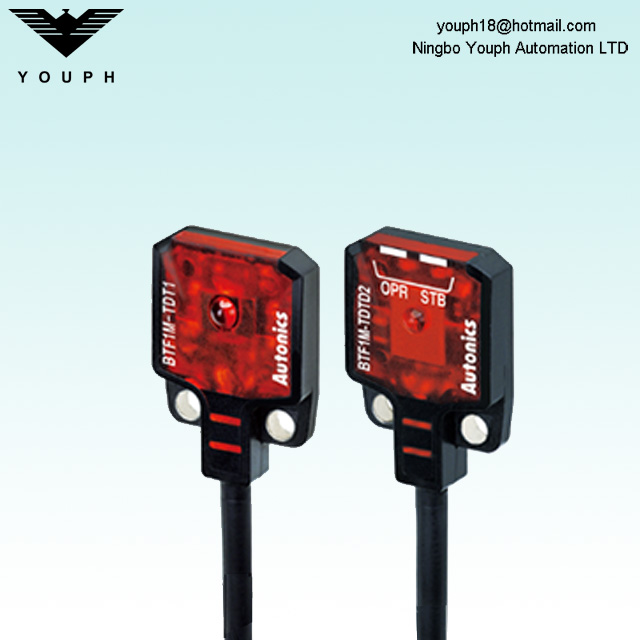

Autonics BTF1M-TDTD BTF1M-TDTD-P Through-beam Amplifier Built-in Ultra-slim Photoelectric Sensor

Autonics BTF1M-TDTD BTF1M-TDTD-P Through-beam Amplifier Built-in Ultra-slim Photoelectric Sensor

Features

BTF Series

Ultra-slim and amplifier built-in type

Uultra-thin Photoelectric Sensor

1. Realization of ultra-slim size by adopting one-chip photo IC

2. Size: Through-beam (W13×H19×L3.7mm), Diffuse reflective, BGS reflective(W13×H24×L3.7mm)

3. Adopts BGS method superior than convergent reflective to minimize error by background color, or material of sensing object for stable sensing

4. Built-in reverse polarity, output short, overcurrent protection circuit

5. Protection structure IP67(IEC standard)

6. Visible light source to check the position of sensing spot and superior to small sensing target with narrow sensing width

Order Code

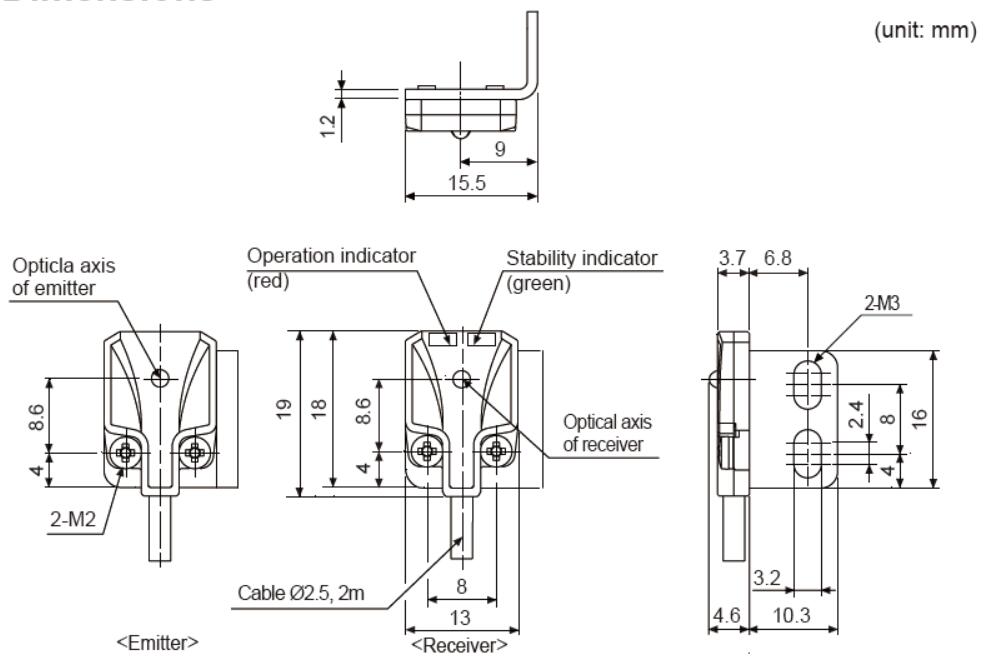

Dimension
