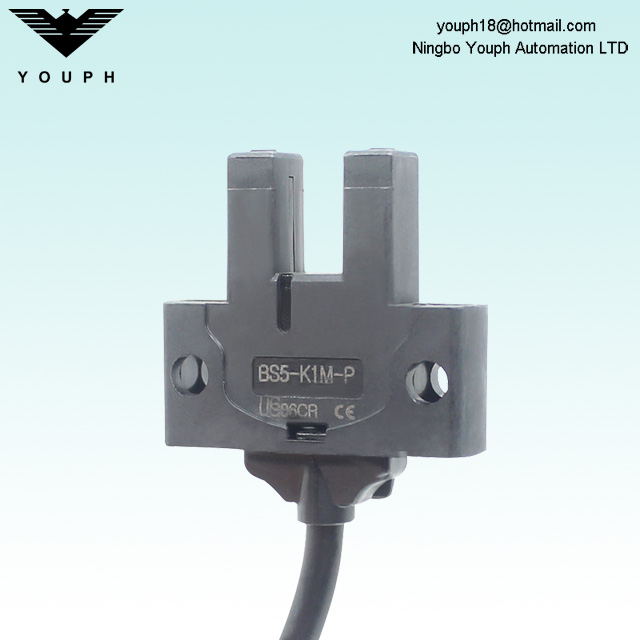

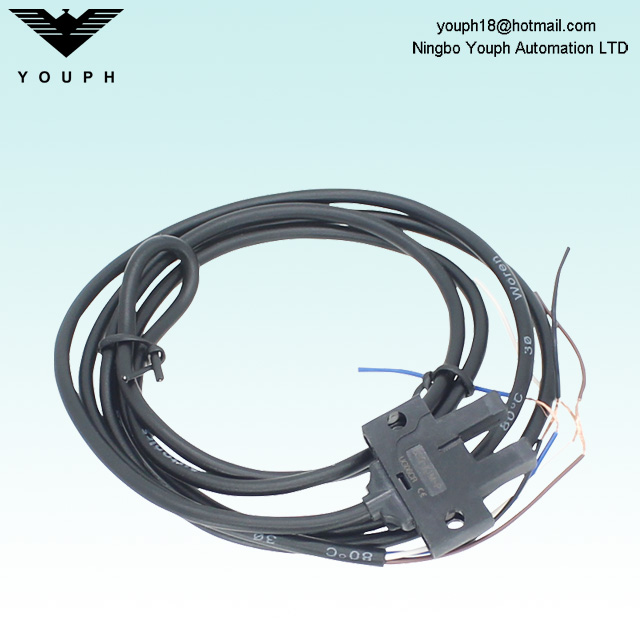

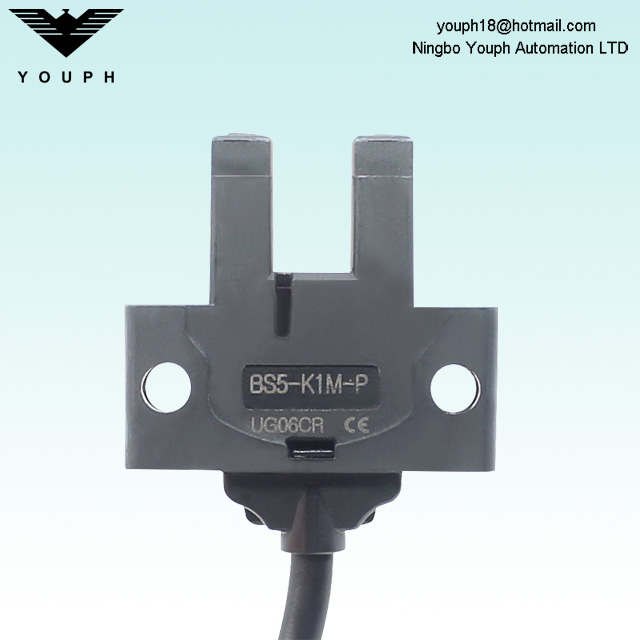

Autonics BS5-K1M BS5-K1M-P BS5 Series Through-beam Built-in Amplifier Photomicro Sensor

Autonics BS5-K1M BS5-K1M-P BS5 Series Through-beam Built-in Amplifier Photomicro Sensor

Features

BS5 Series

Photomicro Sensor

1. Ultra compact, Built-in amplifier, NPN/PNP open collector output

2. Various selection by installation position (Appearance: K, T, L, Y, V type)

3. Light ON / Dark ON selectable by control terminal

4. High speed response frequency : 2kHz

5. Wide range of power source: 5-24VDC (Easy to connect with various IC, relay, programmable controller etc)

6. Dust resistance structure: Protecting by window of emitter/receiver

7. Red LED status indication

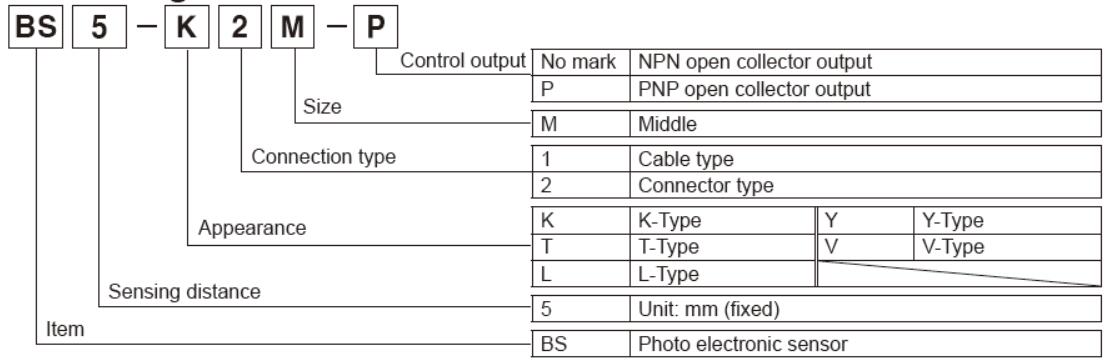

Order Code

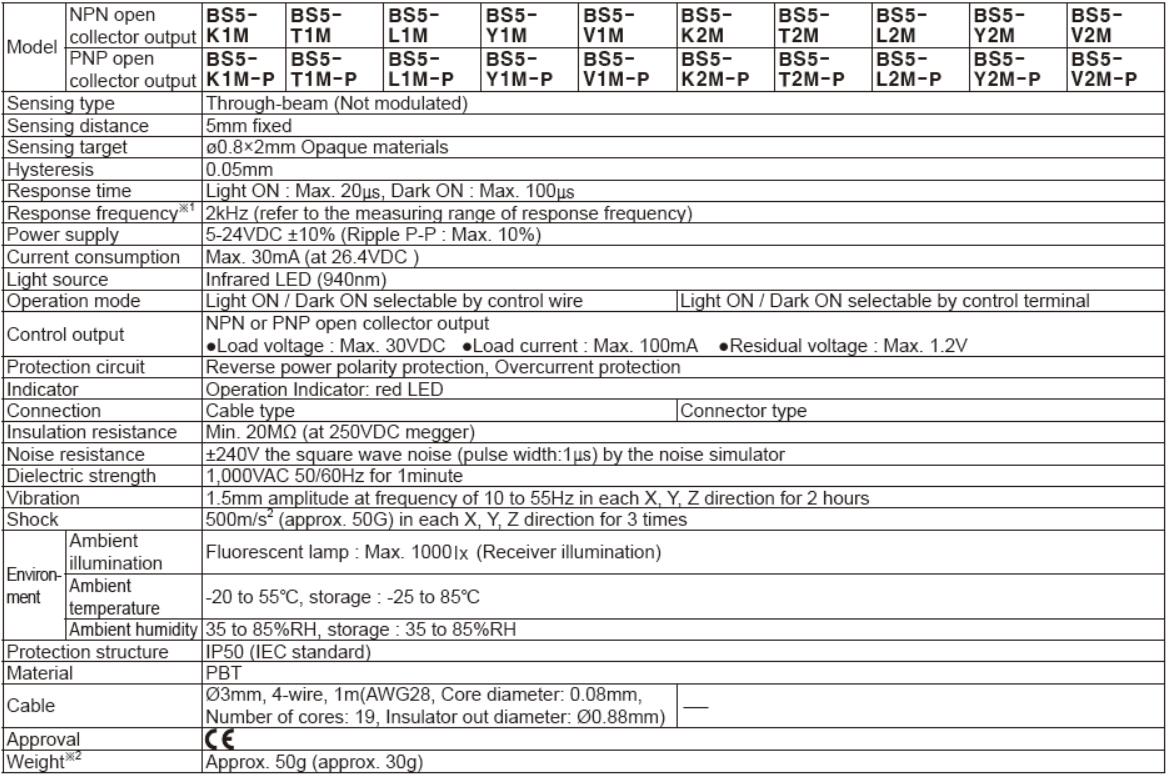

Specification

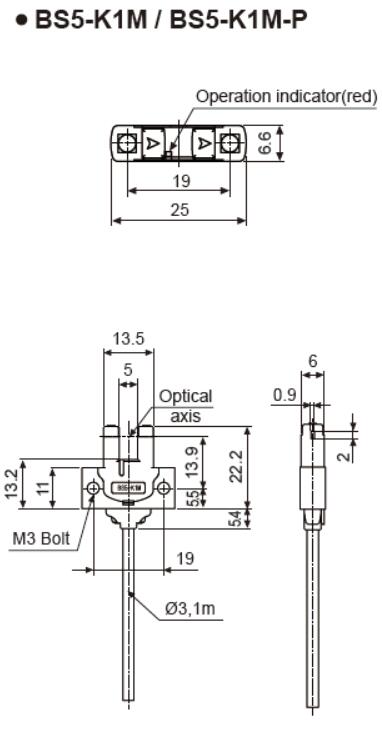

Dimension
