BRP400-DDT-P BRP400-DDT-C-P
Autonics

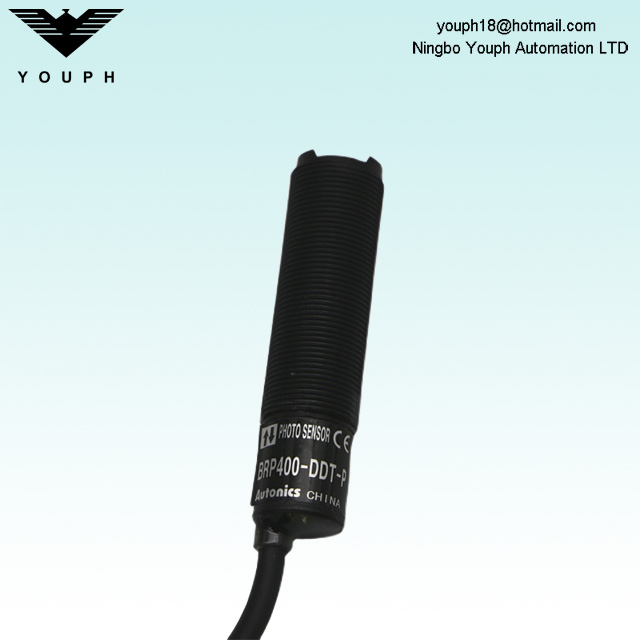

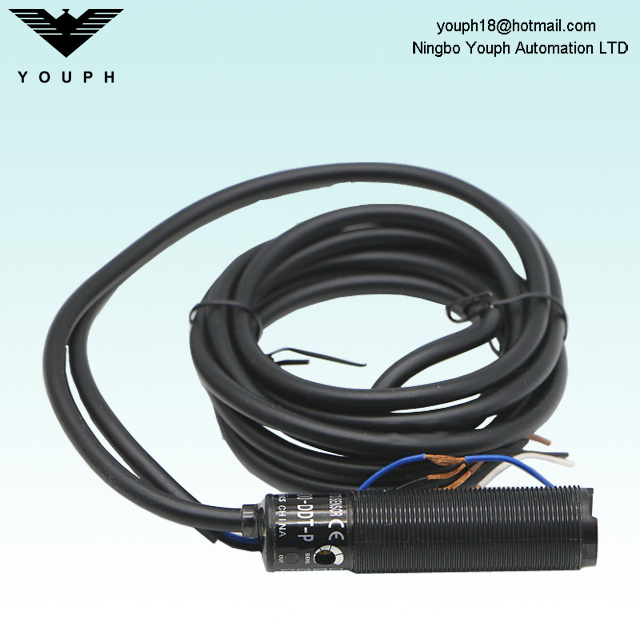

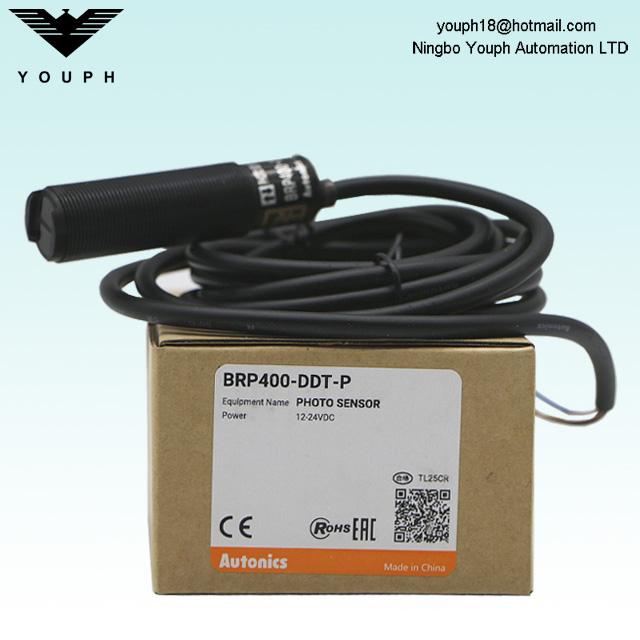

Autonics BRP400-DDT-P BRP400-DDT-C-P PNP Diffuse Reflective Photo Switch
Features
BR Series
BR-C SERIES
Cylindrical type
Upgraded cylindrical (∅18mm) type
PHOTO SENSOR
PHOTO SWITCH
PHOTOELECTRIC SENSOR
1. High-speed response time under 1ms
2. Light ON, Dark ON switchable by control wire (Except Through-beam type)
3. Built-in reverse power polarity and short-circuit (overcurrent) protection circuit
4. External sensitivity adjustment (Except Through-beam type)
5. Excellent environment-resistance performance with glass lens (BR4M)
6. Superior noise resistance with digital signal processing
7. Suitable for sensing in narrow space (Narrow beam type)
8. Realizes long installation distance (20m) (Through-beam type)
9. Protection structure IP66 (IEC standard)
Order Code
Specification
| MODEL | NPN | BRP100-DDT | BR100-DDT | BRP400-DDT | BR400-DDT | BRP200-DDTN | BR200-DDTN | BRP3M-MDT | BR3M-MDT | BR4M-TDTD | BR4M-TDTL | BR20M-TDTD | BR20M-TDTL |
| BRP100-DDT-C | BR100-DDT-C | BRP400-DDT-C | BR400-DDT-P | BRP200-DDTN-C | BR200-DDTN-C | BRP3M-MDT-C | BR3M-MDT-C | BR4M-TDTD-C | BR4M-TDTL-C | BR20M-TDTD-C | BR20M-TDTL-C | ||
| PNP | BRP100-DDT-P | BR100-DDT-P | BRP400-DDT-P | BR400-DDT-C | BRP200-DDTN-P | BR200-DDTN-P | BRP3M-MDT-P | BR3M-MDT-P | BR4M-TDTD-P | BR4M-TDTL-P | BR20M-TDTD-P | BR20M-TDTL-P | |
| BRP100-DDT-C-P | BR100-DDT-C-P | BRP400-DDT-C-P | BR400-DDT-C-P | BRP200-DDTN-C-P | BR200-DDTN-C-P | BRP3M-MDT-C-P | BR3M-MDT-C-P | BR4M-TDTD-C-P | BR4M-TDTL-C-P | BR20M-TDTD-C-P | BR20M-TDTL-C-P | ||
| Sensing Type | Diffuse reflective | Narrow beam reflective | Retroreflective | Through-beam | |||||||||
| Sensing Distance | 100 mm | 400 mm | 200 mm | 3 m | 4 m | 20 m | |||||||
| Sensing Target | Translucent, Opaque materials | Opaque materials of min. Ø60mm | Opaque materials ofmin. Ø15mm | ||||||||||
| Power Supply | 12-24VDC ±10%(Ripple P-P : Max. 10%) | ||||||||||||
