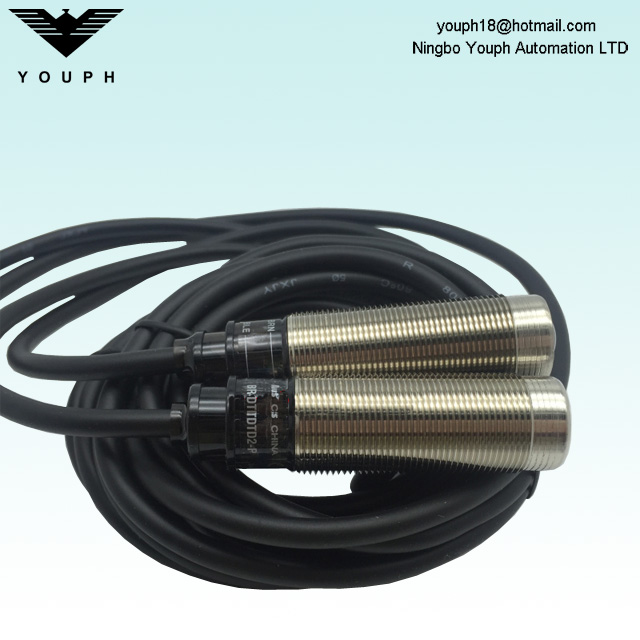

Autonics BR4M-TDTL-P BR4M-TDTL-C-P PNP open collector output Through-beam Photo Sensor

BR SERIES
BR: Metal
BRP: Plastic
-C: Connector type
-P: PNP
Power supply: 12-24VDC
Sensing distance: 4 m
Availability:
Quantity:
Inquire Add to Basket

Autonics BR4M-TDTL-P BR4M-TDTL-C-P PNP open collector output Through-beam Photo Sensor
Autonics BR4M-TDTL-P BR4M-TDTL-C-P PNP open collector output Through-beam Photo Sensor

  • BR4M-TDTL-P BR4M-TDTL-C-P

  • Autonics

Autonics BR4M-TDTL-P BR4M-TDTL-C-P PNP open collector output Through-beam Photo Sensor

Features

BR Series

BR-C SERIES

Cylindrical type

Upgraded cylindrical (∅18mm) type

PHOTO SWITCH

PHOTOELECTRIC SENSOR

PHOTO SENSOR


1. Superior noise resistance with digital signal processing

2. Excellent environment-resistance performance with glass lens (BR4M)

3. Light ON, Dark ON switchable by control wire (Except Through-beam type)

4. High-speed response time under 1ms

5. Built-in reverse power polarity and short-circuit (overcurrent) protection circuit

6. Protection structure IP66 (IEC standard)

7. Suitable for sensing in narrow space (Narrow beam type)

8. External sensitivity adjustment (Except Through-beam type)

9. Realizes long installation distance (20m) (Through-beam type)

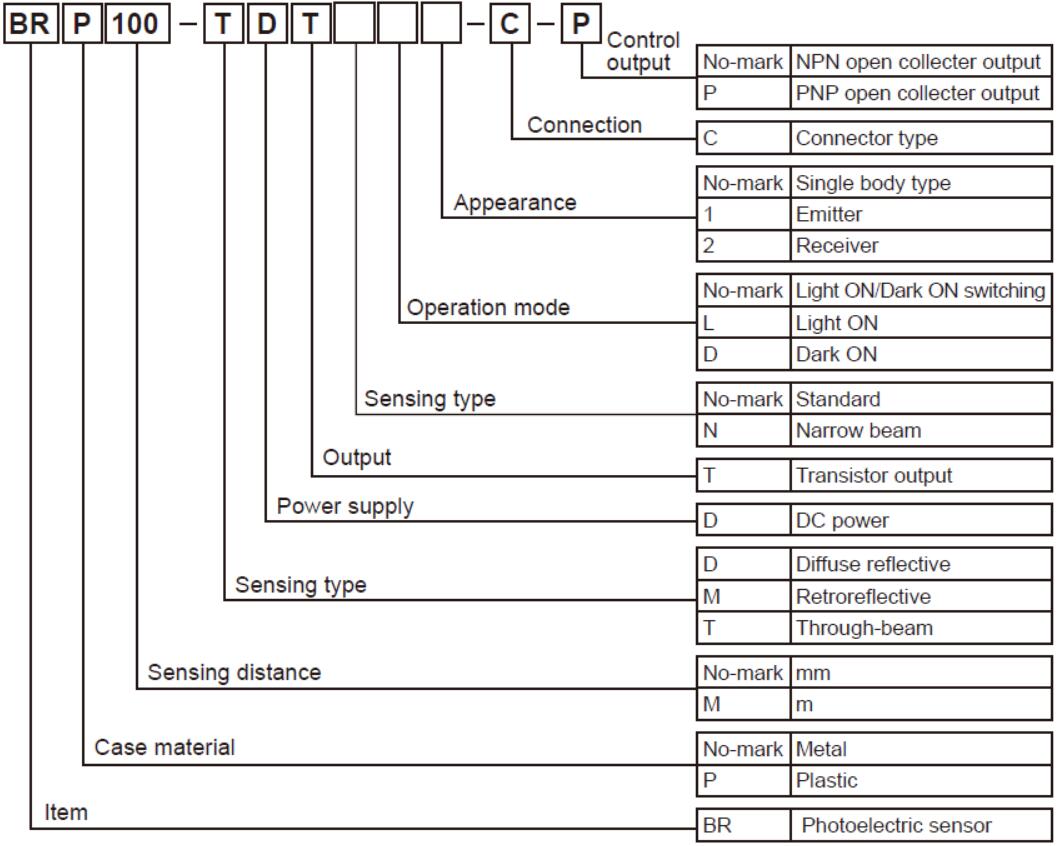

Order Code

Order Code

Specification

MODEL NPN BRP100-DDT BR100-DDT BRP400-DDT BR400-DDT BRP200-DDTN BR200-DDTN BRP3M-MDT BR3M-MDT BR4M-TDTD BR4M-TDTL BR20M-TDTD BR20M-TDTL
BRP100-DDT-C BR100-DDT-C BRP400-DDT-C BR400-DDT-P BRP200-DDTN-C BR200-DDTN-C BRP3M-MDT-C BR3M-MDT-C BR4M-TDTD-C BR4M-TDTL-C BR20M-TDTD-C BR20M-TDTL-C
PNP BRP100-DDT-P BR100-DDT-P BRP400-DDT-P BR400-DDT-C BRP200-DDTN-P BR200-DDTN-P BRP3M-MDT-P BR3M-MDT-P BR4M-TDTD-P BR4M-TDTL-P BR20M-TDTD-P BR20M-TDTL-P
BRP100-DDT-C-P BR100-DDT-C-P BRP400-DDT-C-P BR400-DDT-C-P BRP200-DDTN-C-P BR200-DDTN-C-P BRP3M-MDT-C-P BR3M-MDT-C-P BR4M-TDTD-C-P BR4M-TDTL-C-P BR20M-TDTD-C-P BR20M-TDTL-C-P
Sensing Type Diffuse reflective Narrow beam reflective Retroreflective Through-beam
Sensing Distance 100 mm 400 mm 200 mm 3 m 4 m 20 m
Sensing Target Translucent, Opaque materials Opaque materials of min. Ø60mm Opaque materials ofmin. Ø15mm
Power Supply 12-24VDC ±10%(Ripple P-P : Max. 10%)
