BR100-DDT-P BR100-DDT-C-P
Autonics

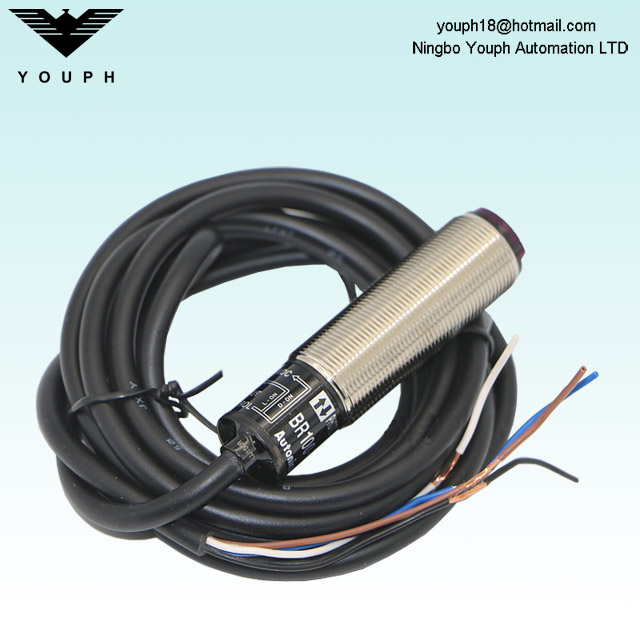

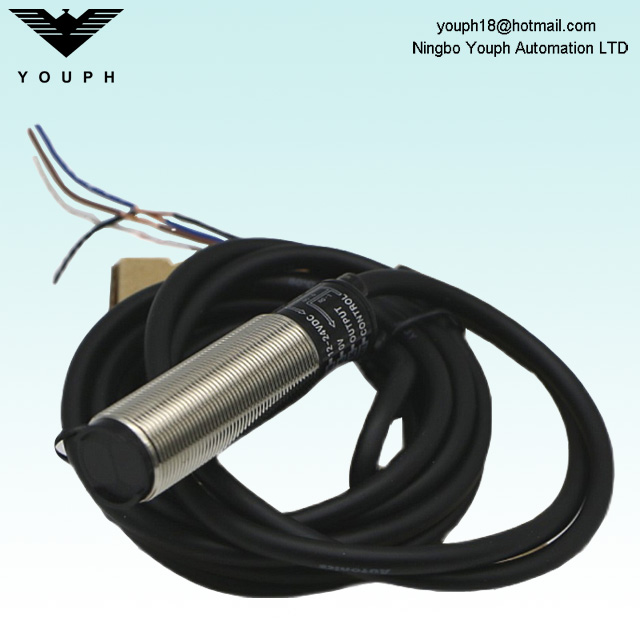

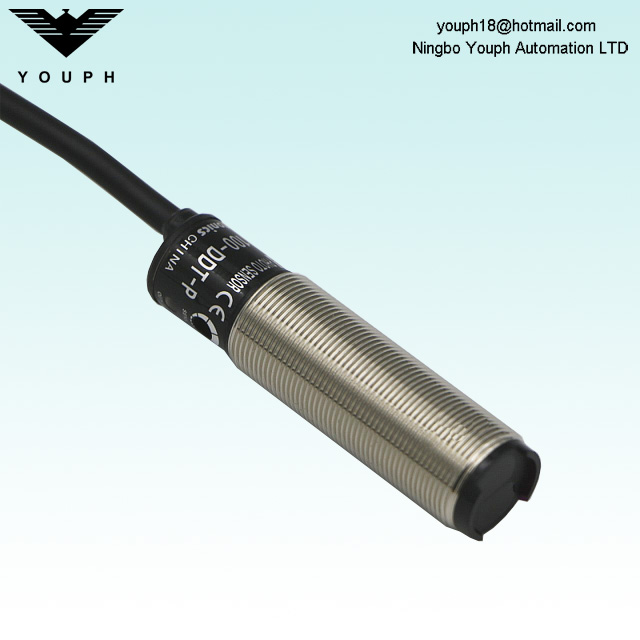

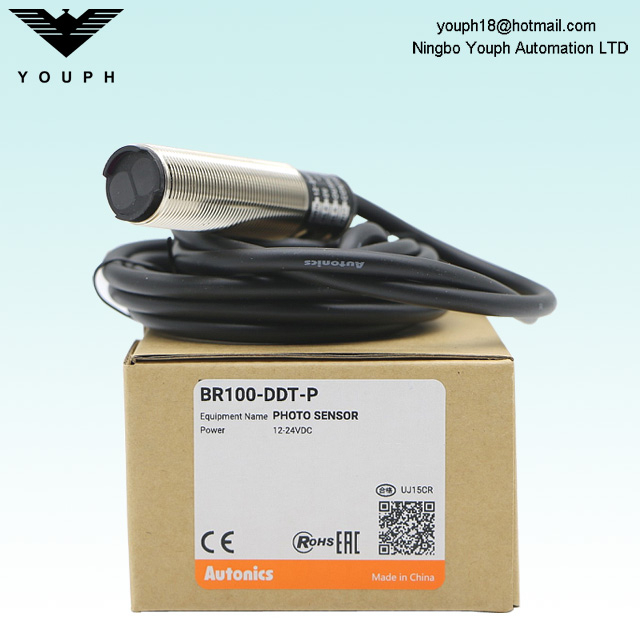

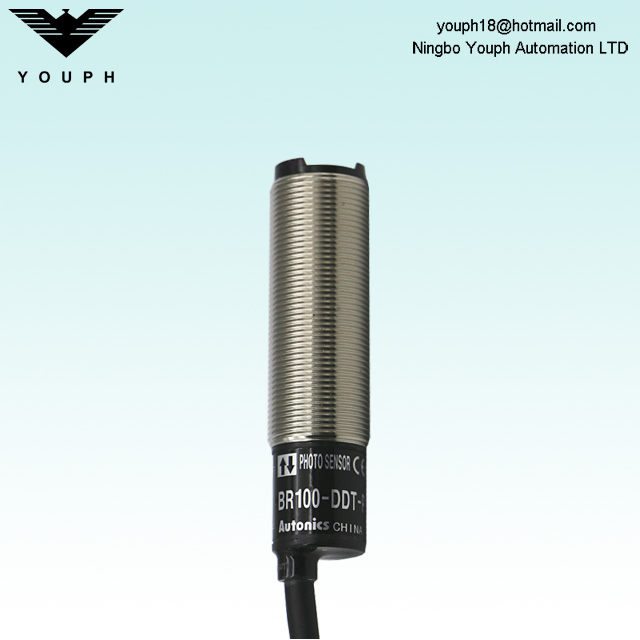

Autonics BR100-DDT-P BR100-DDT-C-P Diffuse reflective Upgraded cylindrical Photo Sensor
Features
BR Series
BR-C SERIES
Upgraded cylindrical (∅18mm) type
Cylindrical type
PHOTOELECTRIC SENSOR
1. Realizes long installation distance (20m) (Through-beam type)
2. Suitable for sensing in narrow space (Narrow beam type)
3. Protection structure IP66 (IEC standard)
4. Superior noise resistance with digital signal processing
5. External sensitivity adjustment (Except Through-beam type)
6. Excellent environment-resistance performance with glass lens (BR4M)
7. Light ON, Dark ON switchable by control wire (Except Through-beam type)
8. High-speed response time under 1ms
9. Built-in reverse power polarity and short-circuit (overcurrent) protection circuit
Order Code
Specification
| MODEL | NPN | BRP100-DDT | BR100-DDT | BRP400-DDT | BR400-DDT | BRP200-DDTN | BR200-DDTN | BRP3M-MDT | BR3M-MDT | BR4M-TDTD | BR4M-TDTL | BR20M-TDTD | BR20M-TDTL |
| BRP100-DDT-C | BR100-DDT-C | BRP400-DDT-C | BR400-DDT-P | BRP200-DDTN-C | BR200-DDTN-C | BRP3M-MDT-C | BR3M-MDT-C | BR4M-TDTD-C | BR4M-TDTL-C | BR20M-TDTD-C | BR20M-TDTL-C | ||
| PNP | BRP100-DDT-P | BR100-DDT-P | BRP400-DDT-P | BR400-DDT-C | BRP200-DDTN-P | BR200-DDTN-P | BRP3M-MDT-P | BR3M-MDT-P | BR4M-TDTD-P | BR4M-TDTL-P | BR20M-TDTD-P | BR20M-TDTL-P | |
| BRP100-DDT-C-P | BR100-DDT-C-P | BRP400-DDT-C-P | BR400-DDT-C-P | BRP200-DDTN-C-P | BR200-DDTN-C-P | BRP3M-MDT-C-P | BR3M-MDT-C-P | BR4M-TDTD-C-P | BR4M-TDTL-C-P | BR20M-TDTD-C-P | BR20M-TDTL-C-P | ||
| Sensing Type | Diffuse reflective | Narrow beam reflective | Retroreflective | Through-beam | |||||||||
| Sensing Distance | 100 mm | 400 mm | 200 mm | 3 m | 4 m | 20 m | |||||||
| Sensing Target | Translucent, Opaque materials | Opaque materials of min. Ø60mm | Opaque materials ofmin. Ø15mm | ||||||||||
| Power Supply | 12-24VDC ±10%(Ripple P-P : Max. 10%) | ||||||||||||
