Autonics BJN100-NDT BJN100-NDT-P Compact and Micro Spot type Photoelectric Sensor

Autonics BJN100-NDT BJN100-NDT-P Compact and Micro Spot type Photoelectric Sensor

Features

Compact and micro spot type photoelectric sensor

1. Easy to check sensing location with Red LED

2. Suitable for sensing small objects (Min. sensing object: ∅0.2mm pure copper wire)

3. Reverse polarity protection, output short-circuit protection circuit

4. Protection : IP65 (IEC standards)

5. Auto mutual interference prevention function

6. Sensitivity adjustment VR embodied

7. Compact size : W20 X H32 X L10.6mm

8. Light ON / Dark ON selectable

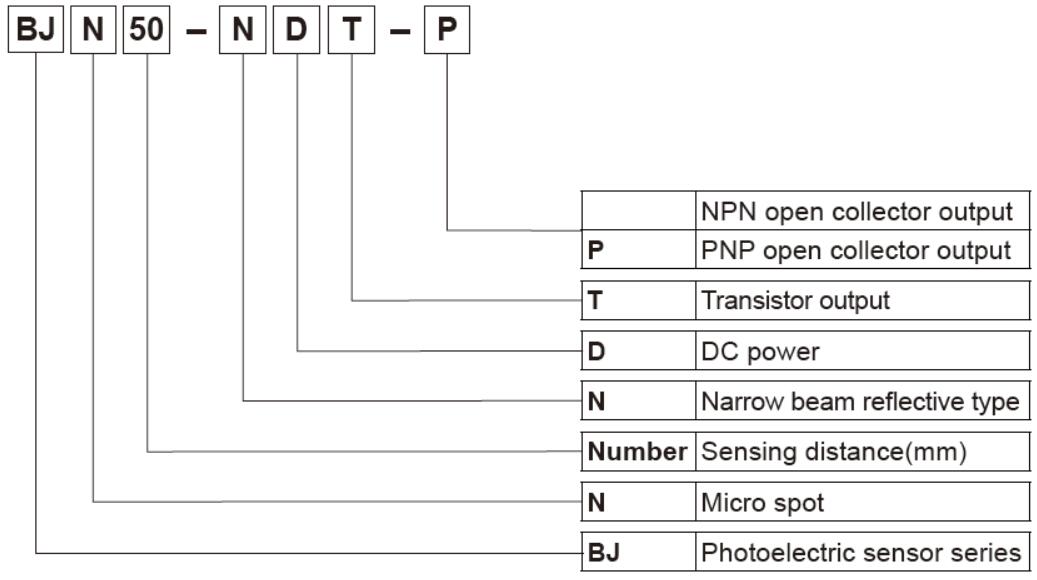

Order Code

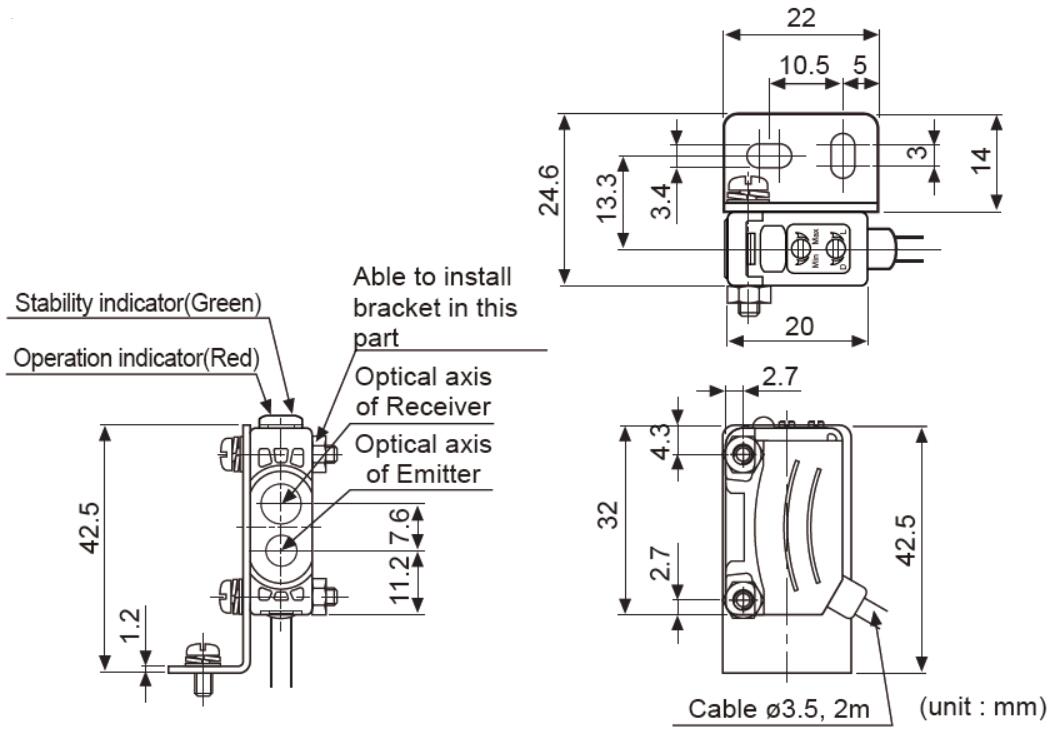

Dimension
