| Quantity: | |
|---|---|
BH1M-DDT
Autonics

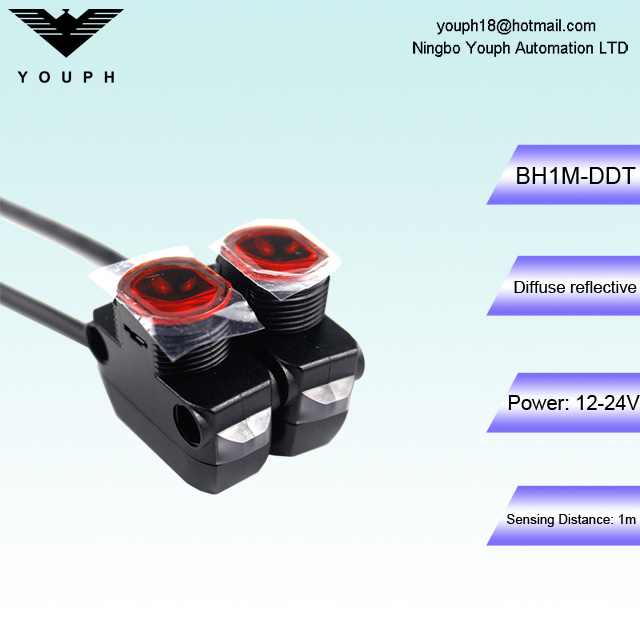

Autonics BH1M-DDT Diffuse reflective Interference prevention Photoelectric Sensor
Model
| Model | Sensing Distance | Sensing Type | Power Supply | Output |
| BH20M-TDT | 20m | Through-beam type | 12-24VDC | Transistor output (NPN/PNP) |
| BH4M-PDT | 4m | Retrorefl ective type (built-in polarized fi lter) | ||
| BH1M-DDT | 1m | Diffuse refl ective type | ||
| BH300-DDT | 300mm |
Features
1. Easy front (M18 nut) and side (M3 bolt/nut) installation
2. NPN open collector / PNP open collector simultaneous output
3. Sensing distance: Through-beam type 20m / Retroreflective type 4m / Diffuse reflective type 1m, 300mm
4. Small size: W14×H34.5×L28mm
5. M.S.R. (Mirror Surface Rejection) function prevents malfunction from reflective objects such as metals or mirrors (retroreflective type)
6. Sensitivity adjuster
7. Light ON/Dark ON selectable by switch
8. Operation indicator (red LED) and stability indicator (green LED)
9. Power reverse polarity protection circuit, Output short over current protection circuit
10. Interference prevention function (except through-beam type)
11. IP67 protection structure (IEC standard)
Specification
Dimension
Autonics BH1M-DDT Diffuse reflective Interference prevention Photoelectric Sensor
Model
| Model | Sensing Distance | Sensing Type | Power Supply | Output |
| BH20M-TDT | 20m | Through-beam type | 12-24VDC | Transistor output (NPN/PNP) |
| BH4M-PDT | 4m | Retrorefl ective type (built-in polarized fi lter) | ||
| BH1M-DDT | 1m | Diffuse refl ective type | ||
| BH300-DDT | 300mm |
Features
1. Easy front (M18 nut) and side (M3 bolt/nut) installation
2. NPN open collector / PNP open collector simultaneous output
3. Sensing distance: Through-beam type 20m / Retroreflective type 4m / Diffuse reflective type 1m, 300mm
4. Small size: W14×H34.5×L28mm
5. M.S.R. (Mirror Surface Rejection) function prevents malfunction from reflective objects such as metals or mirrors (retroreflective type)
6. Sensitivity adjuster
7. Light ON/Dark ON selectable by switch
8. Operation indicator (red LED) and stability indicator (green LED)
9. Power reverse polarity protection circuit, Output short over current protection circuit
10. Interference prevention function (except through-beam type)
11. IP67 protection structure (IEC standard)
Specification
Dimension
