Autonics BFX-D1-P PNP BFX Series LCD Display Fiber Optic Amplifier

Autonics BFX-D1-P PNP BFX Series LCD Display Fiber Optic Amplifier

Features

BFX Series

Fiber Optic Amplifier

LCD Display, Digital Fiber Optic Amplifier

1. Dual-display for light incident level and setting value (BF5-D)

2. Enables to detect with high-speed moving object (response speed 50us)

3. Enables to detect the minute object with 1/10,000 high resolution

4. 5 response speeds: ultra fast mode (50us), high speed mode (150us), standard mode (500us), long distance mode (4ms), ultra long distance mode (10ms)

5. Anti-saturation setting function prevents malfunction by saturated light

6. External input: emitter OFF, remote sensitivity setting, peak reset, output ON/OFF/Keep, Energy saving OFF

7. Multiple sensitivity setting modes available: auto tuning (fine-adjusting sensitivity), teaching sensitivity setting (button or external input-auto-tuning, 1-point, 2-point, positioning)

Model

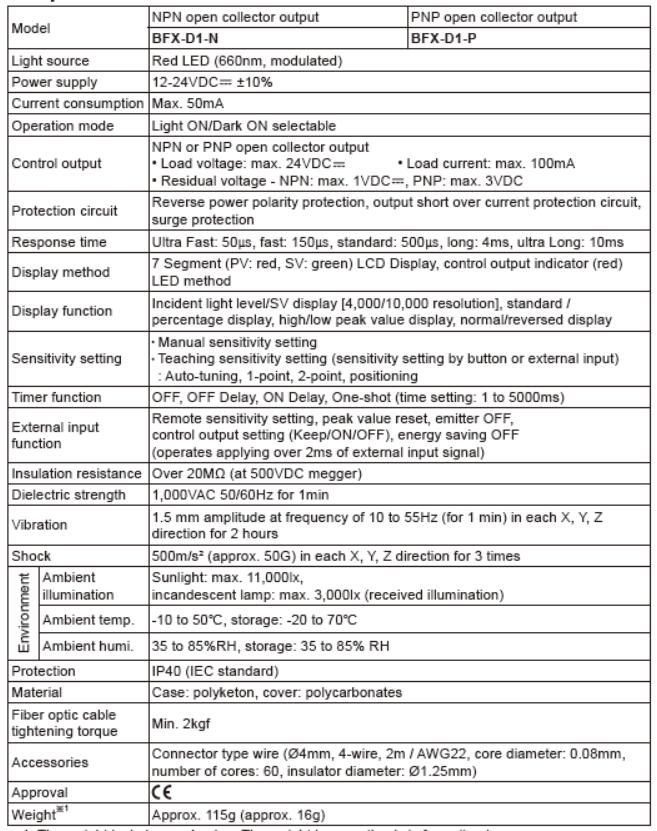

Specification

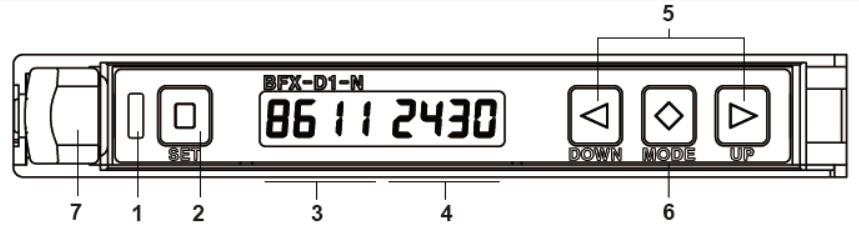

Unit Description

1. Control output indicator: Used to indicate control output provided by comparing SV and actual incident light level.

2. □(SET) key: Used to execute each operation and to set sensing sensitivity.

3. Measured value (PV) display part:

  A. RUN mode: It displays present value (PV) of input incident light.

  B. Setting mode: It displays the parameter.

4. Set value (SV) display part:

  A. RUN mode: It displays the setting value (SV).

  B. Setting mode: It displays the setting value of the parameter.

5. ◀▶key: Used to enter SV setting mode, move up/down digit, set sensitivity manually.

6. □(MODE) key: Used to enter program mode, RUN mode, move parameters, or save the setting value.

7. Lock lever: Used to connect fiber optic cable.

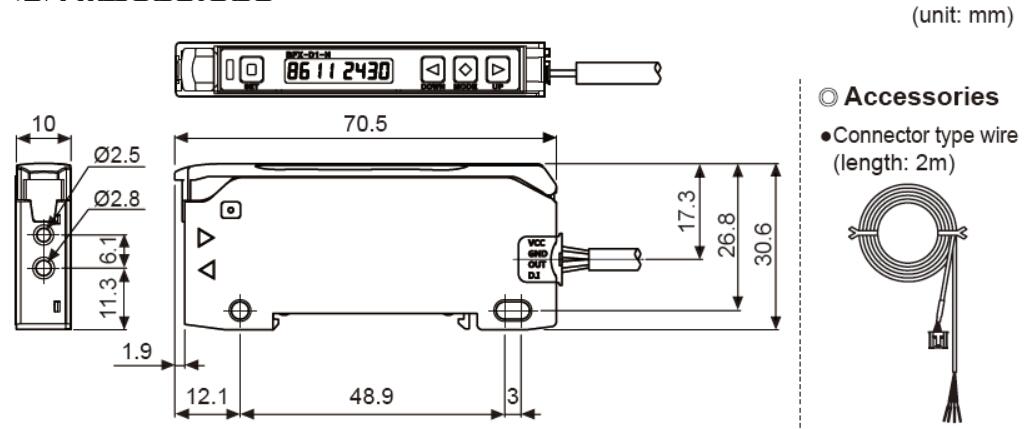

Dimension
