Autonics BF4R-R BF4G-R Remote sensitivity setting type Fiber Optic Amplifier Proximity Switch Fiber Sensor

Autonics BF4R-R BF4G-R Remote sensitivity setting type Fiber Optic Amplifier Proximity Switch Fiber Sensor

Light source(modulated light)

BF4R-R: Red

BF4G-R: Green

Features

Features

1. High speed response : Max. 0.5ms

2. Auto sensitivity setting(Button setting)/Remote sensitivity setting

3. External synchronization input, mutual interference protection, self-diagnosis

4. Reverse power polarity and short-circuit(Overcurrent) protection circuit

5. Timer function : Selectable None 1 40ms OFF Delay timer(fixed) (Standard type, remote sensitivity setting type only)

6. Automatically selectable Light ON / Dark ON

7. Precise detection of small target and complicated place to install

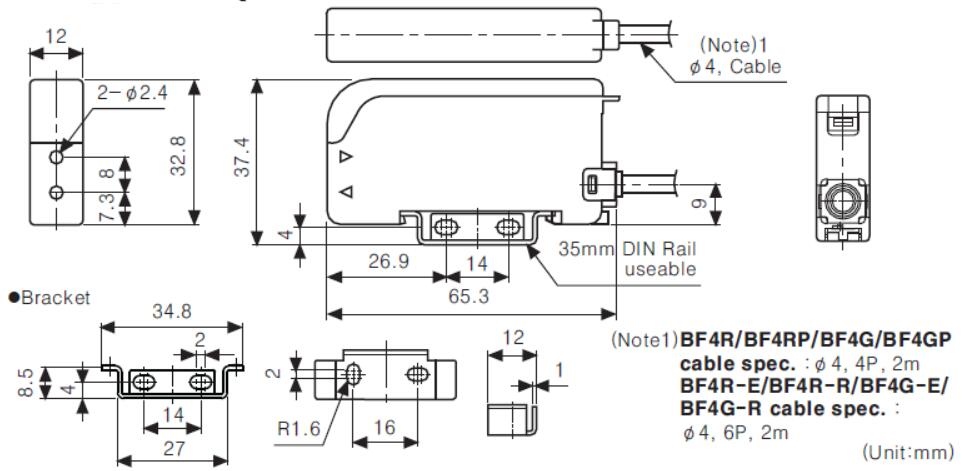

Dimension
