Autonics AS80-50DN3 AS80-50DP3 Inductive Long Distance Proximity Sensor

Autonics AS80-50DN3 AS80-50DP3 Inductive Long Distance Proximity Sensor

Features

1. Sensing up to as 50mm

2. Improved the noise immunity with dedicated IC

3. Built-in reverse polarity protection circuit, surge protection circuit, over-current protection circuit

4. Wide range of power supply: 12-48VDC (voltage range: 10-65VDC)

5. Simultaneous output of Normal Open+Normal Close

6. Built-in power indicator and operation indicator

7. IP67 protection structure (IEC standard)

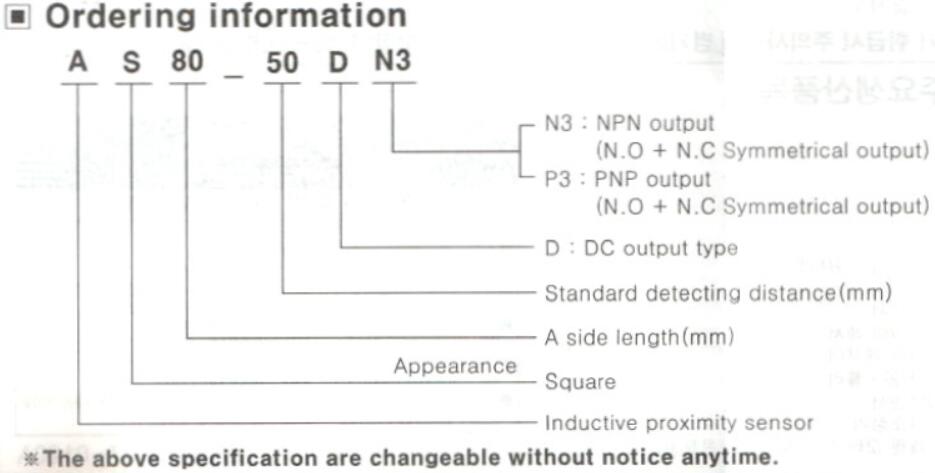

Ordering Code

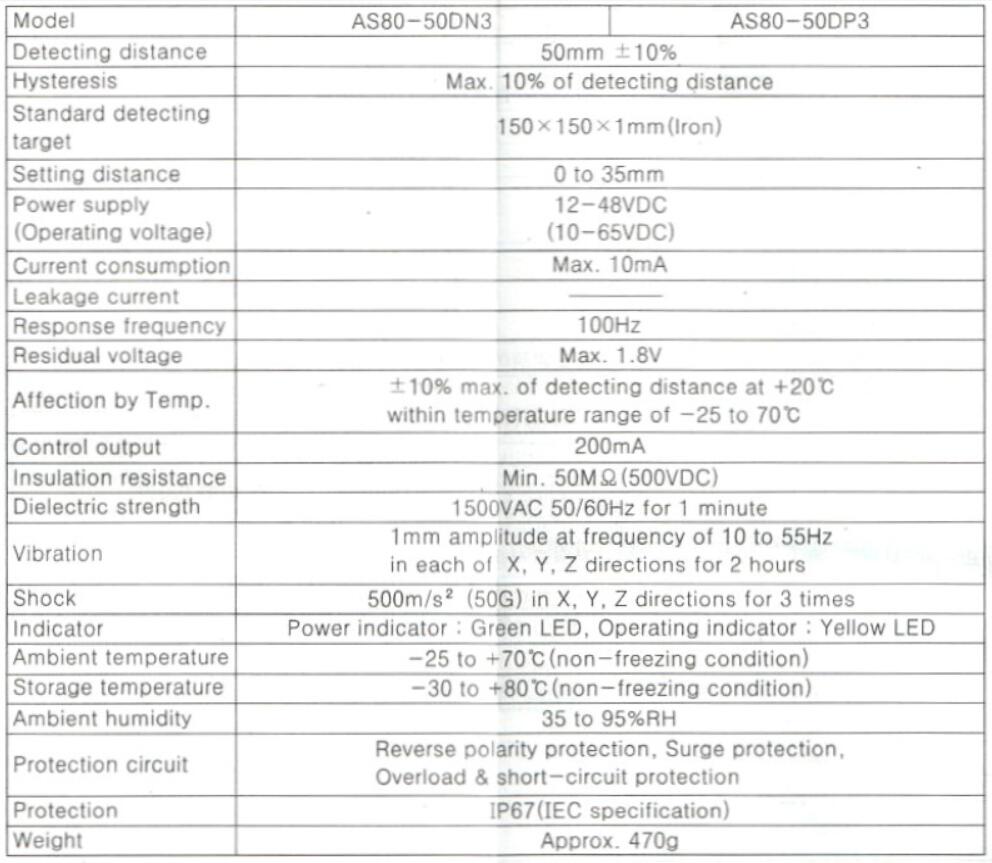

Specification

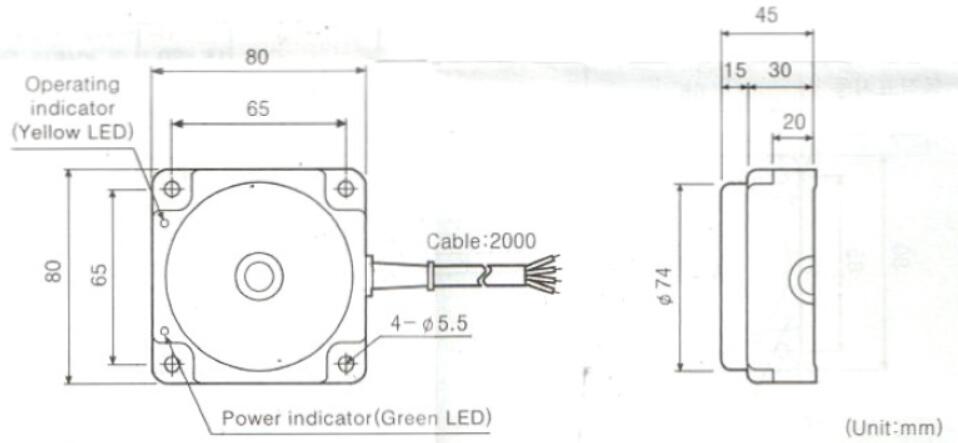

Drawing
