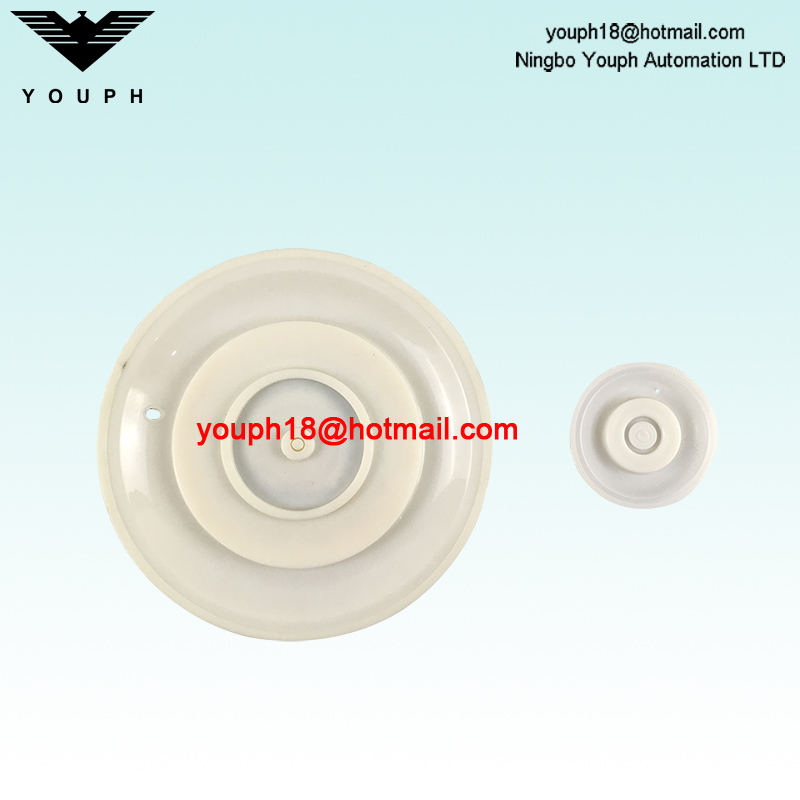

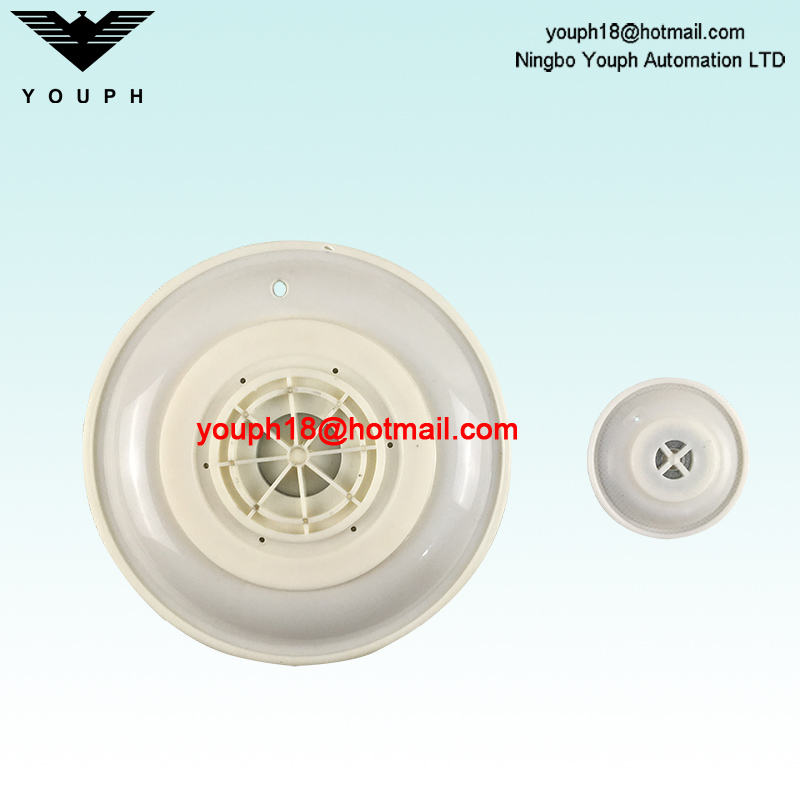

Autel M/D75 M/D20 AE1475G AE2475G AE1475G0020 AE1475G0225 3" TPE INTEGRATED VALVE STD Diaphragm

Autel M/D75 M/D20 AE1475G AE2475G AE1475G0020 AE1475G0225 3" TPE INTEGRATED VALVE STD Diaphragm

Description

In the high efficiency series we can include the range of flat surface valves. These valves, used for cleaning

filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, the activating can be: Integrated the pilot is placed on the valve and the excitation (electric) is made by a coil.

Remote: the pilot is remote and the excitation is pneumatic. The connection between pilot and valve is made by

a simple pneumatic tube.

All That is achieved from a deep studying of internal geometrical characteristics and from a technological research on diaphragm. This guarantees rapid opening-closing cycles and a working for over a million of shots.

General specification

Static Operation: Normally closed

Temperature: -20 °C +100 °C

Max Pressure: 8 Bar

Connection: Threaded

Material: Die cast aluminium

Pilot: Brass

Fluid: Filtered air not lubricated
