SCE353A811 SGE353A811

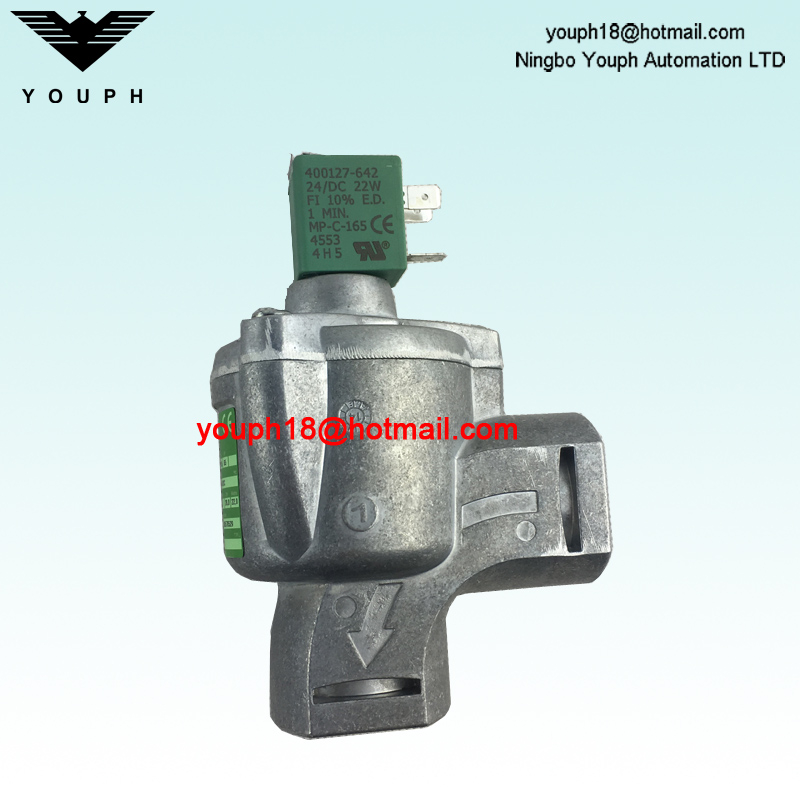

ASCO SCE353A811 SGE353A811 Repair Kit C117273 G3/4 Integral Pilot Power PULSE VALVE
FEATURES
1. The piston cartridge pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
2. The angle bodies and special piston cartridge result in unique operating features required for dust collector service applications
3. The design with Quick Mount connections eliminates the time consuming thread cutting and sealing resulting in maximum flexibility while the valve will be anchored to the pipes
4. Built-in silencers reduce noise and prevent foreign particles from entering the valve
5. The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive ATEX 2014/34/EU can be mounted on the same basic valve.
6. The components satisfy all relevant EC directives
Specification
OPTIONS
1. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE 10.
2. Explosionproof solenoids for hazardous locations according to“ATEX" and national standards.
3. Explosionproof and watertight solenoids according to“NEMA" standards.
4. Plug with visual indication and/or peak voltage suppression.
5. Electronic timer.
6. Additional Quick Mount clamps for outlet connection, see "Specifications" table.
INSTALLATION
1. The valves can be mounted in any position without affecting operation.
2. Pipe connection identifiers are: G*= combination thread according to ISO 228/1 and ISO 7/1 or Φ for Quick Mount.
3. For Quick Mount types tightness is achieved by the O-ring sealing on the pipes (3/4"=Φ26,4 to 27,4 and 1"=Φ33,2 to 34,2 and 1 1/2"=Φ47,8 to 48,8) according to ISO 4200.
4. Other pipe threads are available on request.
5. Installation/maintenance instructions are included with each valve.
6. Spare parts kit and replacement coils are available.
Dimension
