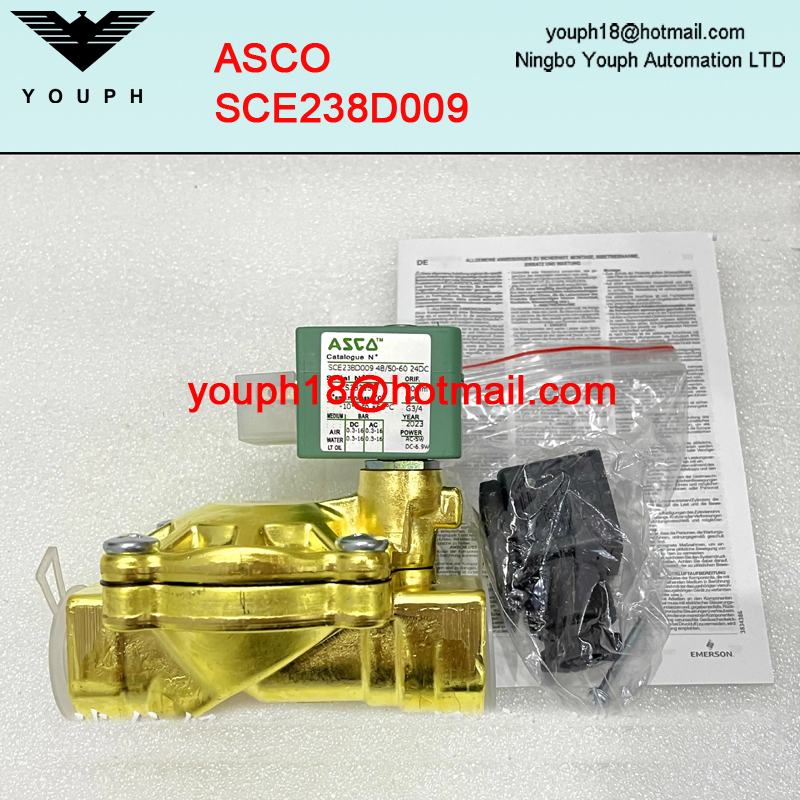

ASCO SCE238D009 MO G3/4 Orifice 20mm NC 2/2 Way Brass Solenoid Valve

ASCO SCE238D009 MO G3/4 Orifice 20mm NC 2/2 Way Brass Solenoid Valve

MATERIALS IN CONTACT WITH FLUID

Body: Brass

Internal parts: Stainless steel and brass

Springs: Stainless steel

Diaphragm & valve disc: NBR

Seals and pilot disc: FPM (38 to 1), NBR (1 14 to 2)

Shading coil: Copper

INSTALLATION

1. The solenoid valves can be mounted in any position without affecting operation

2. Pipe connections (G*) have standard combination thread according to ISO 228/1 and ISO 7/1. Pipe connections (G) have standard combination thread according to ISO 228/1

3. Installation/maintenance instructions are included with each valve

4. Spare parts kits and replacement coils are available

5. Other pipe connections are available on request

SPARE PARTS KIT

FEATURES

1. Minimum operating pressure differential ΔP 0.3/0.5 bar

2. Two way valves for automatic control of water, air and inert gas and other gases/liquids compatible with the sealing materials used

3. Interchangeability of magnetic heads, AC and DC

4. The solenoid valves satisfy all relevant EC Directives

OPTIONS

1. Valves can also be supplied with FPM (fluorelastomer), EPDM (ethylene-propylene) seals, diaphragm and disc. Use the appropriate optional

suffix letter for identification

2. Oxygen service, suffix NV, example: SCE238C002NVMO (Except pipe size G 1 1/4, G 1 1/2 and G 2)

3. Plug with visual indication and peak voltage suppression or with cable length of 2 m (see Solenoids, Coils & Accessories section)

Dimension
