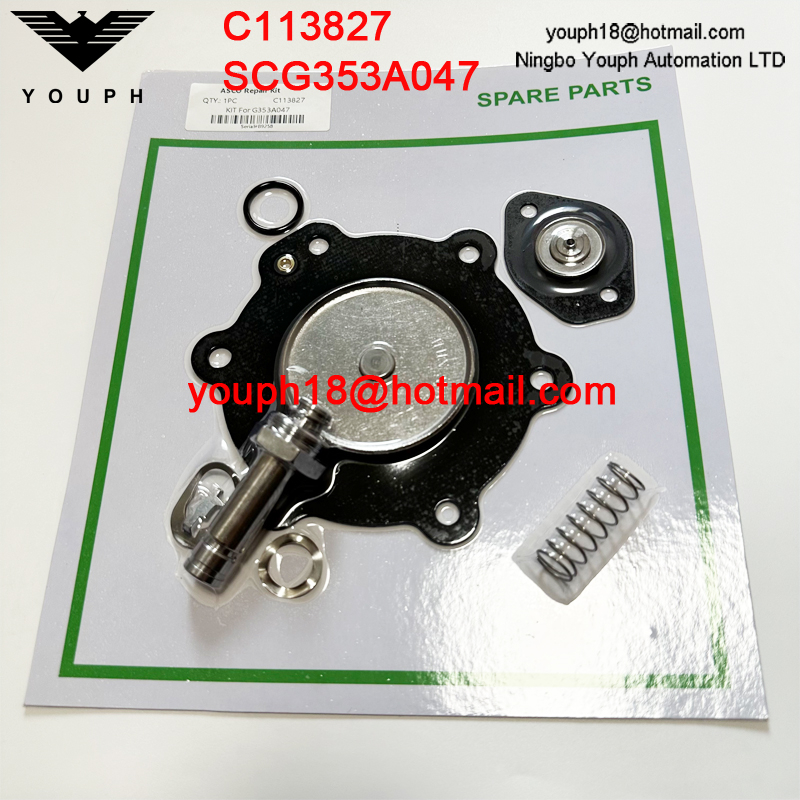

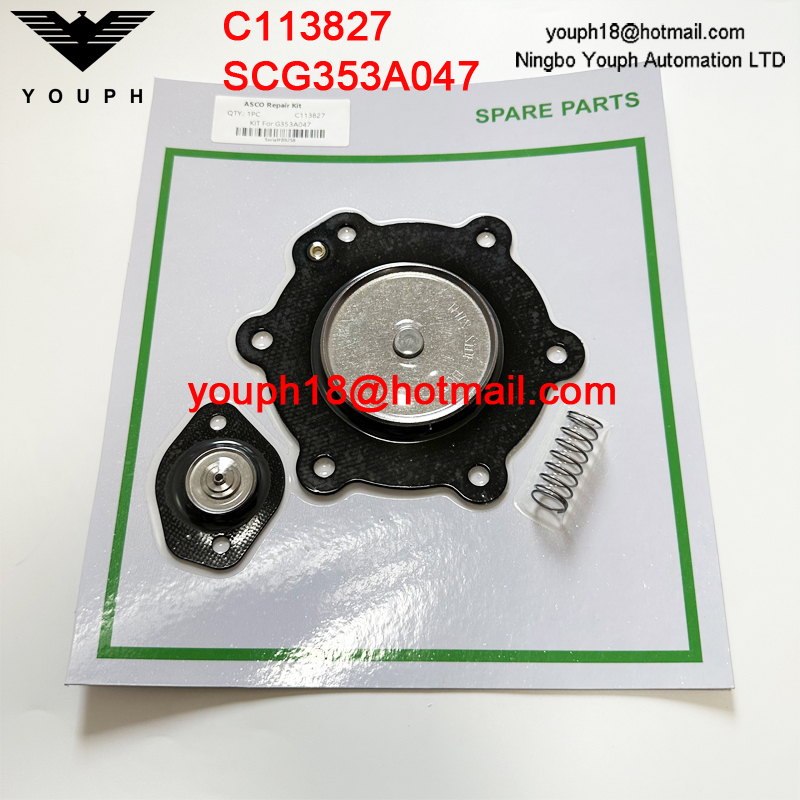

ASCO C113827 SCG353A047 1-1/2" Pulse Valves Nitrile Diaphragm Repair Kit

ASCO C113827 SCG353A047 1-1/2" Pulse Valves Nitrile Diaphragm Repair Kit

FEATURES

1. The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation

2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

3. The design with integral compression fttings will facilitate installation because there is no need for threaded piping

4. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

5. Integral pilot operated valves satisfy all relevant EC directives

CONSTRUCTION

Body: Aluminium

Core tube: Stainless steel

Core and plugnut: Stainless steel

Core spring: Stainless steel

Sealings & disc: NBR (nitrile / buna-n)

Diaphragm: Nitrile

Shading coil: Copper

Coil insulation class: F

Connector: Spade plug (cable Ø 6 - 10 mm)

Connector specification: ISO 4400

Electrical safety: IEC 335

Options

1. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE 10

2. Explosionproof solenoids for hazardous locations according to “ATEX” and national standards

3. Explosionproof and watertight solenoids according to “NEMA” standards

4. Compliance with “UL” standards

5. Plug with visual indication and/or peak voltage suppression

6. Electronic timer

7. Valves can also be supplied with FPM (fluorelastomer / viton) diaphragm and sealings. Use the appropriate optional suffix letter for identification

Installation

1. The valves can be mounted in any position without affecting operation

2. Pipe connection identifier is: G = G (ISO 228/1) or compression fitting

3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube

4. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping when using compression fittings

5. Other pipe threads are available on request

6. Installation/maintenance instructions are included with each valve

7. Spare Parts Kit and replacement coils are available

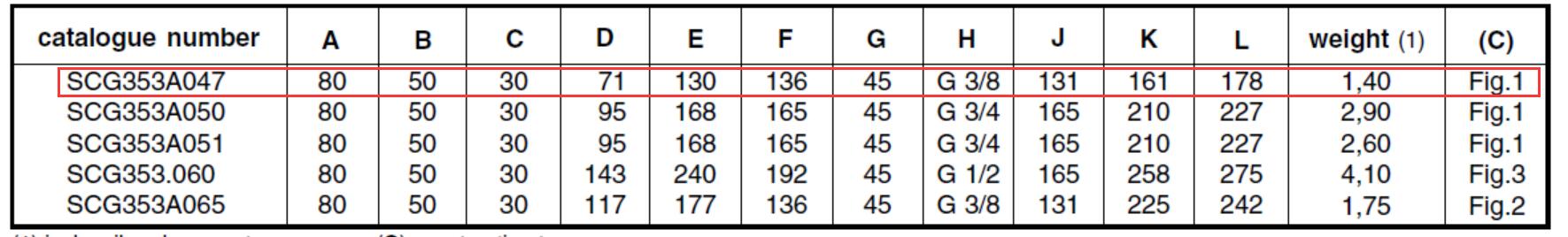

Drawing
