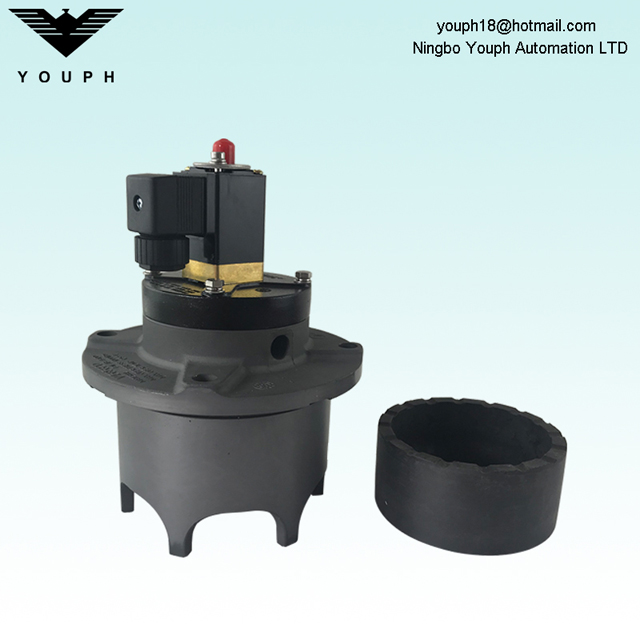

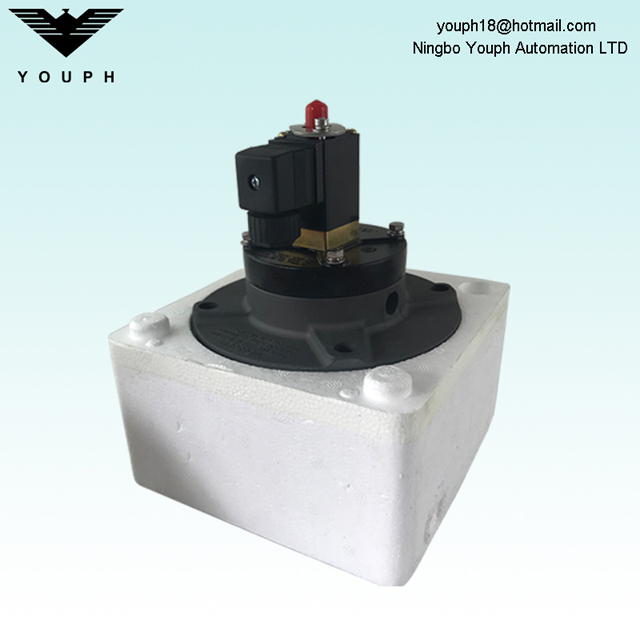

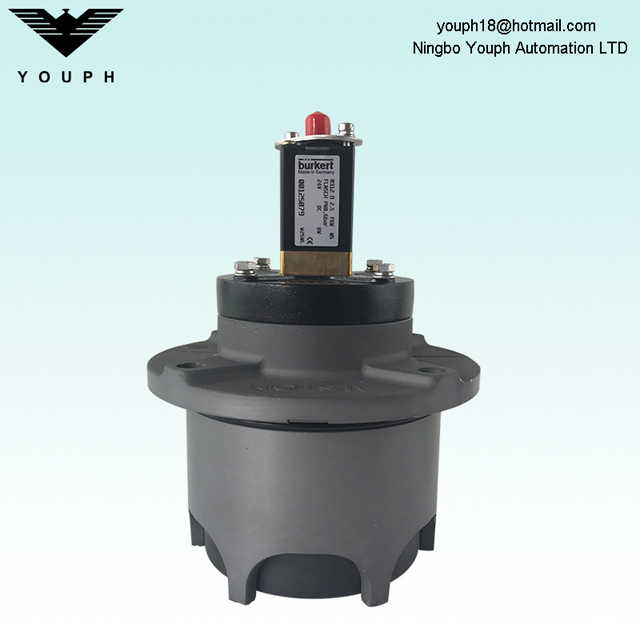

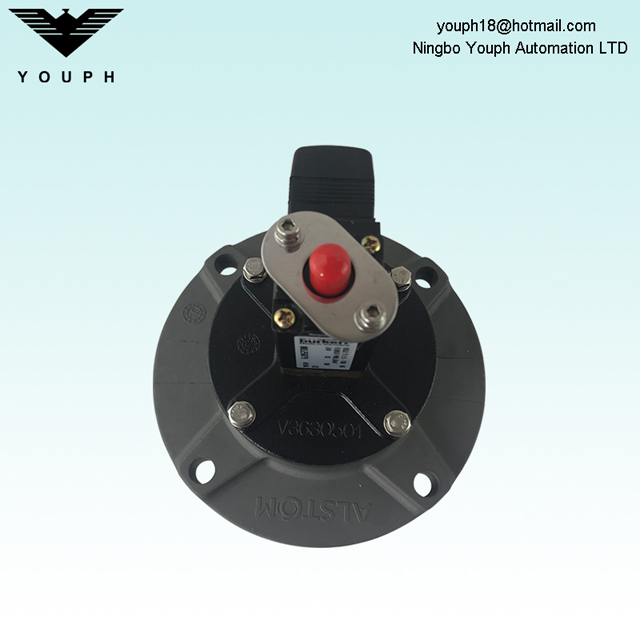

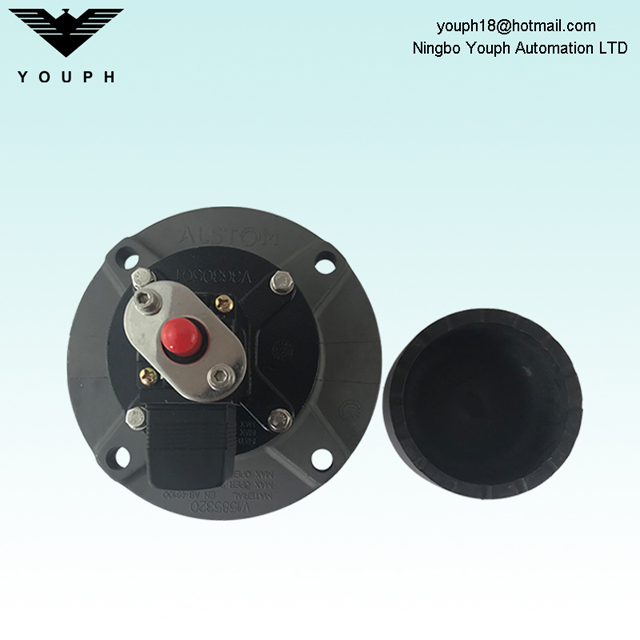

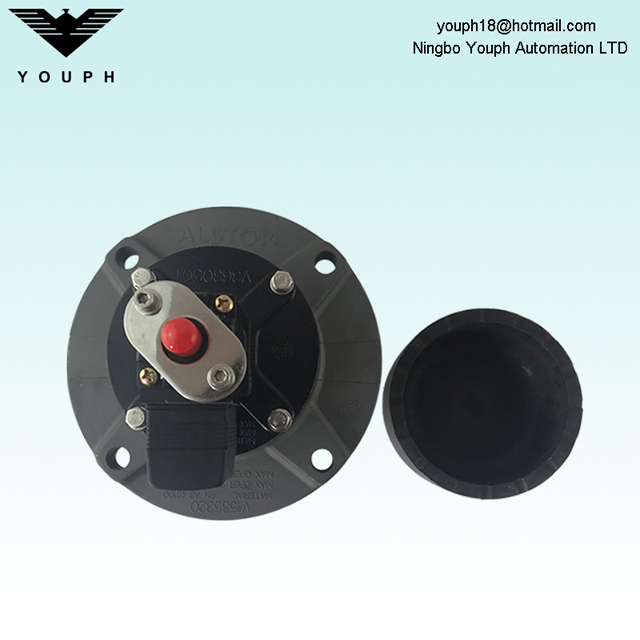

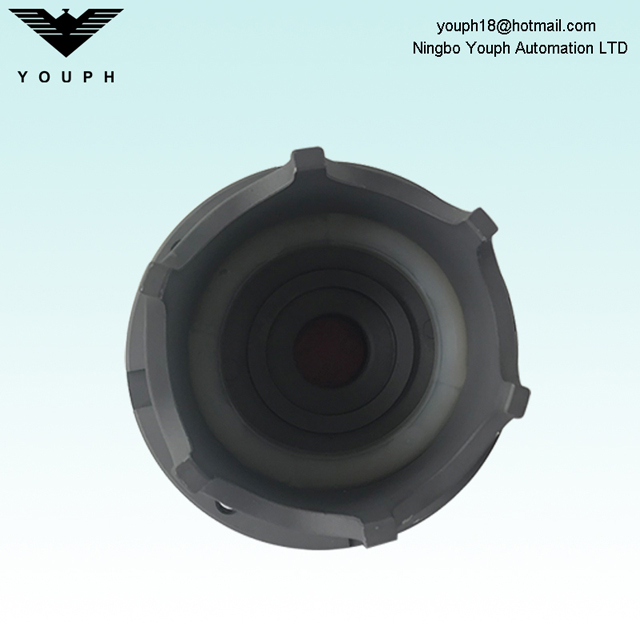

ALSTOM OPTIPOW 105 V1617803-0100 V1617803-0500 compact pulse valve

ALSTOM OPTIPOW 105

The new compact piston type pulse cleaning valve is mainly used for cleaning without dust and is installed on the round drum. The advantages are mainly reflected in several aspects: high efficiency: OPTIPOW The opening time of the pulse valve is rapid, so the pressure loss of the shock wave is very small, and the optimum air flow can be selected according to the different process because of the easy control of the opening sequence.

ALSTOM piston type pulse valve OPTIPOW

Piston diameter 105135mm

Number of filter bags: 30

Length of filter bag: 10M

OPTIPOW 105 (24 VDC ) V1617803-0100 [1]

OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200 [1]

OPTIPOW 105 (110V, 50 Hz) V1617803-0300 [1]

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400 [1]

OPTIPOW 105 (220V, 50 Hz) V1617803-0500 [1]

OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600 [1]

OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800 -

Coupling set V3592382-0000 -

Membrane V4549902-0100 (2)

O-Ring (Fluor rubber 64,5 x 3) 8003-5573 (3)

O-Ring (Nitril 70SH 64,5 x 3) 2136-1422 (3)

O-Ring (114,5 x 3) 2136-1435 (4)

Pilot cover V3630501-0100 (5)

Plate V3630524-0100 (6)

Plunger V3630527-0100 (7)

Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173 -

Rubber disc V3630530-0100 (8)

Rubber disc V3640661-0100 (8)

Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495 -

Solenoid valve (24 V DC) V3611471-0100 (9)

Solenoid valve (100 V, 60 Hz) V3611471-0201 (9)

Solenoid valve (110 V, 50 Hz) V3611471-0300 (9)

Solenoid valve (110 V, 60 Hz) V3611471-0200 (9)

Solenoid valve (120 V, 60 Hz) V3611471-0400 (9)

Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200 (9)

Solenoid valve (230 V, 50 Hz) V3611471-0500 (9)
